Problem finding roots

Question

I am trying to obtain numerically the roots of a function, but Mathematica is not able to obtain them. I used NSolve, FindRoot and even the custom Jens' findAllRoots function, but none of them work. Any solution? The code that I used is the following:

ClearAll[ff, f, FF, F, kb, T, TL, TR, m, mr, ml, V]
ff[e_, m_?NumberQ, t_?NumberQ] := 1/(1 + Exp[(e - m)/t])(temperature is expressed in units of T/Subscript[k, B])
tt[e_, e0_?NumberQ, w_?NumberQ] := 1/(1 + Exp[-(e - e0)/w])(transmission probability)
e0 = 0;
w = .3;
ml = .4;
mr = -.4;
tl = 1;
tr = 1;
kk[e_] = D[tt[e, e0, w]*(ff[e, ml, tl] - ff[e, ml, tl]^2 +
                         ff[e, mr, tr] - ff[e, mr, tr]^2), e];
NSolve[kk[e]==0,e]
FindRoot[kk[e],{e,0}]
findAllRoots[kk[e], {e, -2, 5}, "ShowPlot" -> False]

The outputs show convergence problems. Thanks for your help.

FindRoot[kk[e], {e, 1}] (* {e -> 0.694818} *) Plotting ff[e] helps to find a starting value. — LouisB, Jan 21 '21 at 21:30
NSolve[kk[e] == 0, e, Reals] (* {e -> 0.694818} *) also works. — LouisB, Jan 21 '21 at 21:37
Restricting the arguments of ff and tt to being numbers is unnecessary since these functions do not use numeric techniques. However, if it were necessary to restrict their arguments, NumericQ should be used rather than NumberQ. NumberQ returns False for symbolic numbers such as Pi or E. — Bob Hanlon, Jan 21 '21 at 22:02
NSolve[kk[e] == 0 && -2 < e < 5, e], using the limits in your findAllRoots, also works. — Michael E2, Jan 21 '21 at 23:47
Thanks for all your answers. All your solutions work nicely. But I cannot understand why the range inside NSolve must be specified (or I have to indicate that the solution is real), if the function is a well-behaved variable. The same occurs with FindRoot. I knew that the zero was located between 0 and 1, and for that reason I started at 0. Why does 1 work, but 0 doesn't? Nevertheless, I appreciate all your help. — V. Arjona, Jan 22 '21 at 09:29
@V.Arjona - "NSolve deals primarily with linear and polynomial equations." Your problem is neither and Mathematica generally assumes that all variables can be complex. In this case it needs to be told that the variable is real, either explicitly by specifying the domain or implicitly by using the variable in an inequality. The performance of FindRoot is always highly dependent on the starting value. — Bob Hanlon, Jan 22 '21 at 16:10
There are methods for determining all roots of a transcendental equation over a bounded interval provided there are finitely many roots (and that the equation behaves numerically well). It's one of the methods NSolve can try, but only if you specify a bounded interval. BTW, no one has mentioned it but NSolve[kk[e] == 0, e] works fine in V12.2 and returns several infinite families of roots in the complex plane. — Michael E2, Jan 28 '21 at 18:51

cvgmt · Accepted Answer · 2021-01-22T09:45:56.957

Use the transformation $$e \to \log s$$ we can relatively easy to plot the figure. And I guess that only one root around $s=2$. ( The MeshFunctions -> (#2 &) and Mesh->{{0}} can also locate the root, but I don't how to extract the root from the FullForm of the plot)

ff[e_, m_, t_] :=
 1/(1 + Exp[(e - m)/
      t])(*temperature is expressed in units of T/Subscript[k,B]*)
tt[e_, e0_, w_] := 1/(1 + Exp[-(e - e0)/w])(transmission probability)
e0 = 0;
w = .3;
ml = .4;
mr = -.4;
tl = 1;
tr = 1;
kk[e_] = D[
   tt[e, e0,
     w]*(ff[e, ml, tl] - ff[e, ml, tl]^2 + ff[e, mr, tr] -
      ff[e, mr, tr]^2), e];
g[s_] := (kk[e] /. e -> Log[s]);

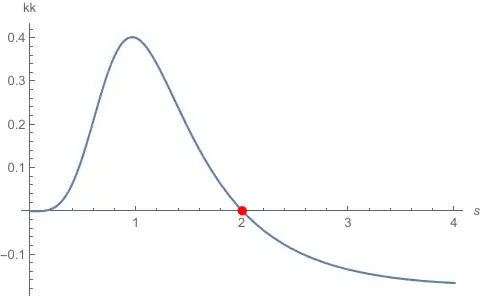

Plot[g[s], {s, 0, 4}, MeshFunctions -> (#2 &),
 MeshStyle -> {PointSize[Large], Red}, Mesh -> {{0}},
 AxesLabel -> {s, kk}, Method -> {"AxesInFront" -> False}]
FindRoot[g[s], {s, 2}]
Log[s] /. %

{s -> 2.00334}

0.694818

Edit

We can also do this directly by NMinimize or NMaximize to find a root.

Plot[kk[e], {e, -10, 10}, MeshFunctions -> (#2 &),
 MeshStyle -> {PointSize[Large], Red}, Mesh -> {{0}},
 AxesLabel -> {e, kk}, Method -> {"AxesInFront" -> False}]
NMinimize[{kk[e]^2, e > 0}, e]
NMinimize[{0, kk[e] == 0, e > 0}, e]

{1.49378*10^-17, {e -> 0.694818}}

{0., {e -> 0.694818}}

Thanks for your answer, this solution solves the problem. But why did I have those problems using the standard methods of mathematica? Why does it necessary to use this trick? — V. Arjona, Jan 22 '21 at 09:39
@V.Arjona Another way to find a root is using NMinimize, see the updated. — cvgmt, Jan 22 '21 at 09:47
