I have the following dataset:

Dataset[
 <|1 -> <|"High School" -> 96, "Graduate" -> 138, "Uneducated" -> 58,
"College" -> 53, "Unknown" -> 75, "Post-Graduate" -> 41,
"Doctorate" -> 1|>,
2 -> <|"Uneducated" -> 185, "Graduate" -> 382, "College" -> 130,
 "High School" -> 265, "Unknown" -> 163, "Post-Graduate" -> 59,
 "Doctorate" -> 57|>,
3 -> <|"High School" -> 481, "Uneducated" -> 366, "Graduate" -> 784,
"Unknown" -> 374, "Post-Graduate" -> 118, "College" -> 251,
"Doctorate" -> 98|>,
 4 -> <|"High School" -> 540, "Graduate" -> 866,
"Post-Graduate" -> 161, "Doctorate" -> 152, "Unknown" -> 454,
"College" -> 268, "Uneducated" -> 433|>,
5 -> <|"Graduate" -> 628, "Unknown" -> 293, "College" -> 224,
"Uneducated" -> 278, "Doctorate" -> 93, "High School" -> 402,
"Post-Graduate" -> 91|>,
6 -> <|"Graduate" -> 256, "High School" -> 181, "Doctorate" -> 39,
"College" -> 67, "Unknown" -> 123, "Uneducated" -> 140,
"Post-Graduate" -> 44|>,
7 -> <|"Unknown" -> 37, "Doctorate" -> 11, "High School" -> 46,
"Graduate" -> 74, "College" -> 20, "Uneducated" -> 27,
"Post-Graduate" -> 2|>, 8 -> <|"High School" -> 2|>|>
]

According to my understanding of the Dataset documentation, this should be displayed as a table where the numerical categories are the rows and the educational categories the columns. Instead it's displayed as a hierarchical data (rows of rows). Why is that?

Whelp
  • 1,715
  • 10
  • 21

1 Answers1

13

To obtain a tabular rendering for a dataset, all rows must have the same number of columns, with the same set of keys, in the same order. But in our case the last association has fewer elements than the rest and the keys are in different orders in each row. Assuming that $ds contains the dataset:

$ds[Values /* (PadRight[#, Automatic, ""] &), Keys]

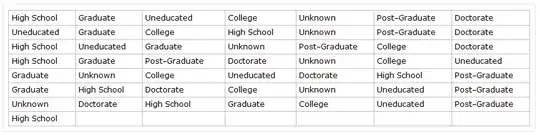

enter image description here

To get a tabular rendering, we must normalize the key order and fill in the blanks in that last row. KeyUnion will do this:

$ds[Keys[#] -> KeyUnion[Values[#]] & /* AssociationThread]

resultant table

This technique will also work when multiple rows are missing values:

$ds2 = $ds[All, RandomSample[#, RandomInteger[Length[#]]] &];
$ds2[Keys[#] -> KeyUnion[Values[#]] & /* AssociationThread]

sparser table

WReach
  • 68,832
  • 4
  • 164
  • 269
  • Interesting. I suspected that length could be an issue, so I tried ds[KeyDrop[8]] (where ds is the name I gave the dataset), but is still was not rendered as a table. What is the difference here? – Whelp Feb 05 '21 at 14:25
  • As far as I can tell, the Normal forms look the same between ds[KeyDrop[8]] and ds[KeyDrop[8]][KeyDrop[8]][Keys[#] -> KeyUnion[Values[#]] & /* AssociationThread], apart from order of keys. Can that be a factor? – Whelp Feb 05 '21 at 14:28
  • 2
    Yes, the order of the keys is important. KeyUnion will not only supply missing keys but also normalize the order. – WReach Feb 05 '21 at 14:31
  • That explains a lot! – Whelp Feb 05 '21 at 14:33
