Consider the following two Graphics3D objects that can individually be meshed using DiscretizeGraphics. The first is a cone (produced via ParametricPlot3D):

centre = {-0.7187445069014783`, 0.9892669447371633`,
   0.17750547233320435`};
tip = {0, 0, 0};
vec1 = {-0.6163296489428813`, 1.088347326141306`,
   0.04000644601351258`};
vec2 = {-0.8446234808586002`, 0.9224821483732286`,
   0.04000644601351257`};
{v1, v2, v3} = # & /@ HodgeDual[centre - tip];
e1 = Normalize[v1];
e3 = Normalize[centre - tip];
e2 = Cross[e1, e3];

coneBounded = ParametricPlot3D[ stip + (1 - s)(centre + Rc(Cos[t]e1 + Sin[t]*e2)), {t, 0, 2 [Pi]}, {s, 0, 1}, Boxed -> False, Axes -> False, Mesh -> None, RegionFunction -> Function[{x, y, z}, RegionMember[ HalfSpace[Cross[vec1 - tip, vec2 - tip], tip], {x, y, z}]], PlotStyle -> ColorData["Rainbow"][1]]; DiscretizeGraphics[%]; {%%, %}

gives:

enter image description here

The second is a pair of triangles that bounds the cone:

t1={{0.0735871, 0.0450942, 0.0800129}, {0., 0., 0.}, {-0.61633, 1.08835,
  0.0400064}};
t2={{0., 0., 0.}, {-0.0656268, -0.0560506,
  0.0800129}, {-0.844623, 0.922482, 0.0400064}};
conetriangle = Graphics3D[{Blue, Triangle[t1], Triangle[t2]}]
DiscretizeGraphics[%];
DiscretizeRegion[%,  MaxCellMeasure -> {"Area" -> 0.01}];
{%%%, %}

giving:

enter image description here

Note: The further use of DiscretizeRegion is required to counteract a bug reported here: Change mesh density of Graphics3D object made of Triangles

I can also try and combine one cone and two adjoining triangles (using Show), and the result is as expected (the discretisation considers the combined object as a piecewise union and thus discretises separately):

Show[coneBounded, conetriangle] ;
DiscretizeGraphics[%];
DiscretizeRegion[%, MaxCellMeasure -> {"Area" -> 0.01}];
{%%%, %}

giving:

enter image description here

PROBLEM 1:

How do I get such a combined Graphics3D object to mesh with a uniform MaxCellMeasure everywhere? Thus, in the above picture, the cone and triangles would have roughly the same cell size.


PROBLEM 2:

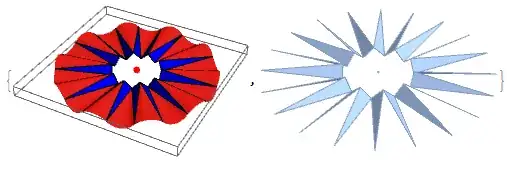

Another problem arises when I try to combine many such cones and triangles together (using a combination of Table with rotations, and then Show), and then use DiscretizeGraphics on the whole. Here, I only get the triangles back!

fullSolution;
DiscretizeGraphics[%];
{%%, %}
(*where do the cones go?*)

gives:

enter image description here

I have no idea what is going on. Any help would be appreciated.

ap21
  • 553
  • 2
  • 10

0 Answers0
