HatchFilling between two data sets in LogLog scale for Mathematica 11.1

Question

Need to fill the region between two data sets with colored hatched (\ || //) lines in LogLog scale. I use Mathematica 11.1. Apparently HatchFilling nor PatternFilling are available.

Answer 1

ClearAll[addHatchFilling]
addHatchFilling[meshfunctions_: Automatic, meshstyle_: Automatic,
   mesh_: Automatic, meshshading_: Automatic] :=
  ReplaceAll[p_Polygon :> {p,
    First[RegionPlot[DiscretizeRegion[p],
     MeshFunctions -> (meshfunctions /. Automatic -> {# + #2 &}),
     MeshStyle -> (meshstyle /. Automatic -> Directive[Thick, Opacity[1], White]),
     Mesh -> (mesh /. Automatic -> 40),
     MeshShading -> (meshshading /. Automatic -> None)]]}] @* Normal;

Examples:

{list1, list2} = {Transpose[{Range @ 20, Range @ 20}],
   Transpose[{Range @ 20, Sqrt @ Range @ 20}]};
llp = ListLogLogPlot[{list1, list2}, Joined -> True,
  Filling -> {1 -> {2}}, ImageSize -> 400];

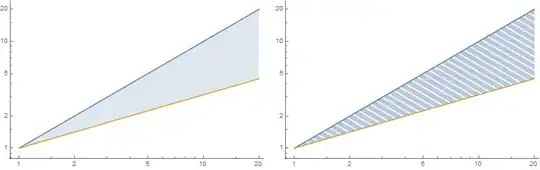

Row[{llp, addHatchFilling[] @ llp}, Spacer[10]]

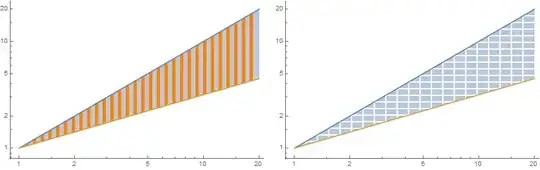

Row[{addHatchFilling[{# &},
    Directive[Opacity[1], CapForm["Butt"], AbsoluteThickness[5], Orange], 30]@llp,
  addHatchFilling[{# &, #2 &}, Automatic, {20, 20}] @ llp}, Spacer[10]]

Row[{addHatchFilling[{#2 &},
    Directive[Opacity[1], CapForm["Butt"], AbsoluteThickness[2], Red],
    20,
    {Opacity[1, Cyan], Opacity[1, Yellow]}] @ llp,
  addHatchFilling[{# + #2 &, #2 - # &},
    Automatic,
    {20, 10},
    {{Opacity[1, Red], None}, {None, Opacity[1, Yellow]}}] @ llp},
  Spacer[10]]

$Version

 "11.3.0 for Microsoft Windows (64-bit) (March 7, 2018)"

See also: Generating hatched filling using Region functionality
