Use custom ticks on FrameTicks on LogLogPlot but preserving the log tick marks

Question

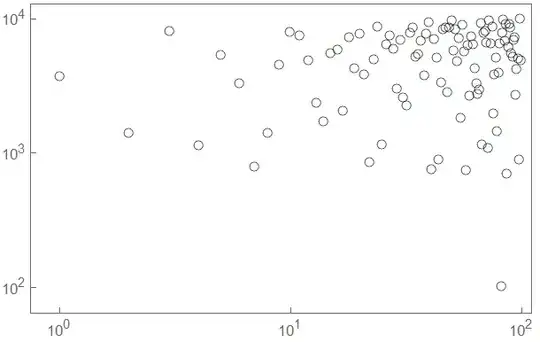

I am wondering if there is a way to use custom ticks on FrameTicks but keep the tick "line marks" for the LogLog plot or LogLinear plot. This is the original plot:

I want to switch the tick into the following, but keep the tick "line marks" for the log axis. Here the tick "line marks" disappear.

The following code is used:

plist = Table[RandomReal[{0, 10000}], 100];
myTicks = Table[{10^i, Superscript[10, i]}, {i, -20, 15}];
(* without ticks *)
ListLogLogPlot[plist, Frame -> True,
 PlotRange -> {All, All}, PlotStyle -> {Thick, Black},
 PlotMarkers -> [EmptyCircle]
 ]
(* with ticks *)
ListLogLogPlot[plist, Frame -> True,
 PlotRange -> {All, All}, PlotStyle -> {Thick, Black},
 PlotMarkers -> [EmptyCircle],
  FrameTicks -> {{myTicks, None},{myTicks, None}}
 ]

score 7 · Accepted Answer · answered Mar 18 '21 at 08:55

The list of tick marks can be in any order, so all we need to do is append the unlabeled tick marks to the existing list.

labeledTicks = Table[{10^i, Superscript[10, i]}, {i, -20, 15}];

The unlabeled ticks can be generated by multiplying each of the labeled ones by the integers 2 through 9. Strictly speaking, the unlabeled ones have Null as their labels.

unlabeledTicks = Flatten[Table[{k*j, Null},
                     {k, 2, 9}, {j, labeledTicks[[All, 1]]}], 1];

Then

myTicks = Join[labeledTicks, unlabeledTicks];
(with ticks)
ListLogLogPlot[plist, Frame -> True,
    PlotRange -> {All, All}, PlotStyle -> {Thick, Black},
    PlotMarkers -> [EmptyCircle],
    FrameTicks -> {{myTicks, None}, {myTicks, None}}]

This is so clever! Thank you so much!! – fdjutant Mar 22 '21 at 20:09 — fdjutant, Mar 22 '21 at 20:09
This is so great! Thank you, Solved my problem spot on! – yoav Dec 15 '21 at 15:42 — yoav, Dec 15 '21 at 15:42
