RegionPlot3D over non-rectangular range

Question

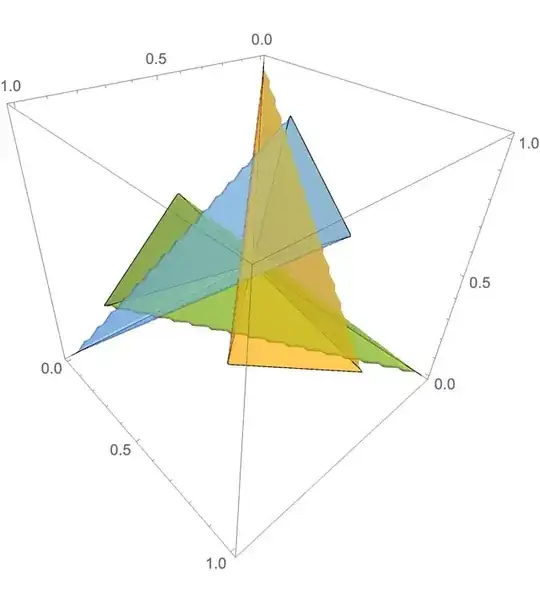

I want to make a RegionPlot3D only in the range x + y + z < 1. The following works, but is slow and poor quality.

ρ12 = ρ23 = ρ31 = 0.4;
a12 = a23 = a31 = 2;
RegionPlot3D[{
  1/ρ12 > a12 x/y > ρ12 && x + y + z < 1,
  1/ρ23 > a23 y/z > ρ23 && x + y + z < 1,
  1/ρ31 > a31 z/x > ρ31 && x + y + z < 1
  }, {x, 10^-10, 1}, {y, 10^-10, 1}, {z, 10^-10, 1},
 PlotPoints -> 101, PlotStyle -> Opacity[0.5], Mesh -> None, ViewPoint -> {1, 1, 1}]

Any ideas on how to make this sharper looking (highest priority) and faster (lower priority)? I'm not wedded to using RegionPlot3D if there are approaches using different functions.

Bonus question: can I make the faces towards the viewer a different style?

You could try DiscretizeRegion with an ImplicitRegion to give finer-grained control over how the regions are meshed, but this keeps crashing my 12.1 kernel — b3m2a1, Mar 31 '21 at 23:11
Are these the only types of regions you'll want to plot? If so, it might be worth solving for the appropriate coordinates, and building them as Polyhedra or directly as MeshRegions. — thorimur, Mar 31 '21 at 23:18
You could also try using Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}] to represent your target region and use RegionIntersection with that. Or you could use RegionBoundary and apply your transformations to the boundary and see what pops out — b3m2a1, Mar 31 '21 at 23:21
Region stuff seems buggy on my copy of Mathematica, but yet another idea is to use TransformedRegion on Tetrahedron and take the intersection with your boundary conditions and then invert the transformation — b3m2a1, Mar 31 '21 at 23:31

score 1 · Answer 1 · answered Apr 01 '21 at 01:22

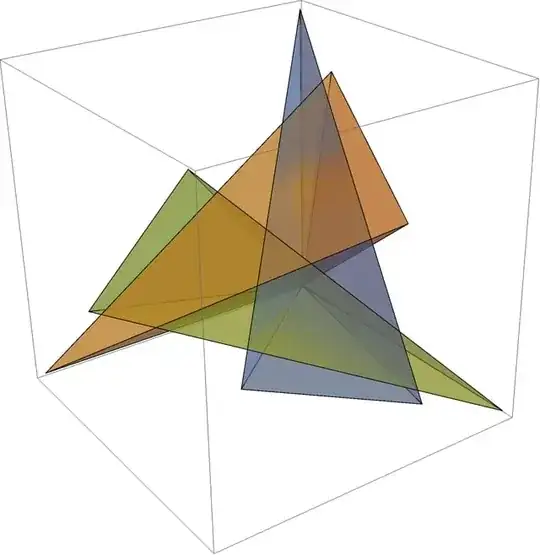

Putting together some hints from @b3m2a1 and @thorimur, this works great (although not quite as automated as RegionPlot3D):

simplex3 = Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];
Graphics3D[{
  {Opacity[0.5], ColorData[97, 1],
   RegionIntersection[simplex3,
    Prism[{{0, 0, 0}, {1, a12/ρ12, 0}, {1, a12 ρ12, 0}, {0, 0, 1}, {1, a12/ρ12, 1}, {1, a12 ρ12, 1}}]]},
  {Opacity[0.5], ColorData[97, 2],
   RegionIntersection[simplex3,
    Prism[{{0, 0, 0}, {0, 1, a23/ρ23}, {0, 1, a23 ρ23}, {1, 0, 0}, {1, 1, a23/ρ23}, {1, 1, a23 ρ23}}]]},
  {Opacity[0.5], ColorData[97, 3],
   RegionIntersection[simplex3,
    Prism[{{0, 0, 0}, {a31/ρ31, 0, 1}, {a31 ρ31, 0, 1}, {0, 1, 0}, {a31/ρ31, 1, 1}, {a31 ρ31, 1, 1}}]]}
  }]
