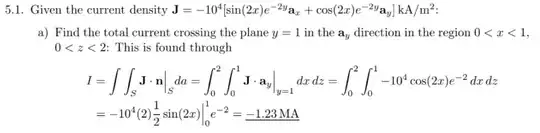

I'm struggling a little bit trying to understand how to address this problem, I would like to do this in mathematica: problem is just that I don't know how to do the dot product between $\mathbf{J}$ and $\mathbf{a}_y$ because I don't know how to define the unit vector $\mathbf{a}_y$, is it possible to do this in mathematica? thanks in advance!

xzczd
  • 65,995
  • 9
  • 163
  • 468
diegosanchez
  • 13
  • 2

1 Answers1

1

As shown by LouisB in the comment, use coordinate vector is the standard way to go, nevertheless, it's possible to implement the symbolic coordinate bases as follows:

Clear[Subscript]
Subscript /: Subscript[a, x_]^2 = 1;
Subscript /: Subscript[a, x_] Subscript[a, y_] /; x =!= y = 0;
Subscript[a_, b : x | y | z] := Subscript[a, ToString@b]

J = -10^4  (Subscript[a, x] Sin[2 x] E^(-2 y) + Subscript[a, y] Cos[2 x] E^(-2 y)) 10^3
Integrate[J Subscript[a, y] /. y -> 1, {z, 0, 2}, {x, 0, 1}] // N

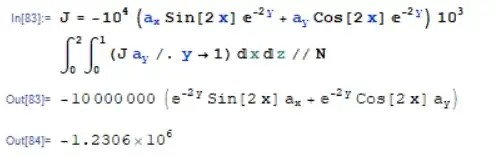

enter image description here

Or more rigorously:

Clear[Subscript]
Subscript /: Subscript[a, x_].Subscript[a, x_] = 1;
Subscript /: Subscript[a, x_].Subscript[a, y_] = 0;
Subscript[a_, b : x | y | z] := Subscript[a, ToString@b]

J = -10^4 (Subscript[a, x] Sin[2 x] E^(-2 y) + Subscript[a, y] Cos[2 x] E^(-2 y)) 10^3
Integrate[J.Subscript[a, y] /. y -> 1 // TensorExpand, {z, 0, 2}, {x, 0, 1}] // N

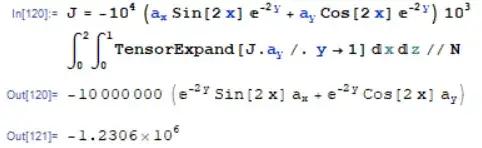

enter image description here

xzczd
  • 65,995
  • 9
  • 163
  • 468
  • Thank you very much for your help @xzczd, in your code there are some things I still don't understand because I'm new using Mathematica but I will research and try to learn more, thank you for helping me out! – diegosanchez May 10 '21 at 22:50
