Can I dash only the invisible edges of dodecahedron?

Question

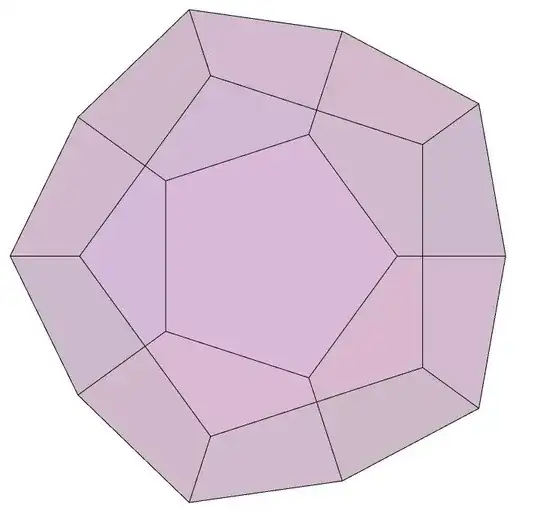

I'm new to Mathematica and trying to draw a dodecahedron. Here's my code and output:

Show[Graphics3D[{Opacity[0.15], Purple,
   Dodecahedron[0.72`]}, {Background -> None, ViewPoint -> Above,
   Boxed -> False}]]

Is there a way I can dash only the invisible edges of this solid? I noticed some examples have shown that we could make all edges have the same property, but I wonder if I could only dash part of them.

Update: I used the function Graphics3DSketch to do that:

Graphics3DSketch[
 Graphics3D[{PolyhedronData["Dodecahedron", "Polygons"],
   PolyhedronData["Dodecahedron", "Lines"]}, Boxed -> False]
 , ViewPoint -> Above
 ]

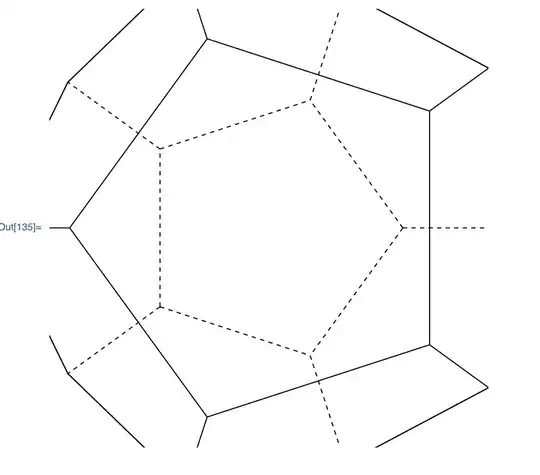

Looks like it works, but the graph is out of the range. How can I adjust that? Also, is there a way I can rotate the view clockwise by a certain amount? Thanks for the help:)

Possible duplicate: https://mathematica.stackexchange.com/questions/45410/sketch-type-graphics-with-transparency-and-dashed-hidden-lines/45435#45435. Related: https://mathematica.stackexchange.com/a/21079 — Michael E2, Aug 07 '21 at 02:19
@Michael E2 Thanks for the comment, I just updated my question:) — IGY, Aug 07 '21 at 04:48

score 8 · Accepted Answer · answered Aug 07 '21 at 05:16

There seems to be no automatic way to get the image range set right, so I used ViewAngle. You can rotate the orientation of the view using ViewVertical.

foo = ResourceFunction["Graphics3DSketch"];
amount = 37.5 Degree;
ggg = foo[
   Graphics3D[{PolyhedronData["Dodecahedron", "Polygons"],
     PolyhedronData["Dodecahedron", "Lines"]}, Boxed -> False],
   ViewPoint -> Above, ViewAngle -> 40 Degree,
   ViewVertical -> {Cos[amount], Sin[amount], 0}];
ggg
