Mathematica 9.0.1, Linux. I try to save a plot as a pdf. I tried four different options. In each case some errors appeared as blank space

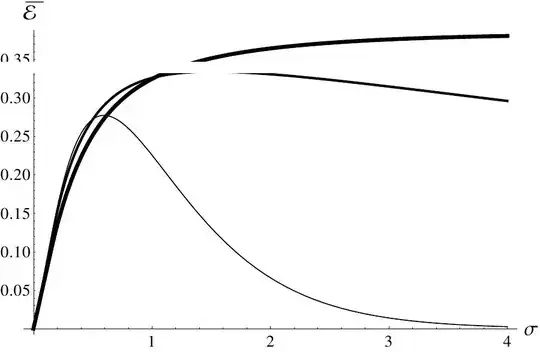

image 1

( http://yadi.sk/d/h1koyDci4z3rc ). I also tried to save as eps. Another problem appeared -- there is no half letter on the Labels:

image 2

(see here http://yadi.sk/d/OBRDmp3z4z42U ). The same figures are saved very well in Mathematica 7 without an error. Is it possible to solve this problem?

m_goldberg
  • 107,779
  • 16
  • 103
  • 257
nail
  • 189
  • 7
  • Convert to bmp and png works well, without errors. – nail May 19 '13 at 18:13
  • 2
    I've added your images. Could you please include the code to reproduce the plots? See the help page for how to format code. – Jens May 19 '13 at 18:30
  • The same problem appears for simple graphics like this: Plot[{ x^2, x^5}, {x, 0, 3}, AxesLabel -> {Style["B", FontSize -> 25], Style["A", Italic, FontSize -> 25]}, TicksStyle -> Directive[Black, 20], PlotStyle -> {{Black, Thickness[0.002]}, {Black, Thickness[0.005]}}] – nail May 19 '13 at 18:46
  • I tried it on a Linux server with version 8 and could not reproduce the problem. The output of Export["p.pdf",%] looks identical to that in the notebook. I don't have version 9 on Linux, so I can't check any further, unfortunately. – Jens May 19 '13 at 20:08
  • 1
    On Linux v9, Export["p.pdf",%] works for the simple $x^2$ and $x^5$ graphic. Left-clicking the graphic, then right-clicking Save Graphic As... also works. Clicking the cell bracket of the graphic, then clicking File > Save Selection As fails, producing a blank white *.pdf file. – KennyColnago May 19 '13 at 22:15
  • @Jens: How did you get fonts to work in PDF export? – Mechanical snail May 20 '13 at 00:30
  • @Mechanicalsnail It worked out of the box. The linux server isn't under my control, so I'm not sure about the font related details of the Mathematica installation. – Jens May 20 '13 at 03:47
  • @Mechanicalsnail Could you explain me where are these fonts to work in PDF export? In menu "Save Selection As" there is no point about fonts. – nail May 20 '13 at 04:12
  • @KennyColnago Did you use a specific options when you export to pdf? I used Export["p.pdf",%] as you, but obtain the same result - blank horizontal stripe. The problem appears only with pdf and eps formats, it may be indeed connects with some fonts. – nail May 20 '13 at 04:26
  • @nail I did not use any specific options when exporting to pdf. – KennyColnago May 27 '13 at 16:16
  • I solved this problem by using http://mathematica.stackexchange.com/questions/15929/graphics-exported-from-mathematica-9-are-very-large-because-even-standard-fonts . In option inspector I set EmbedExternalFonts -> False and EmbedStandardPostScriptFonts -> False. In this case left click and save as works well, but Export["file.pdf",%] works bad. – nail May 27 '13 at 18:06
