One valid way is given at the end.
I thought CompleteGraph[{2, 3, 3, 1}] would create the representation that I wanted but it creates too many edges (from the first layer to the third layer, etc). Instead of that, this works:
q = {2, 3, 3, 1};
qf = MapThread[
Range[#1, #2] &, {Prepend[Most[Accumulate[q]], 0] + 1,
Accumulate[q]}];
qp = Flatten@
Map[UndirectedEdge @@@ # &][Tuples /@ Partition[qf, 2, 1]];

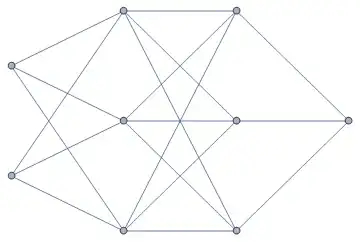

Graph[qp]
But it only works for very simple layers. For example,
q = {2, 3, 5, 8, 1};
...
creates a graph that is clustered rather than layered. One could give options to Graph, such as
Graph[qp,
GraphLayout -> {"LayeredDigraphEmbedding", "Orientation" -> Left}]
but for some reason, one of the nodes from the two of the first layer is arranged so as to be not in the first layer. So I don't know how to specify the method for specific GraphLayouts.
I could also not guide "MultipartiteEmbedding" into the correct behavior
Graph[qp,
GraphLayout -> {"MultipartiteEmbedding", "VertexPartition" -> q}
because the layout confuses the layers due to the given ordering of qp (places a node from the first layer on the second, and a node from the second on the first).
This works:
q = {2, 3, 5, 8, 1};
qf = MapThread[
Range[#1 + 1, #2] &, {Prepend[Most[Accumulate[q]], 0],
Accumulate[q]}];
qp = Flatten@
Map[UndirectedEdge @@@ # &][Tuples /@ Partition[qf, 2, 1]];
qc = GraphEmbedding[CompleteGraph[q]];
Graph[qp, VertexCoordinates -> Map[# -> qc[[#]] &, Range[Total[q]]]]
I started playing around with neural nets so I wanted a clean representation of one to have as a map on the side.
Is there a function or option specifically for this? Are there other ways of doing this? Thanks for the tips.
