How to draw the dashed line automatic behind of a pyramid?

Question

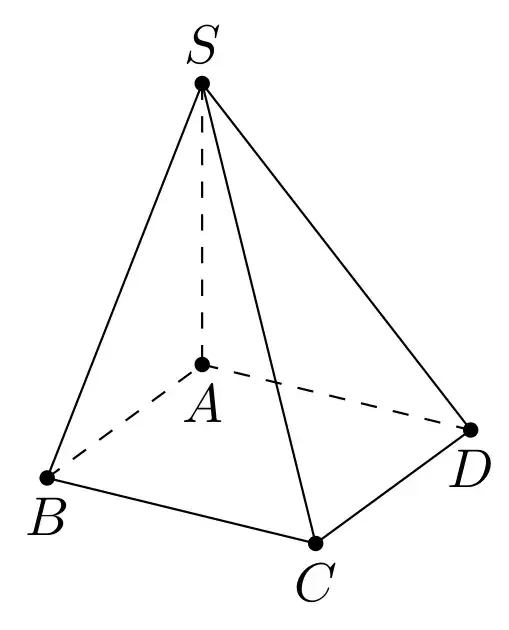

I am trying to draw this pyramid like this

I tried

\[ScriptCapitalR] =
  Pyramid[{{0, 0, 0}, {2, 0, 0}, {2, 2, 0}, {0, 2, 0}, {0, 0, 2}}];
Graphics3D[{EdgeForm[{Thick, Blue}],
  FaceForm[{Pink, Opacity[0.2]}], \[ScriptCapitalR]}
 , Boxed -> False]

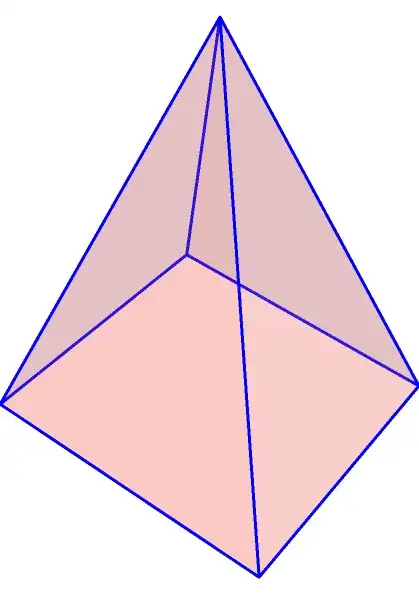

I got

How to draw the dashed line automatic behind of a pyramid? like this Dashed mesh behind 3D object

kglr · Accepted Answer · 2021-10-14T23:28:19.287

12

For a fixed viewpoint, you can use BoundaryDiscretizeRegion with the option MeshCellStyle to style individual line primitives:

pyramid = Pyramid[{{0, 0, 0}, {2, 0, 0}, {2, 2, 0}, {0, 2, 0}, {0, 0, 2}}];
Show[BoundaryDiscretizeRegion[pyramid ,
  MaxCellMeasure -> Infinity,
  PlotTheme -> "Lines",
  MeshCellStyle -> {{1, 4|5|8} -> Directive[Black, Dashing[Large]], {1, _} -> Black},
  MeshCellLabel -> MapThread[{0, #} -> Placed[Style[#2, 16, Bold], #3] &,
    {Range @ 5, {"C", "D", " B", "A ", "S"}, {Below, Below, After, Before, Above}}],
  ViewPoint -> {.1, -3, 1}]] /. {_Line} :> {}

Update:

We can use a slight modification of the function DashedGraphics3D from this answer by Silvia to get a 2D image of Graphics3D object with lines behind the front surface rendered as dashed lines. The only changes I made in the function are to add Pyramid in the list of 3D primitives,

face3DPrimitives = {Pyramid, Cuboid, Cone, Cylinder, Sphere, Tube,
  BSplineSurface}

and replace Dashed with Dashing[Large]:

Examples:

SeedRandom[7]
Grid[Transpose @ Table[
  {Graphics3D[{FaceForm[Directive[Opacity@.5, LightBlue]],
      EdgeForm[Thick], pyramid},
     Boxed -> False, ViewPoint -> v,
     ImageSize -> 400, SphericalRegion -> True,
     PlotLabel -> PromptForm[Style["view point", 16], Style[v, 16]]],
   Show[DashedGraphics3D[Graphics3D[pyramid, Boxed -> False],

      ViewPoint -> v, ImagePadding -> 120], ImageSize -> 300]},
   {v, Round[ RandomReal[{-2, 3}, {4, 3}], .01]}],
  Spacings -> {1, 1}]

edited Oct 14 '21 at 23:28

answered Oct 14 '21 at 13:25

kglr

394,356
18
477
896

But if ViewPoint -> {8, 3, 7} ? – cvgmt Oct 14 '21 at 13:34
@cvgmt, you need to replace 4|5|8 manually with appropriate list of indices for each spec for ViewPoint. For ViewPoint -> {8, 3, 7} the pattern 1|3|5 works. (You can use the option MeshCellLabel -> Join[Thread[ Thread[{0, Range[5]}] -> (Style[#, Bold, 16] & /@ {"C", "D", "B", "A", "S"})], {{1, All} -> "Index"}] to see the indices of line primitives.) – kglr Oct 14 '21 at 13:43
When I rotate the output of Mathematica, I get incorrect about dashed lines. How to draw the dashed line automatic like when I rotate the sphere at the link in my question? – John Paul Peter Oct 14 '21 at 14:44
1

@JohnPaulPeter, this method works for a fixed view point. (I will post an answer with a method that works for dynamically changing viewpoint.) – kglr Oct 14 '21 at 14:49
@JohnPaulPeter, please see the update. – kglr Oct 14 '21 at 19:09
@kglr Thank you very much. I do not see [this answer by Silvia] – John Paul Peter Oct 14 '21 at 23:21
@JohnPaulPeter, sorry forgot to paste the link. Added now. – kglr Oct 14 '21 at 23:29
@kglr I can not get the resullt. I copied all your code SeedRandom[7] Grid[Transpose @ Table[ {Graphics3D[{FaceForm[Directive[Opacity@.5, LightBlue]], EdgeForm[Thick], pyramid}, Boxed -> False, ViewPoint -> v, ImageSize -> 400, SphericalRegion -> True, PlotLabel -> PromptForm[Style["view point", 16], Style[v, 16]]], Show[DashedGraphics3D[Graphics3D[pyramid, Boxed -> False], ViewPoint -> v, ImagePadding -> 120], ImageSize -> 300]}, {v, Round[ RandomReal[{-2, 3}, {4, 3}], .01]}], Spacings -> {1, 1}] – John Paul Peter Oct 14 '21 at 23:57
@JohnPaulPeter, did you make the change in silvia's DashedGraphics3D code ( that is,is replace face3DPrimitives = { Cuboid, Cone, Cylinder, Sphere, Tube, BSplineSurface} with face3DPrimitives = {Pyramid, Cuboid, Cone, Cylinder, Sphere, Tube, BSplineSurface})? – kglr Oct 15 '21 at 00:04
Let us continue this discussion in chat. – John Paul Peter Oct 15 '21 at 00:23

score 7 · Answer 2 · answered Oct 14 '21 at 15:14

To make the hidden line dashed is pretty complicated. However, if you can live with hidden lines drawn only faintly, you may use the option "Opacity" like:

base = {{0, 0, 0}, {2, 0, 0}, {2, 2, 0}, {0, 2, 0}};
top = {{0, 0, 2}};
Graphics3D[{EdgeForm[Thickness[0.01]], Opacity[0.8],
  Triangle[Join[top, #]] & /@ Partition[base, 2, 1, {1, 1}]}]
