I want to type the value of matrix elements when plotting it on the topside of the bar.

Example: $$M=\left(\begin{matrix} 0.77 & 0.04 & 0.01 & 0.0\\ 0.04 & 0.81 & 0.0 & 0.0\\ 0.02 & 0.0 & 0.81 & 0.08\\ 0.0 & 0.07 & 0.04 & 0.93 \end{matrix}\right)$$

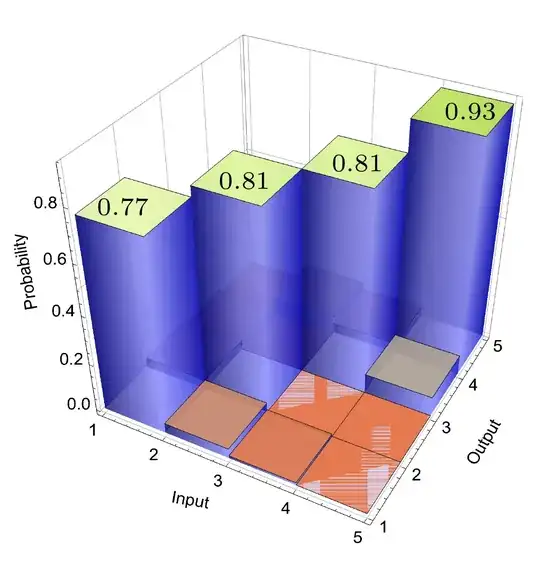

the output:

enter image description here

my code:

exp1 = ( {
   {0.77, 0.04, 0.01, 0.0},
   {0.04, 0.81, 0.0, 0.0},
   {0.02, 0.0, 0.81, 0.08},
   {0.0, 0.07, 0.04, 0.93}
  } )
data = ArrayPad[Abs[exp1], {0, 1}];
DATAAA1 =
 ListPlot3D[data, Mesh -> Full, InterpolationOrder -> 0,
  Filling -> Bottom, FillingStyle -> {Opacity[0.7]},
  ColorFunction -> "IslandColors", PlotRange -> All,
  BoxRatios -> {1, 1, 1}, DataRange -> All, ImageSize -> 600,
  PlotTheme -> "Monochrome",
  PlotStyle -> Directive[Opacity[0.9], Blue],
  AxesLabel -> {Text[Rotate["Input", -10 Degree]],
    Text[Rotate["Output", 60 Degree]],
    Text[Rotate["Probability", 100 Degree]]},
  LabelStyle -> Directive[Black, Thick, 12], Boxed -> False]

the result i have: enter image description here

Edit

There are complicated solutions that manually construct a Graphics3D object, but can there be a simple solution using standard functions?

Edit 2

I found a manual solution using the following latex code

\documentclass[]{article}
\usepackage{lipsum}
\usepackage{pgfplots}
\pgfplotsset{compat=1.15}
\usepackage[a4paper, total={17cm, 25cm}]{geometry}

\begin{document} \begin{figure}\centering \setlength{\unitlength}{0.085mm} \begin{picture}(800,250)\linethickness{0.3mm} \includegraphics[width=5cm,height=5cm]{sample.eps} \put(-490,380){\scriptsize$0.77$} \put(-350,410){\scriptsize$0.81$} \put(-220,430){\scriptsize$0.81$} \put(-90,490){\scriptsize$0.93$} \end{picture} \end{figure}

\end{document}

the output:

enter image description here

but I am still searching for an automated way on Mathematica to solve the problem.

AQFarouk
  • 341
  • 1
  • 2
  • 9
  • 2
    Similar to this. – Syed Oct 19 '21 at 10:02
  • 1
    Please provide your data. Look at the Histogram3D documentation, in particular Options/ChartLabels. There are good examples. – yarchik Oct 19 '21 at 10:46
  • I added a sample of the code. – AQFarouk Oct 19 '21 at 11:36
  • I added a manual solution using latex but an automated one is better. – AQFarouk Oct 19 '21 at 15:13
  • @Thapanio Try this rest = exp1 - DiagonalMatrix[Diagonal[exp1]]; r = Flatten[Table[n = Round[rest[[i, j]]*100]; ConstantArray[{i, j}, n] , {i, 4}, {j, 4}], 2]; d = Table[n = Round[exp1[[i, i]]*100]; ConstantArray[{i, i}, n], {i, 4}]; Histogram3D[Join[d, {r}], Automatic, "Probability", PlotRange -> All, ChartLabels -> Placed[Diagonal[exp1], Above, "Framed"], PlotTheme -> {"Marketing", "NoAxes"}] – yarchik Oct 19 '21 at 20:15
  • 1
    That is quite suitable. Thank you. – AQFarouk Oct 20 '21 at 03:33
