How to differently color the two time series using two-Y-axes

Question

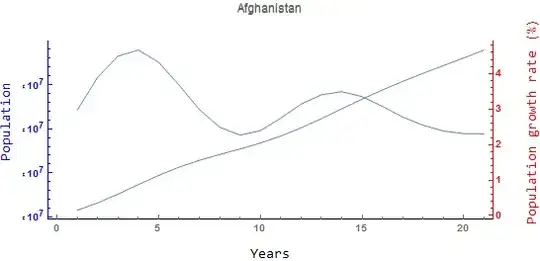

I produced the following time series ListLinePlot:

using the following Code (thanks to many of the contributors in this forum)

q1 = {{2.0779957`*^7, 2.1606992`*^7, 2.2600774`*^7, 2.3680871`*^7,
    2.4726689`*^7, 2.5654274`*^7, 2.6433058`*^7, 2.7100542`*^7,
    2.7722281`*^7, 2.8394806`*^7, 2.9185511`*^7, 3.0117411`*^7,
    3.1161378`*^7, 3.2269592`*^7, 3.3370804`*^7, 3.4413603`*^7,
    3.5383028`*^7, 3.6296111`*^7, 3.7171922`*^7, 3.8041757`*^7,
    3.8928341`*^7}};
q2 = {{2.97505722281038`, 3.90280496415438`, 4.4967187466326`,
    4.66834379545461`, 4.32155951673842`, 3.68269988149014`,
    2.9905238360968`, 2.49383039084495`, 2.26827304079294`,
    2.39697830237036`, 2.74661463795293`, 3.14310555651301`,
    3.40760003260595`, 3.49459192739625`, 3.35560233082199`,
    3.07705362914441`, 2.77803478841236`, 2.54783303994568`,
    2.38430907940751`, 2.31307334941778`, 2.30381209309418`}};
qw1 = ListLinePlot[
   q1,
   PlotLabel -> "Afghanistan",
   PlotStyle -> {Thin, Blue},
   ImagePadding -> 25,
   ImageSize -> 500,
   AspectRatio -> 0.4,
   Frame -> {{True, False}, {True, False}},
   FrameStyle -> {Directive[FontFamily -> "Helvetica", Bold],
     Directive[FontFamily -> "Helvetica", Bold, Blue], Automatic,
     Automatic}
   ];
qw2 = ListLinePlot[
   q2,
   PlotLabel -> "Afghanistan",
   PlotStyle -> {Thin, Red},
   ImagePadding -> 25,
   ImageSize -> 500,
   AspectRatio -> 0.4,
   Axes -> False,
   Frame -> {{False, True}, {False, False}},
   FrameTicks -> {{None, All}, {None, None}},
   FrameStyle -> {Automatic, Automatic, Automatic,
     Directive[FontFamily -> "Helvetica", Bold, Red]}
   ];
Labeled[
 Overlay[{qw1, qw2}],
 Style[#, 14, #2, ShowStringCharacters -> False] & @@@
  Transpose[{{Rotate["Population", 90 Degree],
     Rotate["Population growth rate (%)", 90 Degree], "Years"}, {Blue,
      Red, Black}}], {Left, Right, Bottom}
 ]

My purpose is to color the fluctuating series (population growth) with RED but I cannot find where my mistake is.

try PlotStyle -> Directive@{Thin, Blue} instead of PlotStyle ->{Thin, Blue} (Similarly, PlotStyle -> Directive@{Thin, Red} in the second plot). — kglr, Nov 08 '21 at 23:23
@kglr: When I add date=Range[2000,2020] and change the plot qw1 as qw1 = ListLinePlot[Transpose@{date, q1},...] the plot is not working. Why do you think? — Tugrul Temel, Nov 08 '21 at 23:39
There is an official "How To". And if you wait just a bit, there is a new feature coming up in V13, called multiple axis plots :-) — Domen, Nov 09 '21 at 00:06

score 5 · Accepted Answer · answered Nov 08 '21 at 23:56

5

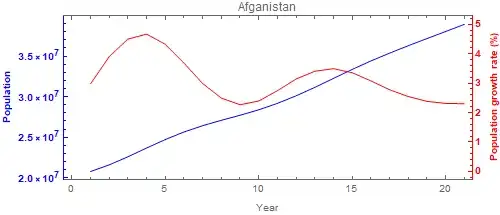

You can get the desired result using a single ListLinePlot as follows:

ListLinePlot[Join[q1, Rescale[q2,  {0, 5}, MinMax @ q1]],
 Frame -> True,
 PlotStyle -> (Directive[Thin, #] & /@ {Blue, Red}),
 FrameTicks -> {{Automatic, Charting`FindTicks[ MinMax@q1, {0, 5}]},
    {Automatic, Automatic}},
 FrameLabel -> {{"Population", "Population growth rate (%)"}, {"Year", None}},
 FrameStyle -> {{Directive[FontFamily -> "Helvetica", Bold, Blue],
    Directive[FontFamily -> "Helvetica", Bold, Red]}, {Automatic, Automatic}},
 PlotLabel -> "Afganistan",
 ImageSize -> 500,
 AspectRatio -> 0.4]

answered Nov 08 '21 at 23:56

kglr

394,356
18
477
896

Using my original code, I created a Manipulate to see for each country the two time series. It works just as expected. However, your Code above is much elegant and short, and wanted to use it in a Manipulate. Therefore, I prepared a Manipulate by simply replacing the corresponding inputs for q1 with grjdataWB[countries, var1] and for q2 with grjdataWB[countries, var2]. The arguments of grjdataWB[..] are controls. It does not work and I get an error saying HeadList and Plus at positions 1 and 2 are to be the same. – Tugrul Temel Nov 09 '21 at 01:05
1

Wouldn't {0,5} be MinMax@q2? For some cases, I have no list plot for the RED axis variable, although there are data attached to it. – Tugrul Temel Nov 09 '21 at 23:28
1

Yes. I picked {0,5} to get a picture similar to the one in your post. – kglr Nov 10 '21 at 01:27

score 4 · Answer 2 · answered Nov 09 '21 at 06:45

you can always use ResourceFunction["CombinePlots"] in such a case

ResourceFunction["CombinePlots"][
 ListLinePlot[q1, PlotLabel -> "Afganistan", ImageSize -> 500,
  AspectRatio -> 0.4, Frame -> True, PlotStyle -> Blue,
  FrameLabel -> {"Years", "Population", None, None},
  FrameStyle -> {Directive[{Blue, FontFamily -> "Helvetica", 12}],
    Directive[{Black, FontFamily -> "Helvetica", 12}]}],
 ListLinePlot[q2, PlotLabel -> "Afganistan", ImageSize -> 500,
  AspectRatio -> 0.4, Frame -> True, PlotStyle -> Red,
  FrameLabel -> {"Years", "Population growth rate (%)", None, None},
  FrameStyle -> Directive[{Red, FontFamily -> "Helvetica", 12}]],
 "AxesSides" -> "TwoY"]

Tugrul Temel · Answer 3 · 2021-11-09T01:19:27.987

I found out the reason and corrected it as follows:

q1 = grjdataWB["Afghanistan", "Population, total"] // Normal //
   Flatten;
q2 = grjdataWB["Afghanistan", "Population growth (annual %)"] //
    Normal // Flatten;
date = Range[2000, 2020];

The reason is that data comes from a Mathematica Dataset and therefore needs to be adjusted by //Normal//Flatten to get the correct plot with RED color. Although the reason is identified, I think it is better to keep this question as it shows that the data extracted from a Mathematica Dataset should be adjusted if one wants to produce the 2-Y-axes plot as shown.
