I would like to solve the PDE $\frac{\partial u}{\partial t}=(1-x)\frac{\partial u}{\partial x}$, in the interval $[0,1]$, with initial condition $u(0,x)=e^{-218(\frac{-2}{3}-ln(1-x))^2}$, by manually implementing a pseudospectral method with Chebyshev nodes for spatial discretization and a Taylor method for time integration. The first ListPlot appears in a matter of seconds, but after that the code keeps running forever, to the point that I do not even know if it produces the correct results at the end. Is the code correct, and if so, can it become quicker? Please let me know for any clarifications.

a=218;
b=-2/3;
x0=0;
x1=1;
u[x_,t_,a1_,b1_]:=Exp[-a1*(b1+t-Log[1-x])^2];
f[x_]:=u[x,0,a,b];
D[t,u]-(1-x)*D[x,u]

der1[x0_]:=NDSolveFiniteDifferenceDerivative[Derivative[1],x0, "DifferenceOrder"->"Pseudospectral"]@"DifferentiationMatrix"; Nx=2^8; II=IdentityMatrix[Nx]; n=Nx-1; theta=N[Table[i*Pi/n,{i,0,n}]]; X=N[Chop[((x0+x1)/2)+((x0-x1)/2)*Cos[theta]]]; dt=N[0.01*(x1-x0)/n]; D1=der1[X]; L=(1-x)*D1; L2=L.L; L3=L2.L; M = (II+dt*L+((dt^2)/2)*L2+((dt^3)/6)*L3); M= DeveloperToPackedArray[M, Real]; Nt=10^5; T=Table[it*dt,{it,0,Nt-1}]; U=ConstantArray[0.,{Nt, Nx}]; U[[1, All]]=f[X]; U= Developer`ToPackedArray[U, Real]; ListPlot[Transpose[{X, U[[1, All]]}], PlotRange->All, Joined->True] Do[U[[it+1,All]]=M.U [[it,All]],{it,1,Nt-1}] ListPlot[Transpose[{X,U[[Nt, All]]}], PlotRange->All, Joined->True] ListPlot[Transpose[{X,U[[Nt, All]]-f[X-T[[Nt]]]}], PlotRange->All, Joined->True]

xzczd
  • 65,995
  • 9
  • 163
  • 468
JBuck
  • 199
  • 6
  • 1
    The time consuming step is: Do[U[[it+1,All]]=M.U [[it,All]],{it,1,Nt-1}]You could try Compilâtion or ParallelEvaluate. – Daniel Huber Jan 14 '22 at 15:35
  • @DanielHuber I see, thank you! Is the code running correctly for you? It is returning the two latter ListPlots empty for me – JBuck Jan 14 '22 at 16:09
  • 1
    Sorry, but I do not have the time (and nerve ): ) to wait for the loop to end. – Daniel Huber Jan 14 '22 at 16:14
  • @DanielHuber Thanks anyway! – JBuck Jan 14 '22 at 16:17
  • I'm missing a boundary condition u[ 0,t] or u[ 1,t] ? – Ulrich Neumann Jan 14 '22 at 16:17
  • @UlrichNeumann B.C.'s are not given, probably because we're meant to evolve this equation in time. Do the 2 latter listplots appear for you? I think there might be a mistake in the definition of the linear operator L=(1-x)*D1;.If there is, would you happen to know how to define it properly? Thanks in advance! – JBuck Jan 14 '22 at 16:39
  • 1
    @JBuck Sorry I didn't check your code in detail, I only tried to find an alternative solution using "MethodOfLines" – Ulrich Neumann Jan 14 '22 at 16:47
  • @JBuck Parameter a is not defined in your code. Also, please, pay attention that x in L = (1 - x)*D1 is not defined as well. – Alex Trounev Jan 15 '22 at 04:07

1 Answers1

5

There are typos in the code that x in L = (1 - x)*D1 is not defined and also in the initial data last point is Indeterminate. General structure of the code should be revisited as follows

Clear["Global`*"]

Needs["Developer`"]

b = -2/3; a = 218; x0 = 0; x1 = 1; u[x_, t_, a1_, b1_] := Exp[-a1(b1 + t - Log[1 - x])^2]; f[x_] := u[x, 0, a, b]; D[u, t] - (1 - x)D[u, x]

der1[x0_] := NDSolveFiniteDifferenceDerivative[Derivative[1], x0, "DifferenceOrder" -> "Pseudospectral"]@"DifferentiationMatrix"; Nx = 2^8; II = IdentityMatrix[Nx]; n = Nx - 1; theta = N[Table[i*Pi/n, {i, 0, n}]]; X = N[Chop[((x0 + x1)/2) + ((x0 - x1)/2)*Cos[theta]]]; dt = N[0.01*(x1 - x0)/n]; D1 = der1[X]; L = (II - DiagonalMatrix[X]) . D1; L2 = L . L; L3 = L2 . L; M = (II + dt*L + ((dt^2)/2)*L2 + ((dt^3)/6)*L3); M = DeveloperToPackedArray[M, Real]; Nt = Round[1/dt]; T = Table[it*dt, {it, 1, Nt}]; U[0] = Chop[f[X] /. Indeterminate -> 0] // Quiet;

Iteration on time takes about 0.25 s

Do[U[it] = M . U[it - 1], {it, 1, Nt}]

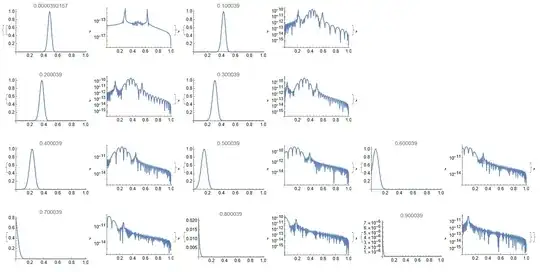

Visualization of function and logarithm of absolute error on several steps

    Table[{ListPlot[Transpose[{X, U[i]}], PlotRange -> All,
   Joined -> True, PlotLabel -> i dt],
  ListPlot[Transpose[{X, Abs[U[i] - u[X, T[[i]], a, b] // Quiet]}],
   PlotRange -> All, Joined -> True, ScalingFunctions -> "Log"]}, {i,
  1, Nt, Round[Nt/10]}]

Figure 1

Alex Trounev
  • 44,369
  • 3
  • 48
  • 106
  • Thank you so much! I next tried to plot the energy error $E(t)-E(0)$ as a function of t, where the energy is $\Int__{0}^{1} (1-x) (\partial_x u)^2 ,dx $. I used the Clenshaw-Curtis integration rule h[x_]:=(1/n)*(1-Sum[2*Cos[2*i*x]/(4*i^2 - 1), {i, (n-1)/2}]) weights=h[X]; weights[[1]]=1/(2*n^2); weights[[n]]=1/(2*n^2); weights.U[0] NIntegrate[f[x],{x,x0,x1}] energy=ConstantArray[0.,{Nt}]; Do[energy[[it]]=weights.(D1.U[[it,All]])^2,{it,1,Nt}] ListPlot[energy-energy[[1]]], to compute the energy,but weights.U[0] is nowhere near the actual integral value, any clue why? – JBuck Jan 19 '22 at 18:53
  • 1
    @JBuck Please, check that weights . ConstantArray[1, Length[weights]]=0.704224, and therefore weights is not defined as the weights of the Clenshaw-Curtis rule. We can use weights1 = NIntegrateClenshawCurtisRuleData[Nx/2, 20][[2]], but this is also not so precise since weights1 . (Drop[U[0], -1] + Drop[U[0], 1])/2=0.0619452 , and we expecting about 0.0617043. We should increase Nx up to 2^12 to get about 0.06172. – Alex Trounev Jan 19 '22 at 23:39
  • Nvm I found the mistake about the weights, they should be defined as h[theta] instead of h[X]. On the other hand, when I try to compute the energy energy=ConstantArray[0.,{Nt}]; Do[energy[[it]]=weights.(D1.U[[it,All]])^2,{it,1,Nt}] ListPlot[energy-energy[[1]]], I get errors like Part::partd: Part specification U[[1,All]] is longer than depth of object, do you have any idea why this is happening? – JBuck Jan 20 '22 at 14:57
  • 1
    @JBuck Ok! It looks much better {weights . U[0], NIntegrate[f[x], {x, x0, x1}]} is about {0.0617043, 0.0617043}. To calculate energy we can use Do[energy[it] = weights . (D1 . U[it])^2, {it, 0, Nt}]; ListPlot[Table[energy[i] - energy[0], {i, 0, Nx}]] – Alex Trounev Jan 20 '22 at 16:59
  • For some reason it returns an empty listplot with the error message "Set::write: Tag List in {0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,0.,<<25450>>}[0] is Protected.", have I messed up something? – JBuck Jan 22 '22 at 21:31
  • 1
    @JBuck Don't use energy=ConstantArray[0.,{Nt}];! Run code first to compute U and weights. Also in the last line use Do[energy[it] = weights . (D1 . U[it])^2, {it, 0, Nt}]; ListPlot[[Table[energy[i] - energy[0], {i, 0, Nt}]]. – Alex Trounev Jan 23 '22 at 02:47
  • I'm so sorry, after computing U and weights, I run Do[energy[it] = weights . (D1 . U[it])^2, {it, 0, Nt}]; ListPlot[[Table[energy[i] - energy[0], {i, 0, Nt}]]] but this time I get the error Part::pkspec1: The expression {0.,-0.00141585,-0.00283164,-0.00424737,-0.00566305,-0.00707867,-0.00849424,-0.00990975,<<35>>,-0.0608313,-0.0622447,-0.0636581,-0.0650715,-0.0664848,-0.067898,-0.0693112,<<25451>>} cannot be used as a part specification., does this happen to you as well? – JBuck Jan 23 '22 at 20:01
  • @JBuck Oh, there is a typo in my last comment with ListPlot[[]], plot with one pare ListPlot[] as follows ListPlot[Table[energy[i] - energy[0], {i, 0, Nt}]] – Alex Trounev Jan 24 '22 at 02:44
