I have solved a differential equation by using NDSolve with xmax=3

ydum = x/L[t];
expr1 = Expand[(1/c^2)*D[\[Psi][ydum, t], {t, 2}] -
     D[\[Psi][ydum, t], {x, 2}] + ((m^2*c^2)/h^2)*\[Psi][ydum,
       t] /. \[Psi][ydum, t] -> \[Psi][y, t] /. x -> y*L[t]]
m = 1;
c = 1;
h = 1;
\[Omega] = 1;
L[t_] := 2 + Sin[\[Omega]*t];

sol = NDSolve[{expr1 == 0, [Psi][0, t] == 0, [Psi][1, t] == 0, [Psi][y, 0] == Sqrt[2 (m c)/(c Sqrt[m^2 c^2 + [Pi]^2 h^2/L[0]^2] L[0])] Sin[ [Pi] y]}, [Psi], {y, 0, 1}, {t, 0, 3}]

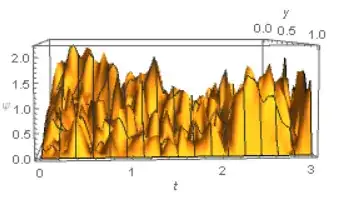

Then I plot this with Plot3D

Plot3D[Abs[Evaluate[\[Psi][y, t] /. sol]], {y, 0, 1}, {t, 0, 10},
 AxesLabel -> {y, t, \[Psi]}]

enter image description here

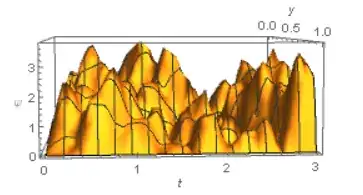

Then I changed the xmax of my NDSolve to 10 and plot the answer still with t ranging from 0 to 3

sol = NDSolve[{expr1 == 0, \[Psi][0, t] == 0, \[Psi][1, t] ==
        0, \[Psi][y, 0] ==
        Sqrt[2 (m c)/(c Sqrt[m^2 c^2 + \[Pi]^2 h^2/L[0]^2] L[0])]
          Sin[ \[Pi] y]}, \[Psi], {y, 0, 1}, {t, 0, 10}]

enter image description here

The 2 graphs are clearly different. From my understanding, changing the range in which a differential equation is evaluated shouldn't change the answer (I have also tried it with simpler differential equation and this didn't happen). Can someone explain why this is happening?

  • Notice though the equation isn't exactly the same, the underlying issue is. – xzczd Feb 08 '22 at 12:23
  • Could you explain what is xmax in the code? – Alex Trounev Feb 08 '22 at 12:24
  • @AlexTrounev, it's the range of the independent variable (t in this case) in which the differential equation is evaluated. I just noticed that I wrote xmax=10 in my first equation, but the plot belongs to xmax=3 though. – ForacleFunacle Feb 08 '22 at 14:29

0 Answers0
