How to use lines as textures in a plot

Question

I would like to replicate this plot:

From A parametric model for dark energy.

But how can I add the lines and the grids to the various sections?

if you have version 12.1+ try HatchFilling and PatternFilling. — kglr, Feb 12 '22 at 16:44
closely related / possible duplicate: Generating hatched filling using Region functionality — kglr, Feb 12 '22 at 16:46
holy f, this is amazing. thanks kglr, i will try this evening. — Alucard, Feb 12 '22 at 17:40

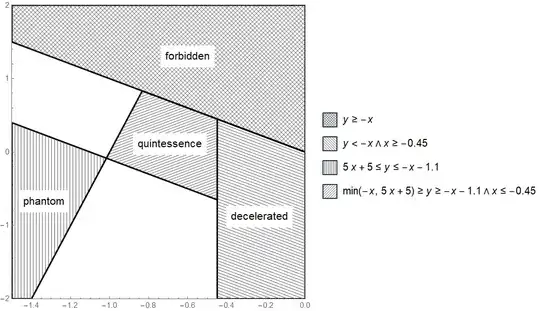

score 7 · Accepted Answer · answered Feb 12 '22 at 19:37

inequalities = {y >= -x,
   y < -x && x >= -.45,
   5 + 5 x <= y <= -x - 1.1,
   Min[5 + 5 x, -x] >= y >= -x - 1.1 &&   x <= -.45};

regions = ImplicitRegion[{#}, {{x, -3/2, 0}, {y, -2,   2}}] & /@ inequalities;

labels = {"forbidden", "decelerated", "phantom", "quintessence"};

fillings = {PatternFilling["Diamond", ImageScaled[1/50]],
    HatchFilling[-Pi/4],
    HatchFilling[Pi/2],
    HatchFilling[]};

 legends = SwatchLegend[fillings /. ImageScaled[_] -> ImageScaled[1/4],
  inequalities, LegendMarkerSize -> 30]

 epilog = MapThread[Text[Style[Framed[#, Background -> White, FrameStyle -> White],
      16], RegionCentroid @ #2, Center] &, {labels, regions}];

 RegionPlot[Evaluate @ regions,
  PlotRange -> {{-3/2, 0}, {-2, 2}},
  ImageSize -> Large,
  BoundaryStyle -> Directive[Thick, Black],
  Epilog -> epilog,
  PlotLegends -> legends,
  PlotStyle -> Thread[Directive[Black, fillings]]]

score 3 · Answer 2 · answered Feb 13 '22 at 04:52

For versions before 12.1, we can use MeshFunctions and Mesh to get a similar look:

inequalities = {y >= -x,
   y < -x && x >= -.45,
   5 + 5 x <= y <= -x - 1.1,
   Min[5 + 5 x, -x] >= y >= -x - 1.1 && x <= -.45};
regions = ImplicitRegion[{#}, {{x, -3/2, 0}, {y, -2, 2}}] & /@ inequalities;
labels = {"forbidden", "decelerated", "phantom", "quintessence"};
meshfunctions = {{4 # + 3/2 #2 &, 3/2 #2 - 4 # &},
   {# + #2 &},
   {# &},
   {# - #2 &}};
meshes = {{80, 100}, 60, 30, 50};
epilog = MapThread[Text[Style[Framed[#, Background -> White, FrameStyle -> White], 14],
    RegionCentroid @ #2, Center] &,
   {labels, regions}];
rp = Show[MapThread[
       RegionPlot[#,
        PlotRange -> {{-3/2, 0}, {-2, 2}},
        MeshFunctions -> #2,
        Mesh -> #3,
        MeshStyle -> Darker@Gray,
        ImageSize -> 400,
        BoundaryStyle -> Directive[Thick, Black],
        PlotStyle -> None] &,
      {regions, meshfunctions, meshes}],
  Epilog -> epilog]

Adding a hatch-filled legend requires additional work: We can create RegionPlots with desired hatching patterns using MeshFunctions and Mesh as above and use them as legend markers making use of the (undocumented) option "LegendItem" for LineLegend:

hatchLegend = RegionPlot[True, {x, 0, 1}, {y, 0, 1},
    Frame -> True,
    FrameTicks -> False,
    PlotRange -> {{0, 1}, {0, 1}},
    ImagePadding -> 1,
    PlotRangeClipping -> False,
    MeshFunctions -> #,
    Mesh -> #2,
    MeshStyle -> Directive[AbsoluteThickness[1], #3],
    ImageSize -> 30,
    FrameStyle -> Directive[AbsoluteThickness[1], Black],
    PlotStyle -> None] &;
legenditems = MapThread[hatchLegend,
     {ReplacePart[{1} -> {# + #2 &, #2 - # &}] @ meshfunctions,
     {10, 10, 7, 10},
     ConstantArray[Darker @ Gray, 4]}];
legend = LineLegend[{White, Gray, Gray, Gray},
   inequalities,
   "LegendItem" -> legenditems,
   LegendMarkerSize -> {20, 20}];
Legended[rp, legend]
