Why can't I get the right dimension of matrix?

Question

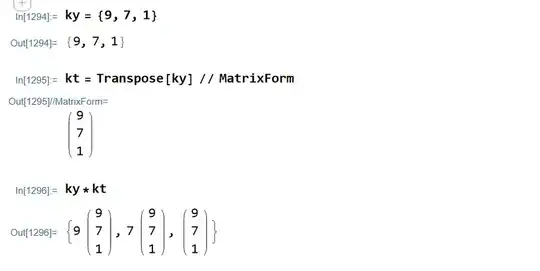

This is an example of the output that I get. I am working on with more complicated matrix, but it seemed not working. That's why I try to use a simple number to find the issue. So, my matrix is a 3x1. If I transpose it, it should be a 1x3 matrix. Then I try to multiply both matrices 3x1 * 1x3 respectively. The output should be a 3x3 matrix, right? But unfortunately, the output from Mathematica doesn't give the answer that I want. Here I attached the image of the result;

Answer 1

First of all, it is best to avoid assigning values wrapped in MatrixForm to variables. Values so wrapped no longer participate in algebraic expressions normally. MatrixForm should generally only be used when displaying a final result.

Second, * multiplies vectors element-wise.

Third, Mathematica tends to gloss over the distinction between column-vectors and row-vectors. For example, Transpose applied to a list (vector) returns the list unchanged:

ky === Transpose[ky]
(* True *)

Option #1 - use Dot after converting the column and row vectors to matrices

The Mathematica Dot operator produces the matrix product when applied to two matrices but only the scalar product when applied to two vectors. We can get the desired result by "upgrading" the vectors to be matrices of dimension one in the row or column direction.

krow = {ky}
(* {{9, 7, 1}} *)
kcol = Transpose[krow]
(* {{9}, {7}, {1}} *)
kcol . krow // MatrixForm

If the application is going to perform many mixed matrix and vector products, this is probably superior to the second option below.

Option #2 - use KroneckerProduct or TensorProduct on the vectors directly

We can form the matrix direct product of two lists representing vectors using KroneckerProduct or TensorProduct:

ky = {9, 7, 1};
kt = Transpose[ky]
(* {9, 7, 1}, i.e. the same as ky *)
KroneckerProduct[ky, kt] // MatrixForm

TensorProduct[ky, kt] // MatrixForm

TensorProduct can also be used in operator form by typing ESCt*ESC instead of the original *.

But beware that these functions will produce higher-order tensor structures than the inputs. This "upgrading" is precisely what we want in this particular case, but it may not be desirable when chaining together arbitrary matrix and vector products.

Answer 2

You need to make a tensor product of a vector by itself, right? If yes, you may act as follows. This is the vector:

v = {9, 7, 1};

Then this is the tensor:

t = Table[v[[i]]*v[[j]], {i, 3}, {j, 3}]
(*   {{81, 63, 9}, {63, 49, 7}, {9, 7, 1}}   *)

That's how its MatrixForm looks like:

t // MatrixForm

There is a more concise way:

t=Outer[Times, v, v]

returning the same result.

Have fun!
