Bilevel optimization

Question

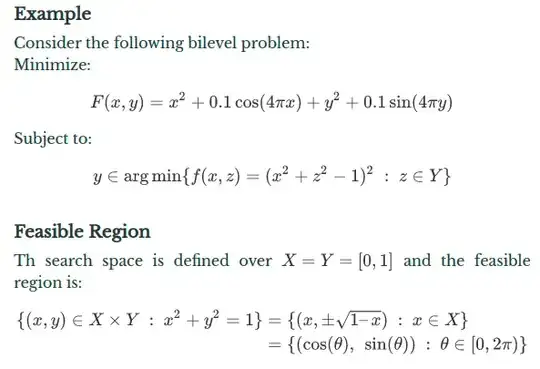

I found a problem here

How do we go about solving this in Mathematica? I did something like this:

NMinimize[(x^2 + y^2 - 1)^2, {x, y}]

this gives {3.08149*10^-33, {x -> 0.865404, y -> 0.501074}}

And used this y -> 0.501074 and did this:

NMinimize[
 x^2 + 0.1*Cos[4 Pi x] + y^2 + 0.1*Sin[4 Pi y] /.
  y -> 0.5010739136683062`, x]

which gave

{0.207832, {x -> -0.221351}}

Edit: Actually, I had tried this method and meant to post it today but got late:

F[x_, y_] := x^2 + 0.1*Cos[4 Pi x] + y^2 + 0.1*Sin[4 Pi y];
g[x_, y_] := (x^2 + y^2 - 1)^2;
NMinimize[{F[x, g[x, y]], Derivative[0, 1][g][x, y] == 0}, {x, y}]

I got {0.390615, {x -> -0.627901, y -> -0.778293}}

If plot this then I get: This doesn't make sense

Does this answer your question? Combined numerical minimization and maximization — Daniel Lichtblau, Feb 16 '22 at 16:51
(1) This has come up several times on MSE. See this or this other for examples. Also the one referenced in my "close as duplicate" vote, if this gets closed. — Daniel Lichtblau, Feb 16 '22 at 16:53
(2) Don't get me wrong, this is a reasonable type of inquiry. But it has several answers already. — Daniel Lichtblau, Feb 16 '22 at 16:54
Thanks @DanielLichtblau for all the links. Actually, I had tried one of the methods that you mentioned and I just updated my post with an edit. I didn't get a sensible answer. May I am understanding the problem incorrectly. — sra, Feb 16 '22 at 20:47

score 3 · Answer 1 · answered Feb 17 '22 at 19:55

I don't think this is a first, but I rarely answer a question I voted to close. In this case I found the wording of the problem to be convoluted (at least for me) so I opted to take a stab at it.

We need a function to do the inner optimization.

innerMin[x_?NumericQ] :=
 First[FindArgMin[{(x^2 + z^2 - 1)^2, 0 <= z <= 1}, {z, 1/2}]]

The actual objective function uses the inner optimization.

objFunc[x_] :=
 With[{y = innerMin[x]}, x^2 + 0.1*Cos[4 Pi x] + y^2 + 0.1*Sin[4 Pi y]]

Let's see what we get.

NMinimize[{objFunc[x], 0 <= x <= 1}, x]
(* Out[6]= {0.858145, {x -> 0.270149}} *)

score 1 · Answer 2 · answered Feb 17 '22 at 20:48

1

F[x_, y_] = x^2 + 1/10*Cos[4 Pi x] + y^2 + 1/10*Sin[4 Pi y]

g[x_, y_] = (x^2 + y^2 - 1)

nmin = NMinimize[{F[x, y], g[x, y] == 0, 0 <= x <= 1,
0 <= y <= 1}, {x, y}, Method -> "DifferentialEvolution"]

Show[Plot3D[F[x, y], {x, 0, 1}, {y, 0, 1}, PlotRange -> All,
RegionFunction -> Function[{x, y}, -.01 < g[x, y] < .01],
PlotPoints -> 100],
Graphics3D[{Red,
Sphere[{x, y, F[x, y]} /. nmin[[2]], .03]}]]

sol = Flatten@
Solve[{g[x, y] == 0, 0 <= x <= 1, 0 <= y <= 1}, {x, y}, Reals]

(min = Minimize[{F[x, Sqrt[1 - x^2]], 0 <= x <= 1}, x, Reals])

Plot[F[x, Sqrt[1 - x^2]], {x, 0, 1},
GridLines -> {{x /. min[[2]]}, None}]

answered Feb 17 '22 at 20:48

Akku14

17,287
14
32

Isn't the definition of g[x_,y_] incorrect? – sra Feb 18 '22 at 00:43
y == ArgMin[{(x^2 + z^2 - 1)^2, 0 < z < 1 && 0 < x < 1}, z, Reals] // FullSimplify[#, 0 < x < 1] & yields Sqrt[1 - x^2] == y and sol = Flatten@ Solve[{g[x, y] == 0, 0 <= x <= 1, 0 <= y <= 1}, {x, y}, Reals] yields {y -> ConditionalExpression[Sqrt[1 - x^2], 0 <= x <= 1]} – Akku14 Feb 18 '22 at 06:49
