Plotting equipotentials gone wrong

Asked Jun 08 '13 at 19:30

Active Jun 08 '13 at 19:35

Viewed 204 times

I'm plotting the equipotential of the potential function: $$\phi(x,y,z):=\frac{1+x^{2}+y^{2}+z^{2}}{[\left(1+x^{2}+y^{2}+z^{2}\right)^{2}-4z^{2}]^{1/2}}$$ Mathematica code:

Φ[x_, y_, z_] := (1 + x^2 + y^2 + z^2)/((1 + x^2 + y^2 + z^2)^2 - 4 z^2)^(1/2)

So I write, for example

ContourPlot3D[Φ[x, y, z] == 1, {x, -100, 100}, {y, -100, 100}, {z, -100, 100}]

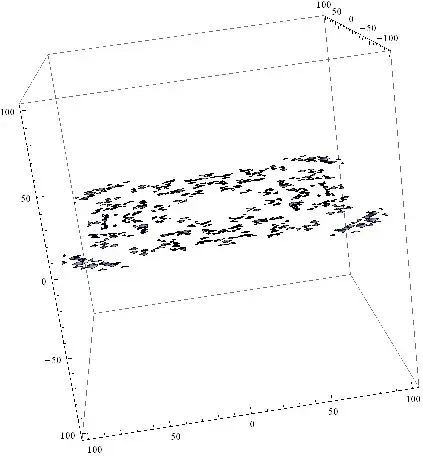

But, I get this image: enter image description here

And, sometimes if I change the plot region, I get absolutely nothing.

My question is, what did I wrong? I think I should obtain smooth 3D curves, but I don't.

edited Jun 08 '13 at 19:35

Spawn1701D

1,871
13
14

asked Jun 08 '13 at 19:30

Ana S. H.

2

The problem is that $\Phi(x,y,z)\ge1$ everywhere... – Jun 08 '13 at 19:46
2

I think you should manipulate it mathematically a bit further. – Spawn1701D Jun 08 '13 at 19:49
3

Try p[x_, z_] := (x x + z^2)/((x x + z^2)^2 - 4 z^2)^(1/2) a = 5; Plot3D[p[x, z], {x, 1, a}, {z, -a, a}] – Dr. belisarius Jun 08 '13 at 20:10
1

Or a = 2; ContourPlot3D[{\[CapitalPhi][x, y, z] == 1 + 1/100, \[CapitalPhi][x, y, z] == 1 + 1/10}, {x, -a, a}, {y, -a, a}, {z, -a, a}] – Dr. belisarius Jun 08 '13 at 20:53
2

As Rahul already pointed out, your contour is never crossed, only touched. ContourPlot3D fails with such things which I already answered here. For a quick solution you should follow belisarius' last comment. – halirutan Jun 08 '13 at 21:46
@belisarius maybe you could try to make a quick answer? :) – Kuba Apr 25 '14 at 07:30
