Set user-defined uneven step size in ListStepPlot

Question

I want to plot the following data as steps:

Ydata={2,4,6,8,10};
Xdata={2,8,18,34,64};
halfbinsize={2,4,6,10,20};

I want to include the bin-size (or half-bin-size) into account. So in this case the first bin will be dx=[0-4] with a central value at Xcentral=2. For the next bin dx=[4-12] with central value Xcentral=8. Similarly for the next bins dx=[12-24], Xcentral=18, dx=[24-44], Xcentral=34, dx=[44-84], Xcentral=64...

Now with ListStepPlot I can have a bin-distribution, however, it seems like it takes the steps-sizes automatically.

ListStepPlot[TemporalData[{Ydata},{Xdata}],
Center,
PlotRange->{{-10.0,90.0},{0,12}},
Mesh->Full,
Frame->True,
FrameTicks->{
{#,#}&@(Charting`ScaledTicks[{Identity,Identity},"TicksLength"->{0.03,0.015}][##,{5,11}]&),
{#,#}&@(Charting`ScaledTicks[{Identity,Identity},"TicksLength"->{0.03,0.015}][##,{11,11}]&)}
]

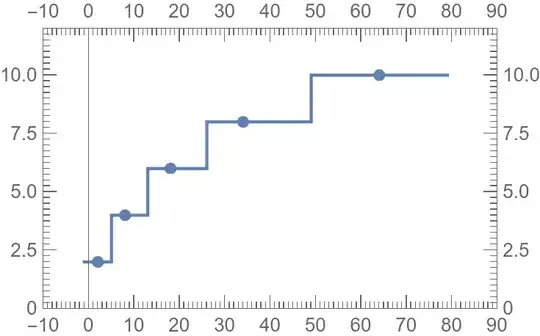

As it is shown, although the central values are shown correctly, the steps (or bins) are rather different. For example for the first bin, it takes the bin-size to be 6 (probably it just looks at two successive x-data and from there it derives the bin-size automatically, in this case, 8-2=6 and distributes 6 equally around 2), and thus plots as dx=[-1,5] with Xcentral=2.

My question is: How should I force ListStepPlot to use user-defined bins with correct central value?

A related question. – J. M.'s missing motivation Jun 13 '22 at 18:04 — J. M.'s missing motivation, Jun 13 '22 at 18:04

score 5 · Answer 1 · answered Jun 12 '22 at 15:32

5

Clear["Global`*"]

Ydata = {2, 4, 6, 8, 10};
Xdata = {2, 8, 18, 34, 64};
halfbinsize = {2, 4, 6, 10, 20};

Using ListPlot with Around

ListPlot[
 Transpose[{Around @@@
    Transpose[{Xdata, halfbinsize}], Ydata}],
 PlotRange -> {{-10.0, 90.0}, {0, 12}},
 Frame -> True,
 FrameTicks -> {
   {#, #} &@(Charting`ScaledTicks[{Identity, Identity},
        "TicksLength" -> {0.03, 0.015}][##, {5, 11}] &),
   {#, #} &@(Charting`ScaledTicks[{Identity, Identity},
        "TicksLength" -> {0.03, 0.015}][##, {11, 11}] &)}
 ]

answered Jun 12 '22 at 15:32

Bob Hanlon

157,611
7
77
198

1

So with ListStepPlot it is not that straightforward for this purpose? The reason I wanted to stick to that is, that it is very easy there to use other features like having a histogram-like or step-like plot, filling the area between two sets of Ydata very easily using Filling etc. – BabaYaga Jun 12 '22 at 15:45
