Plot graphics frame Issue

Question

Bug introduced in 13.0 and persisting through 13.1. This bug is not present in macOS only in Windows.

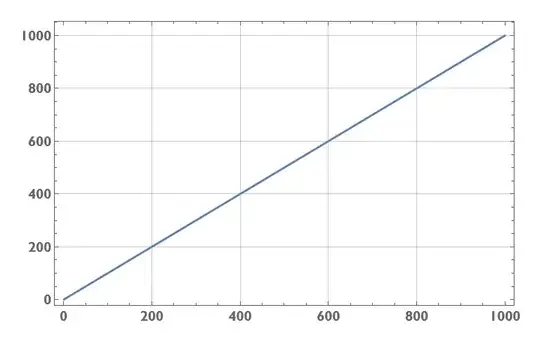

With Mathematica 13.1 I see the following issue with the right side frame changing based upon the number of elements plotted. Specifically, with 1000 elements the right-side frame line is shown but with 1024 (and other numbers of elements) the right-side frame line does not show. This was not occurring in prior versions.

I am looking for a consistent fix.

$Version: "13.1.0 for Microsoft Windows (64-bit) (June 16, 2022)"

SetOptions[ListLinePlot, GridLines -> Automatic, Frame -> True,
  PlotRange -> All, PlotStyle -> Thick,
  BaseStyle -> {FontFamily -> "Gill Sans MT", FontSize -> 14},
  LabelStyle -> Directive[Bold], ImageSize -> 500,
  ImageMargins -> 20];
ListLinePlot[Range[1024]]
ListLinePlot[Range[1000]]

The axes are correct and consistent for "13.0.0 for Mac OS X ARM (64-bit) (December 3, 2021)" — Craig Carter, Aug 09 '22 at 16:43
Also okay with "13.1.0 for Mac OS X x86 (64-bit) (June 16, 2022)" — Bob Hanlon, Aug 09 '22 at 16:51
Strange, I have the same version 13.1.0 on Windows, but I do not see the error. — Daniel Huber, Aug 09 '22 at 18:45
Some new details. When the plot is manually resized smaller the right-side frame often reappears. Resizing larger never corrects the issue. Also copying or "copy as bitmap" maintains the lost frame in the image. — OpticsMan, Aug 09 '22 at 21:01
I reproduce the problem with "13.1.0 for Microsoft Windows (64-bit) (June 16, 2022)", but not with "12.3.1 for Microsoft Windows (64-bit) (June 19, 2021)". Please report it to the support. — Alexey Popkov, Aug 10 '22 at 03:24
Same problem. Happens when I try to next two plots in a showed command, and outside the show use labelled to label x and y axes — 三叶虫家族the193thDoctor, Feb 08 '23 at 20:19

score 1 · Accepted Answer · answered Aug 10 '22 at 03:34

1

I reproduce the problem with "13.1.0 for Microsoft Windows (64-bit) (June 16, 2022)", but not with "12.3.1 for Microsoft Windows (64-bit) (June 19, 2021)". Please report it to the support.

The problem seems to be related to the global change in default value of the screen resolution compatibility setting for Windows in version 13.0.0, discussed in the following threads:

You can reproduce the previous behavior by evaluating (but read this before you continue!):

CurrentValue[$FrontEnd, "ScreenResolutionCompatibilityMode"] = True

answered Aug 10 '22 at 03:34

Alexey Popkov

61,809
7
149
368

I tied this work-around and it does correct the issue. However, it also requires restarting the kernel and the notebook since otherwise it causes large portions of the cells to blink and overwrite each other with different fonts or font sizes. I will report. Thanks. – OpticsMan Aug 10 '22 at 14:25
No. If you do that, it will get the same problem on the left side. Try clicking on vector image produced by https://mathematica.stackexchange.com/questions/261535/geometrictest-doesnt-work-in-ellipse/274508?noredirect=1#comment685986_274508 – Валерий Заподовников Dec 19 '22 at 02:45
