How can I get vectorized text when exporting to pdf?

Question

Consider this code:

data = Table[Sin[j^2 + i], {i, 0, Pi, Pi/3}, {j, 0, Pi, Pi/3}];
p1 = Graphics[Raster[data], Frame -> True, FrameStyle -> Large,
  ImageSize -> 300];
p2 = ListDensityPlot[data, InterpolationOrder -> 0,
  ColorFunction -> "GrayTones", Frame -> True, FrameStyle -> Large,
  ImageSize -> 300];
Export["~/Downloads/1.pdf", p1, ImageResolution -> 100]
Export["~/Downloads/2.pdf", p2, ImageResolution -> 100]

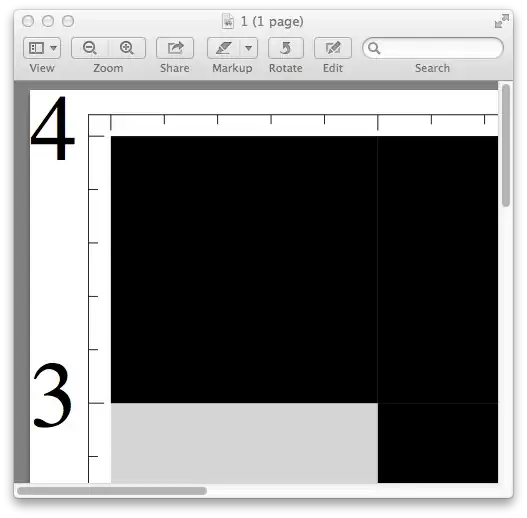

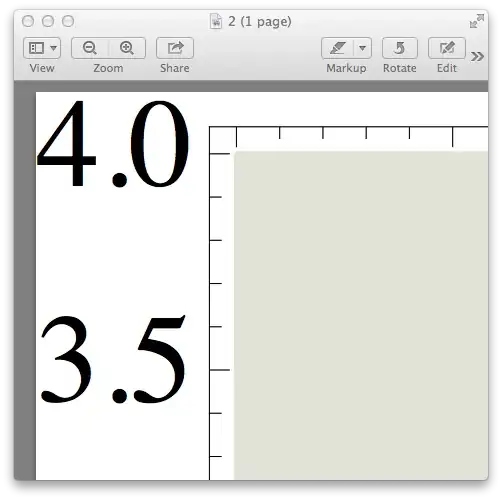

Why does the font in the first plot appear vectorized while the the font in the second does not?

enter image description here

Update:

remove the ImageResolution option will vectorize both plots, but ImageResolution is very helpful in reducing the pdf file size and I can't give up on that.

Export["~/Downloads/1.pdf", p1]
Export["~/Downloads/2.pdf", p2]

enter image description here

This is not an answer, but the same thing happens when exporting these graphics as EMF or WMF. — Verbeia, Jun 20 '13 at 04:47
version or system issue? I get vectors in both cases w/v9 on windows. — george2079, Jun 20 '13 at 17:29
By the way, exporting to EPS i see in both cases the entire file is 'vector', i.e. each square is drawn and filled. You might try exporting eps and converting externally. — george2079, Jun 20 '13 at 17:40

score 2 · Answer 1 · edited Apr 13 '17 at 12:55

2

A possible answer to the question in the title, "How can I get vectorized text when exporting to pdf?" is the same as what I suggested here:

rasterTrick[plot_] :=
 Show[plot,
  Prolog -> {Opacity[0], Texture[{{{0, 0, 0, 0}}}],
    VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1, 1}},
    Polygon[{{0, 0}, {.1, 0}, {.1, .1}}]}]

Export["~/Downloads/1.pdf", p1 // rasterTrick]

The function rasterTrick is described in the linked answer, and you'll notice that the white lines between the exported gray squares are gone. The density plot has been turned into a bitmap at high resolution, but the frame labels are not rasterized.

So the Export command just needs to be augmented by //rasterTrick.

edited Apr 13 '17 at 12:55

Community

1

answered Jun 20 '13 at 17:05

Jens

97,245
7
213
499

Thanks for the help, but the problem seems to be the ImageResolution options. Only use Export["~/Downloads/2.pdf", p2], the frame labels are also not rasterized. – xslittlegrass Jun 20 '13 at 17:27
Yes, that's correct. But your reason for adding ImageResolution is to get a better quality density plot, without the white lines, right? I see no other reason to use ImageResolution in the first place. My trick achieves this improvement in quality, as if you had used ImageResolution -> 200, but it applies rasterization only to the plot contents and not to the axes or frames. It's a hack that I discovered by accident, but it's better than ImageResolution here. – Jens Jun 20 '13 at 17:51
