I have been trying to solve a system of equations with Runge-Kutta Order 4th but when I tried to run it the answer I got is a big equation with the word List in it instead of an Array. I put n=2 because otherwise it will take the program a lot to load on my laptop.

Edit: Thanks to Nasser I don't have a problem with List but now I get as solutions some extremly big numbers. Is there a calculator online for system of equations like this or can someone tell me if its a problem with the code?

This is the problem

I replaced rho sigma and beta with v, j and c

Clear[f, g, u, k1, k2, k3, k4, v, i, j, c, l1, l2, l3, l4, p1, p2, \
p3, p4]
v = 28
j = 10
c = 3/8

n = 2 x = ConstantArray[0, n + 1] y = ConstantArray[0, n + 1] z = ConstantArray[0, n + 1] t = ConstantArray[0, n + 1] x[[1]] = 2 y[[1]] = 1 z[[1]] = 3 ti = 0 tf = 1 dt = (a + b)/n t[[1]] = ti

x y z

f[x_, y_] := v(y - x) g[x_, y_, z_] := x(j - z) - y u[x_, y_, z_] := xy - cz For[ i = 1, i <= n, i++, k1 = f[x[[i]], y[[i]]]; l1 = g[x[[i]], y[[i]], z[[i]]]; p1 = u[x[[i]], y[[i]], z[[i]]]; k2 = f[x[[i]] + dt/2k1, y[[i]] + dt/2l1]; l2 = g[x[[i]] + dt/2k1, y[[i]] + dt/2l1, z[[i]] + dt/2 + p1]; p2 = u[x[[i]] + dt/2k1, y[[i]] + dt/2l1, z[[i]] + dt/2 + p1]; k3 = f[x[[i]] + dt/2k2, y[[i]] + dt/2l2]; l3 = g[x[[i]] + dt/2k2, y[[i]] + dt/2l2, z[[i]] + dt/2 + p2]; p3 = u[x[[i]] + dt/2k2, y[[i]] + dt/2l2, z[[i]] + dt/2 + p2]; k4 = f[x[[i]] + dtk3, y[[i]] + dtl3]; l4 = g[x[[i]] + dtk3, y[[i]] + dtl3, z[[i]] + dtp3]; p4 = u[x[[i]] + dtk3, y[[i]] + dtl3, z[[i]] + dtp3]; x[[i + 1]] = x[[i]] + (dt/6)(k1 + 2k2 + 2k3 + k4); y[[i + 1]] = y[[i]] + (dt/6)(l1 + 2l2 + 2l3 + l4); z[[i + 1]] = z[[i]] + (dt/6)(p1 + 2p2 + 2*p3 + p4); t[[i + 1]] = t[[i]] + dt ]

x y z

enter image description here Here is an image with the output that I get

  • 1
    You can not do For[ i = 0, then do x[[i]] because x[[0]] is the head, which is List. That is why you are getting List everywhere in your output . – Nasser Sep 06 '22 at 19:26
  • 1
    If you just want to solve this ODE system, forget about RK4 and use NDSolve instead. – xzczd Sep 07 '22 at 05:26

1 Answers1

4

There are several RK4 implementation on this forum including this one. Let take code from Szabolcs answer and compute your system as a test

ClearAll[RK4step]
RK4step[f_, h_][{t_, y_}] := Module[{k1, k2, k3, k4}, k1 = f[t, y];
  k2 = f[t + h/2, y + h k1/2];
  k3 = f[t + h/2, y + h k2/2];
  k4 = f[t + h, y + h k3];
  {t + h, y + h/6*(k1 + 2 k2 + 2 k3 + k4)}]
v = 28;
j = 10;
c = 3/8;
f[t_, {x_, y1_, z_}] := {v*(y1 - x), x*(j - z) - y1, x*y1 - c*z}

res = NestList[RK4step[f, 1/100], {0, {2., 1., 3.}}, 100];

Visualization

 p = ListLinePlot[
  Table[Transpose[{res[[All, 1]], res[[All, 2, i]]}], {i, 3}] //
   Evaluate, PlotLegends -> {"x", "y", "z"}]

Figure 1

Now we can compute x,y,z with your code

Clear[x, y, z, f]

n = 100; x = ConstantArray[0, n + 1]; y = ConstantArray[0, n + 1]; z = ConstantArray[0, n + 1]; t = ConstantArray[0, n + 1]; x[[1]] = 2.; y[[1]] = 1.; z[[1]] = 3.; ti = 0; tf = 1; dt = 1/n; t[[1]] = ti; f[x_, y_] := v(y - x) g[x_, y_, z_] := x(j - z) - y u[x_, y_, z_] := xy - cz For[i = 1, i <= n, i++, k1 = f[x[[i]], y[[i]]]; l1 = g[x[[i]], y[[i]], z[[i]]]; p1 = u[x[[i]], y[[i]], z[[i]]]; k2 = f[x[[i]] + dt/2k1, y[[i]] + dt/2l1]; l2 = g[x[[i]] + dt/2k1, y[[i]] + dt/2l1, z[[i]] + dt/2 p1]; p2 = u[x[[i]] + dt/2k1, y[[i]] + dt/2l1, z[[i]] + dt/2 p1]; k3 = f[x[[i]] + dt/2k2, y[[i]] + dt/2l2]; l3 = g[x[[i]] + dt/2k2, y[[i]] + dt/2l2, z[[i]] + dt/2 p2]; p3 = u[x[[i]] + dt/2k2, y[[i]] + dt/2l2, z[[i]] + dt/2 p2]; k4 = f[x[[i]] + dtk3, y[[i]] + dtl3]; l4 = g[x[[i]] + dtk3, y[[i]] + dtl3, z[[i]] + dtp3]; p4 = u[x[[i]] + dtk3, y[[i]] + dtl3, z[[i]] + dtp3]; x[[i + 1]] = x[[i]] + (dt/6)(k1 + 2k2 + 2k3 + k4); y[[i + 1]] = y[[i]] + (dt/6)(l1 + 2l2 + 2l3 + l4); z[[i + 1]] = z[[i]] + (dt/6)(p1 + 2p2 + 2*p3 + p4); t[[i + 1]] = t[[i]] + dt]

Please, pay attention that several typos removed from your code. Visualization and comparison with Szabolcs code

Show[p, ListPlot[{Transpose[{t[[All]], x[[All]]}],
   Transpose[{t[[All]], y[[All]]}], Transpose[{t[[All]], z[[All]]}]},
  PlotStyle -> {Blue, Red, Green}]]

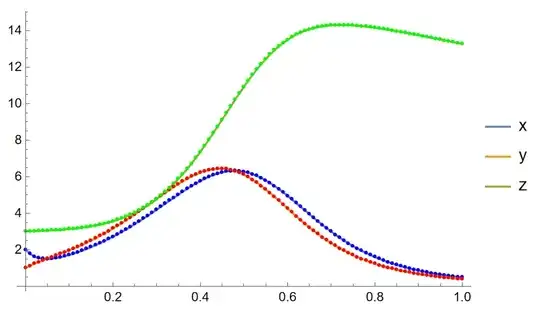

Figure 2

Alex Trounev
