Pattern not matching BoundaryMeshRegion

Question

Mathematica 13.1 on Windows 10.

Can someone explain why the following does not match:

MatchQ[BoundaryMeshRegion[Cube[]], BoundaryMeshRegion[__]]
(* False *)

mesh regions are atomic, which makes them opaque to the pattern matcher. If you use _BoundaryMeshRegion as a pattern it will work. — Jason B., Sep 08 '22 at 13:28
does this work for you?If you prevent evaluation of the left side, then it does match MatchQ[Unevaluated@BoundaryMeshRegion[Cube[]], BoundaryMeshRegion[___]] gives True — Nasser, Sep 08 '22 at 13:32
@Jason B Thanks a lot for the explanation. Is there a way to get the at the innards of _BoundaryMeshRegion, because "Part" does not work because it is atomic. — Daniel Huber, Sep 08 '22 at 13:34
@Nasser - when would you want to do that? Usually the issue is that you have an evaluated object, in this case a mesh region, and you want to write a pattern to match it. — Jason B., Sep 08 '22 at 13:34
@DanielHuber - all you have are the accessor functions like MeshCoordinates, MeshCells, MeshPrimitives. There are hacky methods to get at the InputForm but they are rarely the right way to do things. — Jason B., Sep 08 '22 at 13:36
@Jason B "MeshCoordinates" works fine. I want to change the coordinates. However, how to I insert the changed coordiantes back into BoundaryMeshRegion[...] — Daniel Huber, Sep 08 '22 at 13:40
That is a good question - 'what is the right way to modify an existing mesh region?'. Here are the methods for accessing the innards of atoms. Carl's nucleus function is nice — Jason B., Sep 08 '22 at 13:46
@JasonB. sometimes Unevaluated is needed in MathQ. Here is an example this is from https://www.youtube.com/watch?v=H-rnezxOCA8 at time 50:57 so Tried on this example and it worked. — Nasser, Sep 08 '22 at 13:46

score 2 · Answer 1 · edited Sep 09 '22 at 02:50

As was pointed out in the comments, the reason of the no-match is, that BoundaryMeshRegion is atomic.

My ultimate goal is to change the innards of a BoundaryMeshRegion or any other atomic object. Toward this aim, the function Nucleus from Carl Woll is a big step forward.

I give here a simple example how to change a BoundaryMeshRegion of a Rectangle:

First the function Nucleus from Carl Woll:

Nucleus[input_, head_ : Automatic] :=
 With[{atoms =
    Replace[head, {Automatic :>
       If[AtomQ[input], {Head[input]},
        Message[Nucleus::atom]; $Failed], h_Symbol :> {h},
      h : {__Symbol} :>
       h, _ :> (Message[Nucleus::syms, head, 2]; $Failed)}]}, (If[!
       MemberQ[Links[], $AtomLink] || LinkReadyQ[$AtomLink],
     Quiet@LinkClose[$AtomLink];
     $AtomLink = LinkCreate[LinkMode -> Loopback]];
    LinkWrite[$AtomLink, input];
    inactiveBlock[atoms, LinkRead[$AtomLink]]) /; atoms =!= $Failed]
SetAttributes[inactiveBlock, HoldAll]
inactiveBlock[h_List, body_] :=
 Block @@
  Join[Apply[Set, Hold@Evaluate@Thread[{h, Inactive /@ h}], {2}],
   Hold[body]]
Nucleus::syms =
  "Argument 1 at position 2 is expected to be a symbol or a list

of symbols";
Nucleus::atom = "Unable to determine atomic symbol";

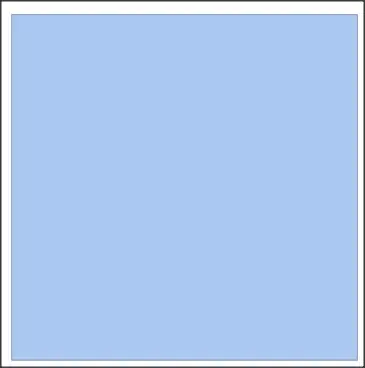

The BoundaryMeshRegion of some rectangle is:

bmr=BoundaryMeshRegion[Rectangle[{0, 0}]]

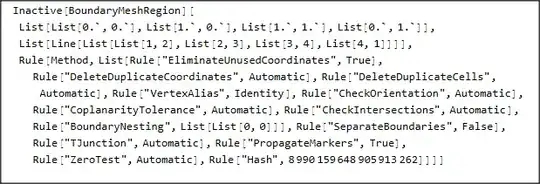

and the FullForm of the atom:

nuc= Nucleus[bmr];
FullForm[nuc]

We may now change the coordinate of the first vertex. Note that the real number are written with a tick:

changed= nuc /. {0.`, 0.`} -> {0.5, 0};

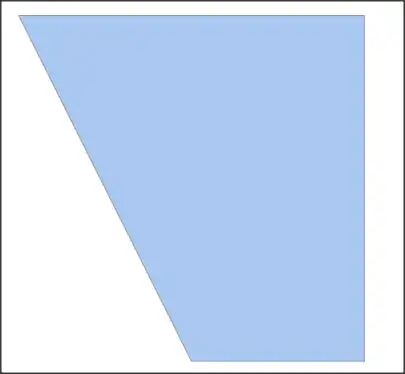

Finally we may re-activate the changed rectangle:

Activate[changed]
