Zoom MolecularPlot on protein region

Question

When I import protein and ligand from two PDB files and display them together using Show I cannot see the ligand since it is tiny in comparison with protein. How can I zoom the MoleculePlot on ligand automatically?

Can you provide example code so that people who want to answer don't have to make up an example on their own? Otherwise, MoleculePlot returns a Graphics object, so the same solutions you use for zooming in a Graphics object can be used here as well. — bobthechemist, Dec 09 '22 at 13:05
I cannot provide an example since I cannot attach two large files in pdb format — Филипп Цветков, Dec 09 '22 at 15:02

Bob Hanlon · Answer 1 · 2022-12-12T15:29:00.370

Clear["Global`*"]

Without a minimal example to work with, I can only suggest a general direction.

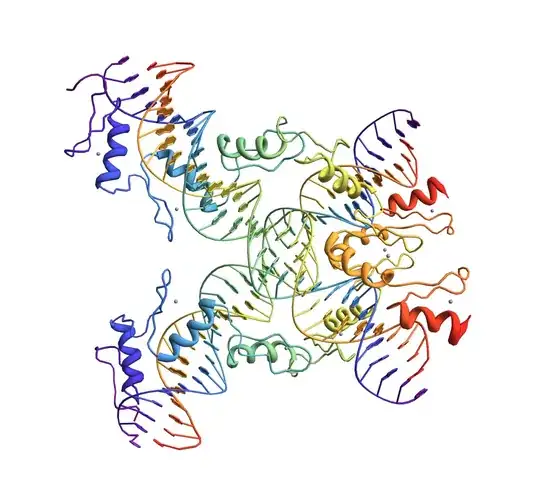

img = Import[
   "http://www.rcsb.org/pdb/download/downloadFile.do?fileFormat=pdb&\
compression=NO&structureId=1tf6", "PDB", ImageSize -> Large]

EDIT: Added control labels and axes and box ratio controls

{{xmin, xmax}, {ymin, ymax}, {zmin, zmax}} =
  Round[Values@AbsoluteOptions[img, PlotRange][[1]]];
Manipulate[
 Show[
  img,
  PlotRange -> {xint, yint, zint},
  ImageSize -> Large,
  SphericalRegion -> True,
  Axes -> axes,
  AxesLabel -> (Style[#, 14] & /@ {x, y, z}),
  Boxed -> axes,
  BoxRatios -> br],
 {{xint, {xmin, xmax}, "x interval"}, xmin, xmax, Round[(xmax - xmin)/100],
  ControlType -> IntervalSlider,
  ImageSize -> Large,
  Appearance -> "Labeled"},
 Row[{
   Control[
    {{yint, {ymin, ymax}, "y interval"}, ymin, ymax,
     Round[(ymax - ymin)/100],
     ControlType -> IntervalSlider,
     ImageSize -> Large,
     Appearance -> "Labeled"}],
   Spacer[20],
   Control[
    {{br, Automatic, "Box\nRatio"}, {Automatic, {1, 1, 1}}}]}],
 Row[{
   Control[
    {{zint, {zmin, zmax}, "z interval"}, zmin, zmax,
     Round[(zmax - zmin)/100],
     ControlType -> IntervalSlider,
     ImageSize -> Large,
     Appearance -> "Labeled"}],
   Spacer[40],
   Control[
    {{axes, False}, {True, False}}]}],
 SynchronousUpdating -> False,
 TrackedSymbols :> All]

Unfortunately, this code just cut the molecule, but not zoom on it. I need to enlarge the particular region centered to the ligand. — Филипп Цветков, Dec 12 '22 at 14:38
I don't understand your comment. As the plot range is reduced the remaining image is enlarged, i.e., zoomed in on. — Bob Hanlon, Dec 12 '22 at 14:55
