Circle as a function parameter

Question

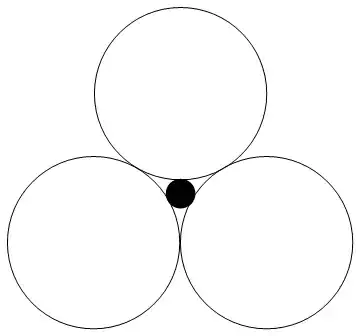

What I want to do is to find a circle which is tanget to the three big ones. I tried the code below:

    findSmallCircle[c1_Circle, c2_Circle, c3_Circle] :=

But how do I get the center point and radius of each circle c1, c2, c3, and if this cannot be done, what else can I try?

Excuse me if this is a silly question -- I am new to Mathematica

Answer 1

First of all your parameter syntax is not correct; you'll want to use c1_Circle which is a Pattern named c1 for an expression with a head Circle. Your c1_?Circle is a Pattern named c1 that passes the test function Circle (see PatternTest), which of course is not valid for the built-in function Circle.

---

You removed the issue above from your question. What remains seems underspecified. You can extract the centers and radii either with patterns (useful for inserting these parts into a specific expression), or simply using Apply, e.g.:

f1[cirs__Circle] := {cirs} /.  Circle[center_, radius_] :> {center, radius}

f1[Circle[{0, 0}, 1], Circle[{1, 1}, 3], Circle[{2, 2}, 2]]

{{{0, 0}, 1}, {{1, 1}, 3}, {{2, 2}, 2}}

f2[cirs__Circle] := List @@@ {cirs}

f2[Circle[{0, 0}, 1], Circle[{1, 1}, 3], Circle[{2, 2}, 2]]

{{{0, 0}, 1}, {{1, 1}, 3}, {{2, 2}, 2}}

If you are interested in the actual calculation of the inner circle you will need to describe the characteristics of the function input.

---

Since the element manipulation was indeed your focus let me expand upon what I wrote above with a few additional examples.

The replacement rule Circle[center_, radius_] :> {center, radius} is a very simple example of the kind of destructuring that is possible with pattern-based transformations. These can be done either with RuleDelayed as above, or as part of a SetDelayed definition. You can also be more specific with the patterns, or provide for different cases to accommodate a flexible syntax. The documentation for Circle shows a number of different acceptable syntax forms, and to be robust your function should be able to handle these to some degree. As an example I will give a rule that will give a list {x, y, radius} for a variety of Circle forms.

{
  Circle[{1, 2}],
  Circle[{3, 4}, 7.5],
  Circle[{0, 0}, 1, {Pi/6, 3 Pi/4}]
} /. Circle[{x_, y_}, r_: 1, ___] :> {x, y, r}

{{1, 2, 1}, {3, 4, 7.5}, {0, 0, 1}}

Note that right-hand-side of :> could be any expression into which to substitute values for x, y, r. Here the pattern r_:1 represents a pattern with an Optional value 1 which is used in the case of Circle[{1, 2}].

If you do not require the flexibility and argument testing of pattern matching Apply can be used, of which @@@ is a short form for Apply at levelspec 1. In addition to List as used above this can be any head or function. For example:

{#, #2} & @@ Circle[{0, 0}, 1, {Pi/6, 3 Pi/4}]

{{0, 0}, 1}
