I am trying to get VertexCoordinates of this picture of the problem https://artofproblemsolving.com/wiki/index.php/2022_AMC_10A_Problems/Problem_21?fbclid=IwAR2bdHwJEpjarZEwope1hYOcnnXqnvzae38Y8ZrfWKCKQunfAuT9s30q32o

I tried with syntax PolyhedronData["Dodecahedron", "VertexCoordinates"] but I do not know the name of Polyhedron. How can I get VertexCoordinates of this polyhedron?

enter image description here

minhthien_2016
  • 3,347
  • 14
  • 22

1 Answers1

3

That looks like half of a truncated octahedron.

truncOctVertices = PolyhedronData["TruncatedOctahedron", "VertexCoordinates"]

will get you all of the vertex coordinates.

We can filter to get just the lower half (z value nonpositive):

lowHalfVertices = Select[truncOctVertices, NonPositive@*Last]

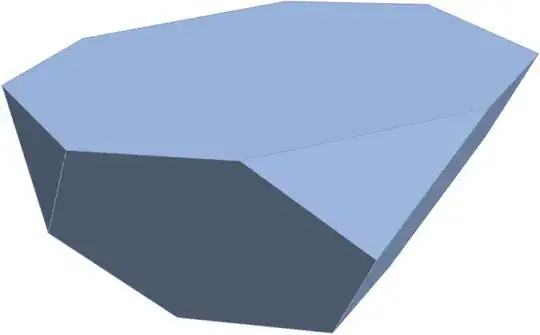

We can visualize to confirm:

ConvexHullMesh[lowHalfVertices]

enter image description here

lericr
  • 27,668
  • 1
  • 18
  • 64
  • How can I get FaceIndices by usingPolyhedronData["lowHalfVertices", "FaceIndices"]? – minhthien_2016 Dec 22 '22 at 01:48
  • What are you trying to do? FaceIndices would give you insight into Mathematica's representation of a polyhedron, and that seems sort of out of left field based on your original question. Also, once we've turned it into a BoundaryMeshRegion, we have a different representation. There are functions that allow you to extract data from mesh regions: MeshPrimitives, MeshCells, MeshCoordinates, and yes, MeshCellIndex. – lericr Dec 22 '22 at 02:08
