Creating an interactive plot that zooms into the function

Question

Suppose we want an interactive plot for the code:

Clear["Global`*"]
b = 3 (* b is an integer from 2 to 10 *)
x1 = 0
x2 = 1
y1 = 0
y2 = 1 (* x1,x2,y1,y2 are real numbers which represent the subspace
           [x1,x2] x [y1,y2] of R^2*)
(The functions below are "preliminary functions" of the true
  function I wish to graph (note k is a real number))
s = Max[{Floor[Log[b, RealAbs[x1]]],
   Floor[Log[b,
     RealAbs[x2]]]}]
g1[xr_, r_] :=
 g1[xr, r] =
  Round[(10^(s + 1)/b) Sin[r xr] + (10^(s + 1)/b)]
(* Below is the true function I wish to graph *)
f[x_, k_] :=
 f[x, k] =
  N[y2 - ((y2 - y1)/(10^(s + 1))) Sum[
      g1[Sum[RealDigits[x, b, k, -r][[1]][[z]], {z, r + 1 - s, k}],
        r + 1 - s]/b^r, {r, s, 8}]]
p1= 10000 (* We want this to be the integer approaching infinity )
p = (x2-x1)/p1 (The increment of the x-values between x1+p
and x2 which we're graphing )
ListPlot[Table[{x, f[x, 20]}, {x, x1 + p, x2, p}]] (Graph of f we want
to convert to an interactive plot*)

Similar to the answer to this question, we want b,x1,x2,y1,y2,k, p1 and q to be sliders. We define points $(q_1,q_2)$, where $x_1\le q_1\le x_2$ and $y_1\le q_2\le y_2 $ such that slider $z\in\mathbb{R}$ zoom in point $(q_1,q_2)$ of ListPlot of $f$

I looked into the documentation for manipulation but couldn't find any options for zooming. Despite this, I used the the answer stated here.

Attempt:

Using this answer, I tried the following but I got an undefined output:

Clear["Global`*"]
(* Preliminary Functions )
( b, x1, x2, y1, y2, z, p1, q are now variables of a function*)
s[b_, x1_, x2_] :=
 s[b, x1, x2] =
  Max[{Floor[Log[b, RealAbs[x1]]], Floor[Log[b, RealAbs[x2]]]}]
g1[b_, x1_, x2_, xr_, r_] :=
 g1[b, x1, x2, xr, r] =
  Round[(10^(s[b, x1, x2] + 1)/b) Sin[r xr] + (10^(s[b, x1, x2] + 1)/
      b)]
(Below is the true function I wish to graph)
f[b_, x1_, x2_, y1_, y2_, x_, k_] :=
 f[b, x1, x2, y1, y2, x, k] =
  N[y2 - ((y2 - y1)/(10^(s[b,x1,x2]+ 1))) Sum[
      g1[b, x1, x2,
        Sum[RealDigits[x, b, k, -r][[1]][[z]], {z,
          r + 1 - s[b, x1, x2], k}], r + 1 - s[b, x1, x2]]/b^r, {r,
       s[b, x1, x2], 8}]]
(* Below is the interactive graph *)
Manipulate[t = -Log[z];
 ListPlot[Table[{q[[1]] + q[[2]] x - t - t x,
    f[b, x1, x2, y1, y2, q[[1]] + q[[2]] x + t + t x, k]}, {x,
    x1 + (x2 - x1)/p1, x2, (x2 - x1)/p1}]], {b, 2, 10, 1}, {x1, -5,
  5}, {x2, -5, 5}, {y1, -5, 5}, {y2, -5, 5}, {k, 1, 20, 1}, {p1, 1,
  50000}, {{z, 0.50, "zoom"}, 0,
  0.999}, {q, {x1, x2}, {y1, y2}}]

Perhaps this was meant for complex-valued functions. How do we fix this (or find a better code)?

Edit: I made a typo in my code but I still get an undefined output.

**Second Edit: See my answer. I wish to convert the interactive plot into a hyperlink."

Answer 1

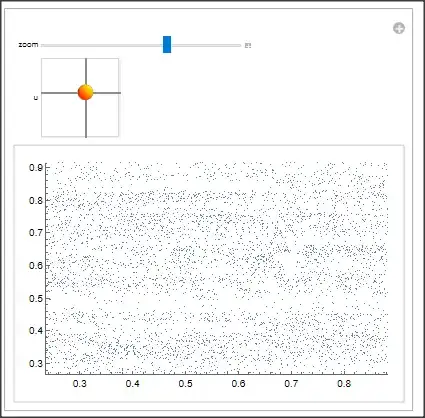

Something like:

tab = Table[{x, f[x, 20]}, {x, x1 + p, x2, p}];
Manipulate[
 ListPlot[tab,
  PlotRange -> {{Max[0, u[[1]] - b],
     Min[1, u[[1]] + b]}, {Max[0, u[[2]] - b], Min[1, u[[2]] + b]}}]
 , {{b, 0.25, "zoom"}, 0.01,
  0.5}, {{u, {0.25, 0.25}}, {0, 0}, {1, 1}}]

Answer 2

All you have to do is sign in to your Mathematica account on your browser, then wrap your Manipulate expression with CloudDeploy as follows:

CloudDeploy[Manipulate[expr,{u,u_min,u_max}]]

So, for you it will simply be

CloudDeploy[Manipulate[
 ListPlot[tab[x1, x2, y1, y2, b, k, p],
  PlotRange -> {{Max[0, q[[1]] - z],
     Min[1, q[[1]] + z]}, {Max[0, q[[2]] - z],
     Min[1, q[[2]] + z]}}], {{x1, 0, "x1"}, -1,
  1}, {{x2, 1, "x2: x2>x1"}, -1, 1}, {{y1, 0, "y1"}, -1,
  1}, {{y2, 1, "y2: y2>y1"}, -1, 1}, {b, 2, 10, 1}, {k, 1, 20,
  1}, {{p, 20000,
   "p: p is an integer where (x2-x1)/p is an increment between each \
x-value graphed"}, 1000, 20000}, {{z, 1, "zoom"}, 0.01,
  1}, {{q, {0.5, 0.5}}, {0, 0}, {1, 1}}]]

Your output will then be the hyperlink your looking for. It'll look like this

CloudObject["https://www.wolframcloud.com/obj/a3920bcd-b23f-4bd1-80ab-\
d36e77ad0b72"]

You can then use the "Share" option to generate the URL, or even a QR code that you can share with whom you wish.

Answer 3

Using @Daniel Hubers answer, this is the answer I am looking for:

Clear["Global`*"]
(* Preliminary Function *)
s[x1_, x2_, b_] :=
 s[x1, x2, b] =
  Max[{Floor[Log[b, RealAbs[x1]]],
    Floor[Log[b,
      RealAbs[x2]]]}]
g1[x1_, x2_, b_, xr_, r_] :=
 g1[x1, x2, b, xr, r] =
  Round[(10^(s[x1, x2, b] + 1)/b) Sin[r xr] + (10^(s[x1, x2, b] + 1)/
      b)]
f[x1_, x2_, y1_, y2_, b_, x_, k_] :=
 f[x1, x2, y1, y2, b, x, k] =
  N[y2 - ((y2 - y1)/(10^(s[x1, x2, b] + 1))) RealAbs[
      Sum[g1[x1, x2, b,
          Sum[RealDigits[x, b, k, -r][[1]][[z]], {z,
            r + 1 - s[x1, x2, b], k}], r + 1 - s[x1, x2, b]]/b^r, {r,
         s[x1, x2, b], 8}] -
       10^(s[x1, x2, b] + 1)]]
tab[x1_, x2_, y1_, y2_, b_, k_, p_] :=
  tab[x1, x2, y1, y2, b, k, p] =
   Table[{x, f[x1, x2, y1, y2, b, x, k]}, {x, x1 + (x2 - x1)/p,
     x2, (x2 - x1)/p}];
(* Below is the interactive plot *)
Manipulate[
 ListPlot[tab[x1, x2, y1, y2, b, k, p],
  PlotRange -> {{Max[0, q[[1]] - z],
     Min[1, q[[1]] + z]}, {Max[0, q[[2]] - z],
     Min[1, q[[2]] + z]}}], {{x1, 0, "x1"}, -1,
  1}, {{x2, 1, "x2: x2>x1"}, -1, 1}, {{y1, 0, "y1"}, -1,
  1}, {{y2, 1, "y2: y2>y1"}, -1, 1}, {b, 2, 10, 1}, {k, 1, 20,
  1}, {{p, 20000,
   "p: p is an integer where (x2-x1)/p is an increment between each

x-value graphed"}, 1000, 20000}, {{z, 1, "zoom"}, 0.01,
  1}, {{q, {0.5, 0.5}}, {0, 0}, {1, 1}}]

However, I wish to convert the interactive plot into a hyperlink.
