I use DSolve and NDSolve to solve a set of differential equations respectively, where NDSolve specifies an implicit Euler method, and subtract the results of both solutions to obtain the truncation error curve, maximum truncation error, and corresponding positions of the implicit Euler method.

The code is as follows:

tstart = 0;
tend = 0.08;
stepsize = 0.00006;
n = (tend - tstart)/stepsize;
(*DSolve*)
sol1 = DSolve[{l il'[t] == vl[t], c vc'[t] == ic[t],
    ir[t] == -ic[t] + il[t], vl[t] == 24 - vc[t], vr[t] == vc[t],
    vr[t] == r ir[t], il[0] == 0, vc[0] == 0}, {ir[t], il[t], ic[t],
    vr[t], vl[t], vc[t]}, t];
il[t_] = il[t] /. sol1[[1]];
pars1 = {r -> 22, l -> 2 10^-1, c -> 1 10^-4};
a = Evaluate[il[t] /. pars1];
Dil = Table[a, {t, 0, 0.08, stepsize}, 1];
(*NDSolve*)
components1 = {vI == ll iL'[t] + vC[t],
   vC'[t] == iL[t]/cc - vC[t]/(rr cc), vC[0] == 0, iL[0] == 0};
pars2 = {vI -> 24, rr -> 22, ll -> 2 10^-1, cc -> 1 10^-4};
sol2 = NDSolve[{components1} /. pars2, {iL}, {t, 0, .2},
   StartingStepSize -> stepsize,
   Method -> {"FixedStep", Method -> {"LinearlyImplicitEuler"}}];
a = Evaluate[iL[t] /. sol2[[1]]];
NDil = Table[a, {t, 0, 0.08, stepsize}, 1];
(*Calculation error*)
errort = Table[tstart + stepsize*i, {i, 0, n}];
ilerror = Table[0, {i, 0, n}];
For[k = 1, k < n + 1, k++,
  ilerror[[k]] = Dil[[k, 1]] - NDil[[k, 1]];
  ];
p1 = Table[Transpose[{errort, ilerror}], 1];
ListLinePlot[p1, AxesLabel -> {"s", "il[t]/A"},
 PlotLegends -> {"LinearlyImplicitEuler"}, PlotStyle -> {Red},
 PlotRange -> All]
ilpeak = FindPeaks[Abs[ilerror]]
{{151, 0.00191949}}

From the operation results, we can see that the maximum truncation error of il at the 151st point is 0.001919.

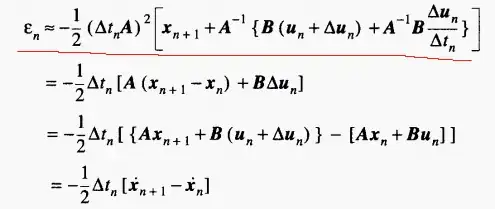

The following image is an error estimate for the implicit Euler method seen in a book. enter image description here

The calculation code for this method is as follows:

{r = 22, l = 2 10^-1, c = 1 10^-4, vi = 24, stepsize = 0.00006};
\[CapitalDelta]vi = 0;
A = {{0, -1/l}, {1/c, -1/(r c)}};
G = Inverse[A];
B = {1/l, 0};
Subscript[X, n + 1] =
  Transpose[{{0.7909637667818027, 14.280468663134522}}];(*The il value of the 152nd position is calculated by DSolve*)
Error = Transpose[{{ilerror, vcerror}}];
Error = (-1/2*stepsize*stepsize*A . A) . (Subscript[X, n + 1] +
    G . (B*(vi + \[CapitalDelta]vi) +
       G . B*\[CapitalDelta]vi/stepsize))
{{0.000012766639933902838`}, {0.00028584581003691066`}}

The 0.000012766639933902838 in the calculation result is the il error calculated using the error estimation formula in the literature(ss shown in the picture).

The comparison shows that the results calculated by the two methods (0.001919... and 0.0000127...) differ greatly. What is the reason for this? Is it related to Mathematica's built-in algorithm?

chen chen
  • 165
  • 6
  • 1
    Try implicitEuler = {"FixedStep", Method -> {"ImplicitRungeKutta", "Coefficients" -> "ImplicitRungeKuttaRadauIIACoefficients", "DifferenceOrder" -> 1}} instead of "LinearlyImplicitEuler", which is a different method. – Michael E2 Mar 20 '23 at 11:09
  • To learn more about linearly implicit Euler method, see e.g. https://scicomp.stackexchange.com/q/3247/5331 – xzczd Mar 20 '23 at 12:47
  • @MichaelE2 Hi, MichaelE2! I tried the method you gave for NDSolve calculation, and the final result is very close to the original... – chen chen Mar 21 '23 at 03:35
  • 1
    Then please show us your modified code. – xzczd Mar 21 '23 at 09:07
  • Which book are you refering to? 2. What's the definition of $\mathit{\mathbf{A}}$, $\mathbf{B}$, $\mathbf{u}_n$, etc.? 3. Are you sure you've implemented the formula correctly? I bet your understanding for $\mathbf{u}_n$ is wrong, it's probably a vector just like $\mathbf{x}_n$ from the context.
  • – xzczd Mar 21 '23 at 10:13
  • @xzczd I also asked in the community. This book is attachedlink – chen chen Mar 21 '23 at 11:09
  • Then it's clear your implementation is wrong. The $\mathbf{u}_n$ should be a vector. – xzczd Mar 21 '23 at 11:37
