Autocomplete InputField

Question

Is there a way to define a InputField that displays a list of options as you type? More specifically I'm looking for an InputField that specifically autocompletes as you type.

The functionality is similar to an InputField and MenuView element.

Examples of such feature would be the textbox here or here.

EDIT: Ideally the interface should work as much like Google's homepage as possible.

Specific Features

1. Menu is not case sensitive
2. Clickable items in drop down menu
3. Ideally, the menu is hidden until user types into textbox
4. Restrict number of items in output.

Here is some example code I am working on. It currently only meets criteria #2.

EDIT2: Here is my next set of code which meets the following criteria: case insensitive, has clickable menus, and restricts the number of output. One funny thing, is that the menu isn't clickable all the way across, but only where the text is.

Answer 1

My humble contribution:

(* Use this function to style list elements *)
listItemStyle[item_] := Mouseover[#, Style[#, Background -> LightBlue]] &@ MouseAppearance[Framed[item], "LinkHand"];

(* This filters the list of data and returns a clickable list *)
SetAttributes[autoComplete, HoldFirst];
autoComplete[s_, data_] := If[
  StringLength[s] > 0,
  EventHandler[#, {"MouseClicked" :> (s = #)}] & /@ Select[data, StringMatchQ[#, s ~~ __, IgnoreCase -> True] &],
  {}
  ]

(* Responsible for final output *)
SetAttributes[inputWithAutoComplete, HoldFirst];
inputWithAutoComplete[s_, data_, max_: 5] := Column[{
   InputField[Dynamic[s], String, ContinuousAction -> True],
   Dynamic[listItemStyle /@ (Take[#, Min[Length[#], max]] &@autoComplete[s, data] /. {} -> "") // TableForm]
   }, Left, 1]

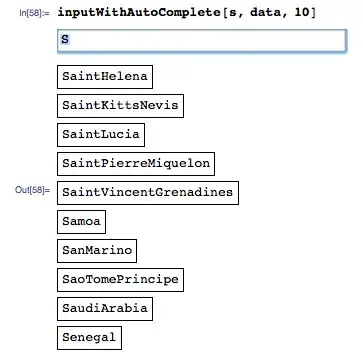

Try it using:

data = CountryData[];
s = "";
inputWithAutoComplete[s, data, 10]

Version 2.0

I started all over and refactored the code to make it better. There are many advantages so this is definitely the one to use, but I'm not deleting what I posted earlier since the new version is also substantially different, and both may be of interest.

(* Returns expr with styles off or on depending on whether the expr \
is hovered. Additionally the cursor as the mouse if hovering the \
expression can be set. *)

MouseoverStyled[expr_, off_, on_, cursor_: "LinkHand"] := Deploy[
  MouseAppearance[Mouseover[
    Style[expr, off],
    Style[expr, on]
    ], cursor]
  ]

(* Returns a list item with the given text *)

item[text_] := MouseoverStyled[Framed[text], {}, {Background -> LightBlue}]

(* Create a list of clickable items *)

items[labels_, func_] := EventHandler[
     item[#], {
      "MouseClicked" :> func[#]
      }
     ] & /@ labels;

(* Picks out the n first elements that start with input *)

filter[input_, data_, n_: 10] := Take[#, Min[Length[#], n]] &@Select[data, StringMatchQ[#, input ~~ __, IgnoreCase -> True] &]

(* Final presentation *)

inputWithAutoomplete[data_] := DynamicModule[{s = ""},
  Column[{
    InputField[Dynamic[s], String, ContinuousAction -> True],
    Dynamic@If[StringLength[s] > 0, Column[items[filter[s, data], (s = #) &]], ""]
    }]]

Test it like this:

inputWithAutoomplete[Last /@ CountryData[]]

or with just CountryData[] for more countries, but I noticed this can be quite slow (it didn't use to be - but since V10 with the EntityValue thing.)

Answer 2

I also took a crack at this. I think I made it look pretty close to the jquery example you posted. Figuring out how to move the insertion point to the end of the word once a suggestion is selected was a bit of a struggle. As a result, there's a DynamicWrapper in there that may be unstable.

Input is the list of possible values from which you'd like to draw suggestions.

Enjoy!

autocompleteInputField[possibilities:{_String..}]:=DynamicModule[{nb,ind=0,txt,suggestions,suggestedElements,returnKeyTrigger=False},

suggestions = Dynamic[
                If[Length[suggestedElements] < 1 || StringLength[txt] <= 1,
                    "",
                (* else *)
                    Column[
                        MapIndexed[
                            Button[
                                Function[panel,Mouseover[Style[panel,Background->If[ind===First[#2],LightBlue,White]],Style[panel,Background->LightBlue]]]@Pane[#1,ImageMargins->0],
                                (
                                    txt=#1;
                                    returnKeyTrigger=True
                                ),
                                Appearance->"Frameless"
                            ]&,
                            If[!(If[Length[suggestedElements]===1,First[suggestedElements]===txt,False]) && StringLength[txt]>1,
                                suggestedElements,
                                {}
                            ]
                        ],
                        Background->White,
                        Frame->True
                    ]
                ]
            ];
Column[{
    DynamicWrapper[
        EventHandler[
            InputField[
                Dynamic[txt],
                String,
                ContinuousAction->True,
                BaseStyle->{FontFamily->"Arial"}
            ],
            {
                "DownArrowKeyDown":>(ind=Min[ind+1,Length[suggestedElements]]),
                "UpArrowKeyDown":>(ind=Max[0,ind-1]),
                "ReturnKeyDown":>
                    If[Length[suggestedElements]>0 && ind>0,
                        txt=suggestedElements[[ind]];
                        ind=0;
                        returnKeyTrigger=True
                    ]
            }
        ],
        If[returnKeyTrigger,
            returnKeyTrigger=False;
            SelectionMove[nb,Next,Word]
        ],
        SynchronousUpdating->False
    ],
    suggestions
}],

Initialization:>(
    nb = EvaluationNotebook[];
    txt="";
    suggestedElements:=Pick[possibilities,StringMatchQ[possibilities,txt~~__]]
    )

]

Answer 3

Maybe overkill but it was educational to try:

DynamicModule[{},
 EventHandler[
  Overlay[{
          Dynamic@Framed[
             Row[{Style[x, Transparent, 15, Bold], Style[rest, GrayLevel@.6, 15, Bold]}],
              ImageSize -> {280, 30}, Alignment -> Top, FrameMargins -> {{5, 0}, {0, 1}}],
          InputField[Dynamic@x, String, BaseStyle -> {Bold, Black, 15}, Alignment -> Top,
                     ContinuousAction -> True, ImageSize -> {280, 30}, FrameMargins -> 0]

          }, {2, 1}, 2]
         , {"ReturnKeyDown" :> (x = x ~~ rest),
            "UpArrowKeyDown" :> (names = RotateLeft@names),
            "DownArrowKeyDown" :> (names = RotateRight@names)}
             ]
 , Initialization :> (x = "";
     names := Names["System`" ~~ x ~~ "*"];
     rest := If[Length@names == 0 \[Or] x == "", "",
                StringDrop[First[names],
                Clip[StringLength@x, {0, StringLength@First[names]}]]]
                     )
 ]

Please forgive me but I have no time to make it more user friendly.

There is no menu, only auto filling which you accept with Enter or you can also switch between fillings with arrows.

I have a couple of ideas, I'm going to write them tomorrow.

Answer 4

Note: This appears to really slowly in M9, although it works well in M8. It probably is better to use teedr's until it can be figured out what is causing the slow speeds.

The following seems to work pretty well. I wrapped the options in a Pane and Framed so the entire row is clickable.

ClearAll[AutoInputField];
SetAttributes[AutoInputField, HoldAllComplete];

AutoInputField /: MakeBoxes[AutoInputField[field_,
    list_: {}, displayNum_: Infinity, imageSize_: 100], form_] := Module[{focus = False},

   With[{tag = SymbolName@Unique[StringJoin["g", ToString[$SessionID]]] },

    CurrentValue[$FrontEndSession, {TaggingRules, tag, "x"}] = "";

    field = Dynamic@DynamicModule[{Only = Function[{l, n}, Take[l, Min[Length[l], n]]]},

       If[focus ||
         Not[CurrentValue[$FrontEndSession, {TaggingRules, tag, "x"}] === ""]
        , Column[Map[Function[
           EventHandler[Framed[Pane[#,
              ImageSize -> Dynamic[(CurrentValue[EvaluationNotebook[], WindowSize][[1]] - 120)]
              ], FrameMargins -> 0, FrameStyle -> Gray], {

             "MouseClicked" :> (
               CurrentValue[$FrontEndSession, {TaggingRules, tag, "x"}] = #
               )}]],

          Select[list, StringMatchQ[#,
              CurrentValue[$FrontEndSession, {TaggingRules, tag, "x"}]
               ~~ ___, IgnoreCase -> True] &]~Only~displayNum]], ""]
       ];

    ToBoxes@EventHandler[
      InputField[
       Dynamic[
        CurrentValue[$FrontEndSession, {TaggingRules, tag, "x"}]
        ],
       String, ContinuousAction -> True, ImageSize -> imageSize], {

       "ReturnKeyDown" :> ( (* focusForcedHidden *)
         CurrentValue[$FrontEndSession, {TaggingRules, tag, "x"}] =
              Append[
                Select[list, StringMatchQ[#,
                   CurrentValue[$FrontEndSession, {TaggingRules, tag, "x"}]
                ~~ ___, IgnoreCase -> True] &]
            , ""][[1]];
         focus = False;
         ),
       "MouseEntered" :> ( (* focusForcedDisplay *)
         focus = True;
         ),
       "MouseExited" :> ( (* focusForcedDisplay *)
         focus = False;
         ),
       "MouseUp" :> ( (* If[x===list[[1]] && Length@list===1] *)
         focusForce = True;
         ),
       "KeyDown" :> (
         focusForce  = False;
         )
       },
      PassEventsDown -> True
      ]
    ]];

And the following outputs an AutoCompelete textbox.

(* AutoInputField[d,Map[(ToString[#])&,Table[i^2,{i,10}]]] *)
AutoInputField[d, {"ab", "abc", "100", "1", "16"}]
Pane[d,
 ImageSize -> {200, 80},
 Scrollbars -> True
 ]
