Graphics`Mesh`FindIntersections not working in Mathematica 13.3

Question

I just updated my Mathematica for Windows to 13.3 and when I tried to use the "Graphics MeshFindIntersections" command it doesn't seem to work. Have they replaced it with some other command or is it a bug in the new update?

Code used

T[rh_, Q_, P_] := 1/(4 \[Pi] rh) (1 + 8 \[Pi] P rh^2 - Q^2/rh^2)
M[rh_, Q_, P_] := rh/2 + (4 \[Pi] P rh^3)/3 + Q^2/(2 rh)
V[rh_] := 4/3 \[Pi] rh^3
S[rh_] := \[Pi] rh^2
G[rh_, Q_, P_] = Simplify[M[rh, Q, P] - (T[rh, Q, P] S[rh])];
{rc, Pc} =
  SolveValues[{D[T[rh, Q, P], {rh, 2}] == 0,
     D[T[rh, Q, P], rh] == 0}, {rh, P}][[2]];
Vc = V[rc]; Tc = T[rc, Q, Pc]; Gc = G[rc, Q, Pc];
T = t Tc; P = p Pc; rh = z rc; G = g Gc;
t[z_, p_] =
  SolveValues[{T == 1/(4 \[Pi] rh) (1 + 8 \[Pi] P rh^2 - Q^2/rh^2)},
    t][[1]];
g[z_, p_] =
  SolveValues[{G == (3 Q^2)/(4 rh) + rh/4 - 2/3 P \[Pi] rh^3}, g][[1]];
pplt = ParametricPlot[Evaluate@{t[z, 0.5], g[z, 0.5]}, {z, 0, 10},
  PlotRange -> {{0.6, 1.3}, {0.8, 1.3}}, AspectRatio -> 1]
ip = Graphics`Mesh`FindIntersections@pplt

Ah my mistake! Even if I change the name, the problem still exists. — codebpr, Aug 23 '23 at 13:38
t and g diverge at zero. Therefore, you can not plot from zero. You may plot z e.g.:{z, 0.1, 10} — Daniel Huber, Aug 23 '23 at 13:40
Ok I will try that. But will it rectify the intersection issue? — codebpr, Aug 23 '23 at 13:42
In the definitions t[...],g[...]the function arguments z,p don't appear on the righthand side! Again t,g are used as parameter names too, what's probably wrong — Ulrich Neumann, Aug 23 '23 at 13:44
Its unreliability goes back a ways: https://mathematica.stackexchange.com/questions/41496/graphicsmeshfindintersections-fails-to-detect-intersections — Michael E2, Aug 25 '23 at 01:28
Also related: https://mathematica.stackexchange.com/questions/216084/graphicsmeshfindintersections-get-extra-intersections?rq=1#comment595957_216084 — Michael E2, Aug 25 '23 at 11:05

cvgmt · Accepted Answer · 2023-08-25T01:23:19.367

11

$Version

"13.3.1 for Microsoft Windows (64-bit) (July 24, 2023)"

pt = Graphics`Mesh`FindIntersections[pplt // DiscretizeGraphics,
  Graphics`Mesh`AllPoints -> False]
Show[pplt, Graphics[{Red, AbsolutePointSize[10], Point@pt}]]

{{0.757021, 1.07072}}

It must be a bug. Here we test another example.

Clear["Global`*"];
pp = ParametricPlot[{Sin[10 t], Sin[9 t]}, {t, 0, 2 π}];
intersections1 = Graphics`Mesh`FindIntersections[pp];
intersections2 =
  Graphics`Mesh`FindIntersections[pp // DiscretizeGraphics,
   Graphics`Mesh`AllPoints -> False];

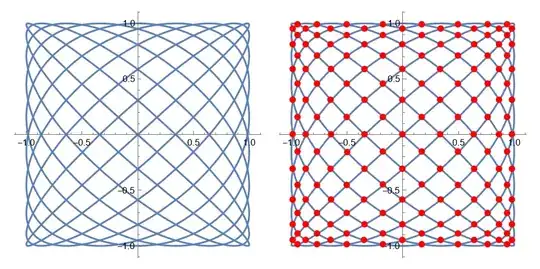

{Show[pp, Epilog -> {Red, PointSize[Large], Point@intersections1}],
 Show[pp, Epilog -> {Red, PointSize[Large], Point@intersections2}]}

edited Aug 25 '23 at 01:23

answered Aug 23 '23 at 13:55

cvgmt

72,231
4
75
133

Are the new constraints required for the new 13.3 version of Mathematica or are they just for this particular problem? – codebpr Aug 23 '23 at 14:01
1

@codebpr Seems be a bug. Here just a working around. – cvgmt Aug 23 '23 at 14:05
@cvgmt And the code really runs on v13.3 without recursion error due to naming errors (function T[...]and parameter T) and others?? I tried v12.2 and got several errors. – Ulrich Neumann Aug 23 '23 at 14:39
@UlrichNeumann Without any errors message in 13.3.1 – cvgmt Aug 23 '23 at 14:42
@cvgmt Astonishing, thanks. – Ulrich Neumann Aug 23 '23 at 14:46

score 2 · Answer 2 · answered Jan 04 '24 at 15:47

2

Same problem with Annotation is in Finding intersection of two curves using mesh functions:

Block[{Annotation = # &}, ip = Graphics`Mesh`FindIntersections@pplt]
(* {{0.757021, 1.07072}} *)

answered Jan 04 '24 at 15:47

Goofy

2,767
10
12
