When I do SetOptions[Callout,CalloutStyle->Red] and then do Plot[Callout[x^2],{x,-3,3}], I get plot with a regular gray (not red) callout marker. Can I not set those options globally?

bmclaurin
  • 341
  • 1
  • 8

2 Answers2

2

A workaround:

calloutopts = Sequence[CalloutStyle -> Red];

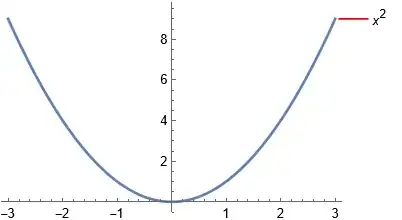

Plot[Callout[x^2, x^2, calloutopts], {x, -3, 3}]

enter image description here

MelaGo
  • 8,586
  • 1
  • 11
  • 24
  • 1
    Weird. I wonder why that works and the naive, direct way does not... that the global option setting does not work. – David G. Stork Sep 09 '23 at 22:54
  • Your answer is essentially what I've been doing. I'll hold out for a bit to see if anyone has a way to make the global setting work before accepting this as answered. Thank you. – bmclaurin Sep 10 '23 at 09:27
1

Another work-around: Use SetOptions for Plot to set the option value for PlotLabels:

SetOptions[Plot,
  PlotLabels -> Callout[Automatic, Automatic, CalloutStyle -> Red]];

Plot[x^2, {x, -3, 3}]

enter image description here

Plot[{x^2, 5 + x^2, 10 - 4 x}, {x, -3, 3}]

enter image description here
