Okhsl colour space

Question

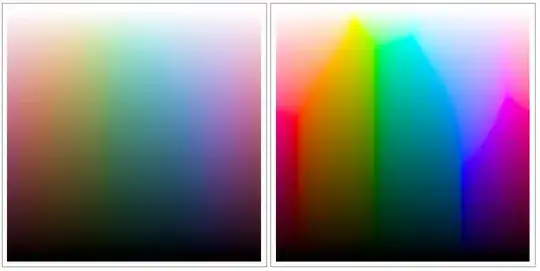

I am trying to recreate the Okhsl colour space from here. Below are the hue-saturation plots desired:

I can create something similar (code adapted from here) with

HSLtoHSV[hh_, ss_, ll_] := Module[{s = ss, l = ll}, l *= 2;
   s *= If[(l <= 1), l, 2 - l];
   {hh, (2*s)/(l + s), (l + s)/2}];
gamma[x_] := If[x >= 0.0031308, 1.055*x^(1/2.4) - 0.055, 12.92*x];
oklab[L_, a_, b_] :=
  Module[{l, m, s}, l = L + 0.3963377774*a + 0.2158037573*b;
   m = L - 0.1055613458*a - 0.0638541728*b;
   s = L - 0.0894841775*a - 1.2914855480*b;
   RGBColor[gamma[+4.0767245293*l - 3.3072168827*m + 0.2307590544*s],
    gamma[-1.2681437731*l + 2.6093323231*m - 0.3411344290*s],
    gamma[-0.0041119885*l - 0.7034763098*m + 1.7068625689*s]]];
oklch[l_, c_, h_] :=
  oklab[l^(3/2(*1*)), c l Cos[2 Pi h], c l  Sin[2 Pi h]];
oklchs[l_, c_, h_] := Lighter[oklch[l, c, h], l^3];
lchs[l_, c_, h_] := Lighter[LCHColor[l, c, h], l^3];

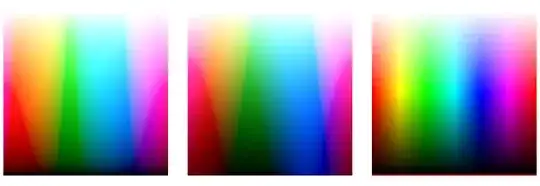

GraphicsGrid[{{ArrayPlot[
    Reverse@Table[oklchs[l, 1, h], {l, 0, 1, .01}, {h, 0, 1, .01}],
    ImageSize -> 300, Frame -> False],
   ArrayPlot[
    Reverse@Table[lchs[l, 1, h], {l, 0, 1, .01}, {h, 0, 1, .01}],
    ImageSize -> 300, Frame -> False],
   ArrayPlot[
    Reverse@Thread@
      Table[Hue[##] & @@ Quiet@HSLtoHSV[h, 1, l], {h, 0, 1, .01}, {l,
        0, 1, .01}], ImageSize -> 300, Frame -> False]}}]

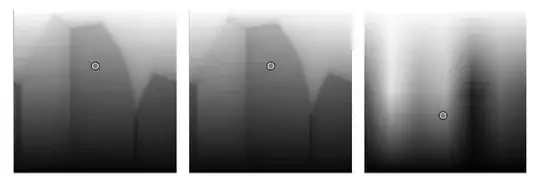

ColorConvert[%, "Grayscale"]

but I would really appreciate help adapting the C++ to the Wolfram language, as I have tried but failed to translate (since I can't seem to decode the C++).

Helpful hints also most welcome!

Answer 1

As pointed out in the comments http://bottosson.github.io/misc/ok_color.h contains all relevant functions in C, which use only basic mathematical functions of C. Phrasing the code to Mathematica is thus rather simple but tedious since its quite a bit of code. Since I am bored and 500 rep are 500 rep here we go:

(** https://bottosson.github.io/posts/gamutclipping/#oklab-to-linear-srgb-conversion **)
Lab[l_,a_,b_]:=Lab[<|"L"->l,"a"->a,"b"->b|>]
Lab[asoc_Association][s_String]:=asoc[s]
RGB[r_,g_,b_]:=RGB[<|"r"->r,"g"->g,"b"->b|>]
RGB[asoc_Association][s_String]:=asoc[s]
RGB/:ToColor[RGB[asoc_Association]]:=RGBColor[asoc["r"],asoc["g"],asoc["b"]]
linearsRGBtoOKLAB[c_RGB]:=Module[{l,m,s},
    l=0.4122214708 * c["r"] + 0.5363325363 * c["g"] + 0.0514459929 * c["b"];
    m=0.2119034982  * c["r"] + 0.6806995451  * c["g"] + 0.1073969566 * c["b"];
    s=0.0883024619 * c["r"] + 0.2817188376 * c["g"] + 0.6299787005 * c["b"];
l=l^(1/3);
m=m^(1/3);
s=s^(1/3);
Lab[
    0.2104542553 * l + 0.7936177850 * m - 0.0040720468 * s,
    1.9779984951 * l - 2.4285922050 * m + 0.4505937099 * s,
    0.0259040371 * l + 0.7827717662 * m - 0.8086757660 * s
]

]
OKLABtolinearsRGB[c_Lab]:=Module[{l,m,s},
    l = c["L"] + 0.3963377774 * c["a"] + 0.2158037573 * c["b"];
    m = c["L"] - 0.1055613458 * c["a"] - 0.0638541728 * c["b"];
    s = c["L"] - 0.0894841775 * c["a"] - 1.2914855480 * c["b"];
l=l^3;
m=m^3;
s=s^3;

RGB[
     +4.0767416621 * l - 3.3077115913 * m + 0.2309699292 * s,
    -1.2684380046 * l + 2.6097574011 * m - 0.3413193965 * s,
    -0.0041960863 * l - 0.7034186147 * m + 1.7076147010 * s
]

]
(** https://bottosson.github.io/posts/gamutclipping/#intersection-with-srgb-gamut **)
(Finds the maximum saturation possible for a given hue that fits in sRGB
Saturation here is defined as S = C/L
a and b must be normalized so a^2 + b^2 == 1)
computeMaxSaturation[a_,b_]:=Module[{k0, k1, k2, k3, k4, wl, wm, ws},
    If[-1.88170328 * a - 0.80936493 * b > 1,
        (* Red component )
        k0 = +1.19086277; k1 = +1.76576728; k2 = +0.59662641; k3 = +0.75515197; k4 = +0.56771245;
        wl = +4.0767416621; wm = -3.3077115913; ws = +0.2309699292;,
    (else) If[1.81444104  a - 1.19445276 * b > 1,
        (* Green component )
        k0 = +0.73956515; k1 = -0.45954404; k2 = +0.08285427; k3 = +0.12541070; k4 = +0.14503204;
        wl = -1.2684380046; wm = +2.6097574011; ws = -0.3413193965;,
    (else)
        ( Blue component *)
        k0 = +1.35733652; k1 = -0.00915799; k2 = -1.15130210; k3 = -0.50559606; k4 = +0.00692167;
        wl = -0.0041960863; wm = -0.7034186147; ws = +1.7076147010;
    ]];
Block[{S,kl,km,ks,l,m,s,ldS,mdS,sdS,ldS2,mdS2,sdS2,f,f1,f2},
    (*Approximate max saturation using a polynomial:*)
    S = k0 + k1 * a + k2 * b + k3 * a * a + k4 * a * b;
    (*Do one step Halley's method to get closer
    this gives an error less than 10e6, except for some blue hues where the dS/dh is close to infinite
    this should be sufficient for most applications, otherwise do two/three steps*)
    kl = +0.3963377774 * a + 0.2158037573 * b;
    km = -0.1055613458 * a - 0.0638541728 * b;
    ks = -0.0894841775 * a - 1.2914855480 * b;

    l=(1. + S * kl);
    m=(1. + S * km);
    s=(1. + S * ks);

    ldS = 3. * kl * l * l;
    mdS = 3. * km * m * m;
    sdS = 3. * ks * s * s;

    ldS2 = 6. * kl * kl * l;
    mdS2 = 6. * km * km * m;
    sdS2 = 6. * ks * ks * s;

    l=l^3;
    m=m^3;
    s=s^3;

    f  = wl * l     + wm * m     + ws * s;
    f1 = wl * ldS  + wm * mdS  + ws * sdS;
    f2 = wl * ldS2 + wm * mdS2 + ws * sdS2;
    S = S - f * f1 / (f1*f1 - 0.5 * f * f2);

    Return[S]
]

]
LC[l_,c_]:=LC[<|"L"->l,"C"->c|>]
LC[asoc_Association][s_String]:=asoc[s]
(finds L_cusp and C_cusp for a given hue
a and b must be normalized so a^2 + b^2 == 1)
findCusp[a_,b_]:=Module[{Scusp,RGBatMax,Lcusp,Ccusp},
    (First, find the maximum saturation (saturation S = C/L))
    Scusp=computeMaxSaturation[a,b];
    (Convert to linear sRGB to find the first point where at least one of r,g or b >= 1:)
    RGBatMax=OKLABtolinearsRGB[Lab[1,Scuspa,Scuspb]];
    Lcusp=(1./Max[RGBatMax["r"],RGBatMax["g"],RGBatMax["b"]])^(1/3);
    Ccusp=Lcusp*Scusp;
    LC[Lcusp,Ccusp]
]
(* Finds intersection of the line defined by
L = L0 * (1 - t) + t * L1;
C = t * C1;
a and b must be normalized so a^2 + b^2 == 1)
findGamutIntersection[a_,b_,L1_,C1_,L0_,LCcusp_LC]:=Module[{t},
    (Find the intersection for upper and lower half seprately)
    If[(((L1 - L0)  LCcusp["C"] - (LCcusp["L"] - L0) * C1) <= 0.),
        (Lower half)
        t= LCcusp["C"] * L0 / (C1 *  LCcusp["L"] +  LCcusp["C"] * (L0 - L1));,
    (else)
        (Upper half)
        (First intersect with triangle)
        t = LCcusp["C"] * (L0 - 1.) / (C1 * (LCcusp["L"] - 1.) + LCcusp["C"] * (L0 - L1));
    (*Then one step Halley's method*)
    Block[{dL,dC,kl,km,ks,ldt,mdt,sdt},
        dL = L1 - L0;
        dC = C1;

        kl = +0.3963377774 * a + 0.2158037573 * b;
        km = -0.1055613458 * a - 0.0638541728 * b;
        ks = -0.0894841775 * a - 1.2914855480 * b;

        ldt = dL + dC * kl;
        mdt = dL + dC * km;
        sdt = dL + dC * ks;
        (* If higher accuracy is required, 2 or 3 iterations of the following block can be used:*)
        Block[{LCl,LCc,l,m,s,ldt1,mdt1,sdt1,ldt2,mdt2,sdt2,r,r1,r2,ur,tr,g,g1,g2,ug,tg,b0,b1,b2,ub,tb},
            LCl = L0 * (1. - t) + t * L1;
            LCc = t * C1;

            l = LCl + LCc * kl;
            m = LCl + LCc * km;
            s = LCl + LCc * ks;

            ldt1 = 3 * ldt * l * l;
            mdt1 = 3 * mdt * m * m;
            sdt1 = 3 * sdt * s * s;

            ldt2 = 6 * ldt * ldt * l;
            mdt2 = 6 * mdt * mdt * m;
            sdt2 = 6 * sdt * sdt * s;

            l=l^3;
            m=m^3;
            s=s^3;

            r = 4.0767416621 * l - 3.3077115913 * m + 0.2309699292 * s - 1;
            r1 = 4.0767416621 * ldt1 - 3.3077115913 * mdt1 + 0.2309699292 * sdt1;
            r2 = 4.0767416621 * ldt2 - 3.3077115913 * mdt2 + 0.2309699292 * sdt2;

            ur = r1 / (r1 * r1 - 0.5 * r * r2);
            tr = -r * ur;

            g = -1.2684380046 * l + 2.6097574011 * m - 0.3413193965 * s - 1;
            g1 = -1.2684380046 * ldt1 + 2.6097574011 * mdt1 - 0.3413193965 * sdt1;
            g2 = -1.2684380046 * ldt2 + 2.6097574011 * mdt2 - 0.3413193965 * sdt2;

            ug = g1 / (g1 * g1 - 0.5 * g * g2);
            tg = -g * ug;

            b0 = -0.0041960863 * l - 0.7034186147 * m + 1.7076147010 * s - 1;
            b1 = -0.0041960863 * ldt1 - 0.7034186147 * mdt1 + 1.7076147010 * sdt1;
            b2 = -0.0041960863 * ldt2 - 0.7034186147 * mdt2 + 1.7076147010 * sdt2;

            ub = b1 / (b1 * b1 - 0.5 * b0 * b2);
            tb = -b0 * ub;

            tr = If[ur &gt;= 0, tr , 3.402823*10^38];
            tg = If[ug &gt;= 0, tg , 3.402823*10^38];
            tb = If[ub &gt;= 0, tb , 3.402823*10^38];
            t += Min[tr,tg, tb];
        ];
    ];
];
Return[t]

]
findGamutIntersection[a_,b_,L1_,C1_,L0_]:=Module[{LCcusp},
    (Find the cusp of the gamut triangle)
    LCcusp=findCusp[a,b];
    findGamutIntersection[a,b,L1,C1,L0,LCcusp]
]
HSL[h_,s_,l_]:=HSL[<|"h"->h,"s"->s,"l"->l|>]
HSL[asoc_Association][s_String]:=asoc[s]
ST[s_,t_]:=ST[<|"S"->s,"T"->t|>]
ST[asoc_Association][s_String]:=asoc[s]
toe[x_]:=With[{k1=0.206,k2=0.03},With[{k3=(1.+k1)/(1.+k2)},
    0.5 * (k3 * x - k1 + Sqrt[(k3 * x - k1) * (k3 * x - k1) + 4 * k2 * k3 * x])
]]
toeInv[x_]:=With[{k1=0.206,k2=0.03},With[{k3=(1.+k1)/(1.+k2)},
    (x * x + k1 * x) / (k3 * (x + k2))
]]
toST[cusp_LC]:=With[{l=cusp["L"],c=cusp["C"]},ST[c/l,c/(1.-l)]]
getSTmid[a_,b_]:=With[{
    s=0.11516993 + 1. / (
        +7.44778970 + 4.15901240 * b
        + a * (-2.19557347 + 1.75198401 * b
            + a * (-2.13704948 - 10.02301043 * b
                + a * (-4.24894561 + 5.38770819 * b + 4.69891013 * a
                    )))
        ),t=0.11239642 + 1. / (
        +1.61320320 - 0.68124379 * b
        + a * (+0.40370612 + 0.90148123 * b
            + a * (-0.27087943 + 0.61223990 * b
                + a * (+0.00299215 - 0.45399568 * b - 0.14661872 * a
                    )))
        )},
    ST[s,t]
]
CS[c0_,cMid_,cMax_]:=CS[<|"c0"->c0,"cMid"->cMid,"cMax"->cMax|>]
CS[asoc_Association][s_String]:=asoc[s]
getCS[l_,a_,b_]:=Module[{LCcusp,STmax,k,c0,cMid,cMax},
    LCcusp=findCusp[a,b];
    cMax=findGamutIntersection[a,b,l,1.,l,LCcusp];
    STmax=toST[LCcusp];
(*Scale factor to compensate for the curved part of gamut shape:*)
k= cMax / Min[(l * STmax[&quot;S&quot;]), (1 - l) * STmax[&quot;T&quot;]];

Block[{STmid,ca,cb},
    STmid=getSTmid[a,b];
    ca=l*STmid[&quot;S&quot;];
    cb=(1-l)*STmid[&quot;T&quot;];
    (*Use a soft minimum function, instead of a sharp triangle shape to get a smooth value for chroma.*)
    cMid=0.9 * k * Sqrt[Sqrt[1. / (1. / ca^4 + 1. / cb^4)]];
];

Block[{ca,cb},
    (*for C_0, the shape is independent of hue, so ST are constant. Values picked to roughly be the average values of ST.*)
    ca = l * 0.4;
    cb = (1. - l) * 0.8;

    (*Use a soft minimum function, instead of a sharp triangle shape to get a smooth value for chroma.*)
    c0 = Sqrt[1. / (1. / ca^2 + 1. / cb^2)];
];
Return[CS[c0,cMid,cMax]]

]
sRGBtransferFunction[a_]:=If[0.0031308>=a,12.92a,1.055(a^.4166666666666667)-0.055]
sRGBtransferFunctionInverse[a_]:=If[0.04045<a,((a+0.055)/1.055)^2.4,a/12.92]
OkhsltosRGB[hsl_HSL]:=Module[{h,s,l,a,b,cs,c0,cMid,cMax},
    h=hsl["h"];
    s=hsl["s"];
    l=hsl["l"];
If[l == 1.0,
    Return[RGB[1., 1., 1.]];
];
If[l == 0.,
    Return[RGB[0., 0., 0.]];
];

a = Cos[2.* Pi * h];
b = Sin[2.* Pi * h];
l = toeInv[l];

cs = getCS[l, a, b];
c0 = cs[&quot;c0&quot;];
cMid = cs[&quot;cMid&quot;];
cMax = cs[&quot;cMax&quot;];
Block[{mid,midInv,c,t,k0,k1,k2,rgb},
    mid = 0.8;
    midInv = 1.25;
    If[s&lt;mid,
        t = midInv * s;

        k1 = mid * c0;
        k2 = (1. - k1 / cMid);

        c = t * k1 / (1. - k2 * t);,
    (*else*)
        t = (s - mid)/ (1 - mid);

        k0 = cMid;
        k1 = (1. - mid) * cMid * cMid * midInv * midInv / c0;
        k2 = (1. - (k1) / (cMax - cMid));

        c = k0 + t * k1 / (1. - k2 * t);
    ];
    rgb=OKLABtolinearsRGB[Lab[l,c*a,c*b]];
    Return[RGB[
        sRGBtransferFunction[rgb[&quot;r&quot;]],
        sRGBtransferFunction[rgb[&quot;g&quot;]],
        sRGBtransferFunction[rgb[&quot;b&quot;]]
    ]];
];

]
ArcTan2[y_,x_]:=Piecewise[{{ArcTan[y/x],x>0},{ArcTan[y/x]+Pi,x<0&&y>=0},{ArcTan[y/x]-Pi,x<0&&y<0},{Pi/2,x<$MachineEpsilon&&y>0},{-Pi/2,x<$MachineEpsilon&&y<0},{Undefined,True}}]
sRGBtoOkhsl[rgb_RGB]:=Module[{lab,c,a,b,l,h,cs,c0,cMid,cMax},
    lab=linearsRGBtoOKLAB[RGB[
            sRGBtransferFunctionInverse[rgb["r"]],
            sRGBtransferFunctionInverse[rgb["g"]],
            sRGBtransferFunctionInverse[rgb["b"]]
    ]];
    c = Sqrt[lab["a"] * lab["a"] + lab["b"] * lab["b"]];
    a = lab["a"]/ c;
    b = lab["b"]/ c;
l=lab[&quot;L&quot;];
h = 0.5 + 0.5 * ArcTan2[-lab[&quot;b&quot;], -lab[&quot;a&quot;]] / Pi;

cs = getCS[l, a, b];
c0 = cs[&quot;c0&quot;];
cMid = cs[&quot;cMid&quot;];
cMax = cs[&quot;cMax&quot;];

(*Inverse of the interpolation in okhsl_to_srgb:*)
Block[{mid,midInv,t,s,k0,k1,k2,hsl},
    mid = 0.8;
    midInv = 1.25;
    If[c &lt; cMid,
        k1 = mid * c0;
        k2 = (1. - k1 / cMid);

        t = c / (k1 + k2 * c);
        s = t * mid;,
    (*else*)
        k0 = cMid;
        k1 = (1. - mid) * cMid * cMid * midInv * midInv / c0;
        k2 = (1. - (k1) / (cMax - cMid));

        t = (c - k0) / (k1 + k2 * (c - k0));
        s = mid + (1. - mid) * t;
    ];

    Return[HSL[h,s,toe[l]]];
];

]

where the main conversion methods are OkhsltosRGB and sRGBtoOkhsl. I adapted the C code quite literally so there are a few places where one could optimize it using some features of Wolfram Language. But coming to the point

Table[OkhsltosRGB[HSL[h, 0.5, l]] // ToColor, {l, 0, 1, 0.005}, {h, 0,
      1, 0.005}] // Reverse // ArrayPlot;
Table[OkhsltosRGB[HSL[h, 1, l]] // ToColor, {l, 0, 1, 0.005}, {h, 0,
     1, 0.005}] // Reverse // ArrayPlot;
Grid[{{%%, %}}]

which looks like the Okhsl color space referenced. Since it is quite a bit of code which I adapted mostly by hand with the help of copy&replace I can not be sure that it is working correctly in all cases. Some of the Min and Max functions might need additional code to handle non-numerical values like their C equivalents but I am not sure if those can actually happen in normal use since I have absolutely no clue whatsoever what this code actually does. If someone finds any bugs or errors please let me know and I will try to look into it.
