Adding direction arrows to discrete plot

Question

I wanted a discrete plot of $y = -\dfrac{3}{2} x$ and used

  DiscretePlot[-3/2 x, {x, -20, 20}]

I do not like the vertical lines shown in the plot but I did not see an option to get rid of them.

I then did this kludge to get rid of the vertical lines

  ListPlot[Table[{x, -((3 x)/2)}, {x, Table[x, {x, -20, 20, 1}]}]]

I want to add arrowheads showing that the plot continues upward on the left and downward on the right.

I found this answer that uses BaseStyle, but could not figure out how to use it to place arrows at each endpoint showing direction.

  ListPlot[Table[{x, -((3 x)/2)}, {x, Table[x, {x, -20, 20, 1}]}],
   BaseStyle -> Arrowheads[{-20, 30, 20, -30}],
   PlotStyle -> {Blue, Thick}] /. Line -> Arrow

I wanted something like this

Is there a simple way to do this?

The option Filling->None removes lines. From your text, it is not clear where you want to have the arrowheads. If it is at the axis add this option: AxesStyle->Directive[Arrowheads[0.005]]. If you have something else in mind, please sketch what you are after. — Alexei Boulbitch, Oct 11 '23 at 11:53

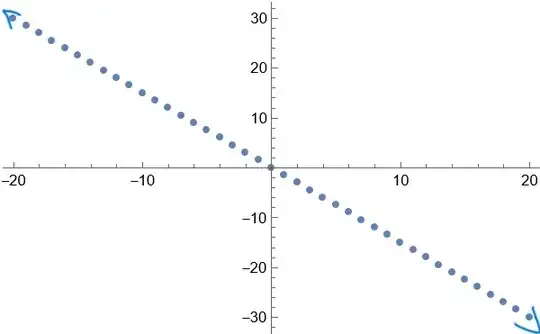

@AlexeiBoulbitch: I added an image showing the desired output. Thanks. — Moo, Oct 11 '23 at 12:00

kglr · Answer 1 · 2023-10-11T17:19:22.220

addArrowTips = ReplaceAll[Point[x_] :>
    {Point[Take[x, {2, -2}]],
     Map[Arrow] @ Extract[x, {{{2, 1}}, {{-2, -1}}}]}];

addArrowTips replaces the points at the two ends of a point list with short arrows. We can use it as the option setting for DisplayFunction .

Alternatively, we use it as addArrowTips @ DiscretePlot[...] to post-process DiscretePlot output.

Examples:

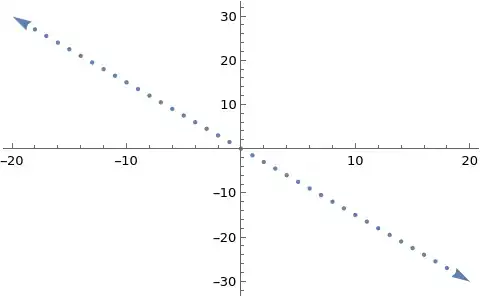

DiscretePlot[-3/2 x,
 {x, -20, 20},
 Filling -> None,
 DisplayFunction -> addArrowTips]

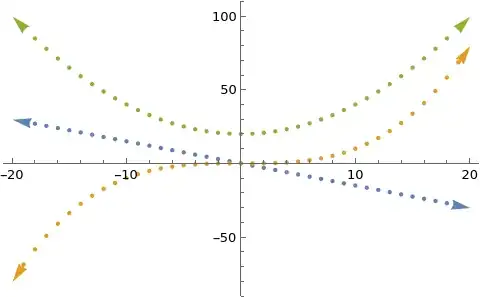

DiscretePlot[{-3/2 x, x^3/100, x^2/5 + 20},
 {x, -20, 20},
 Filling -> None,
 DisplayFunction -> addArrowTips]

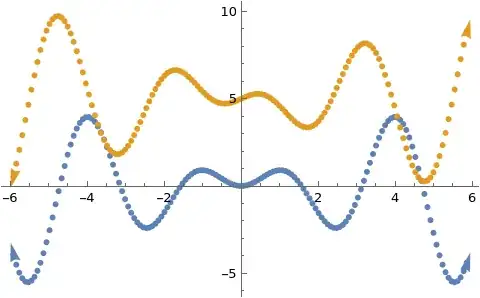

DiscretePlot[{x Sin[2 x], 5 + x Cos[2 x]},
 {x, -6, 6, Pi/40},
 Filling -> None,
 PlotStyle -> PointSize[Medium],
 DisplayFunction -> addArrowTips]

I learn so much from your posts. Thank you +1. – Moo Oct 11 '23 at 15:48 — Moo, Oct 11 '23 at 15:48
@Moo, thank you for the upvote. – kglr Oct 11 '23 at 15:49 — kglr, Oct 11 '23 at 15:49

score 5 · Accepted Answer · answered Oct 11 '23 at 12:20

5

One possible way could be:

Clear["Global`*"];
c1 = {#, -3/2 #} & /@ Range[20, 21] // N;
c2 = {#, -3/2 #} & /@ Range[-20, -21, -1] // N;
DiscretePlot[-3/2 x, {x, -20, 20}
 , Filling -> None
 , Epilog -> {
   Arrowheads[0.05], Darker@Cyan,
   Arrow[c1], Arrow[c2]
   }
 ]

answered Oct 11 '23 at 12:20

Syed

52,495
4
30
85

That works for me! Somehow I missed Filling -> None. Thanks. – Moo Oct 11 '23 at 12:37
