Zoom on a specified region of a plot

Question

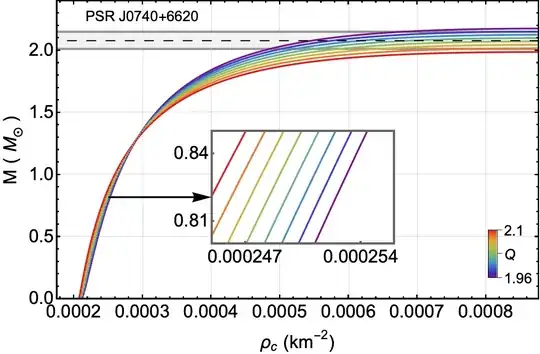

Till this date Mathematica is devoid of a dedicated function which can be used to zoom over a specified region of a plot and placed the zoomed sub-plot inside the main plot as an inset. (usually found in research articles)

At present I'm using combination of multiple chunks like:

Plot (for plotting the graphs for main range & then for zoomed sub-range)
Epilog / Prolog with Inset (for placing the sub-plot inside the main plot at a specified location)

Any update or techniques, will help us a lot.

related Q/A: Mark region of a plot by a rectangle – kglr Oct 13 '23 at 17:55 — kglr, Oct 13 '23 at 17:55

score 1 · Answer 1 · answered Oct 14 '23 at 09:04

Here is a function that I wrote long time ago that let you zoom into a graphics. You may then copy the zoomed part and inset it into your original graphics.

"Zoom2D" takes a graphics as input like e.g. "Zoom2D[g]".

Zoom2D[g0_] := Module[{g, g1, pp1, pp2}, tt = g0;
  If[! MatchQ[Head[g0], Graphics | GraphicsBox],
   CreateDialog[{TextCell["Zoom: No Input available."],
     DefaultButton[]}]; Return[];
   ];
  g = If[Head[g0] =!= Graphics,
    ReplaceAll[g0, {GraphicsBox -> Graphics}], g0];
  g = g /. NCache[_, x_] :> x;
  {pp1, pp2} = (PlotRange /. AbsoluteOptions[g]) // Transpose;
  g1 = DynamicModule[{p1 = pp1, p2 = pp2, lp = {0, 0}, aspect = 1},
    Column[{LocatorPane[Dynamic[{p1, p2}],
       Show[{g,
         Graphics[{Opacity[0.1],
           Rectangle[Dynamic[p1], Dynamic[p2]]}]},
        ImageSize -> Small]],
      EventHandler[
       Show[g, PlotRange :> Dynamic[Transpose[{p1, p2}]],
        Frame -> True, ImageSize -> Full,
        AspectRatio ->
         Dynamic[aspect]], {"MouseClicked" :> (lp =
           MousePosition["Graphics"])}], Dynamic[lp]
      , Row[{TextCell["AspectRatio fixed: "],
        Checkbox[Dynamic[aspect], {Automatic, 1}]}]}, Center]];
  CreateDocument[g1, WindowSize -> {Small, All},
   WindowTitle -> "Zoom", WindowElements -> {},
   WindowFrame -> "Palette"]

Thanks for the effort, but the effort is too much just for zooming a section. There must be some simple way or Mathematica & Co. have to do something about it. — Kumar Gaurav Sagar, Oct 21 '23 at 12:23
