No ticks on y-axis after scaling

Question

I try to scale the x-axis with ScalingFunctions options to make the curve look a line. But I dont see y-axis's ticks.

ListPlot[{Table[{(x), (x)^1.5}, {x, 100}]}, Joined -> True,
 PlotRange -> {All, All}, Frame -> True,
 BaseStyle -> {FontSize -> 18},
 PlotLegends ->
  Placed[LineLegend[
    MaTeX[#, Magnification -> 24/12] &@{"\\textrm{Approximation}",
      "\\textrm{Experiment}"}, LegendLayout -> {"Row", 1},
    LegendFunction -> Framed], {Center, Top}], ImageSize -> 1000,
 PlotMarkers -> {"*"}, ScalingFunctions -> {#^0.66 &, #^1.5 &},
 FrameLabel -> {MaTeX["B,\\,\\textrm{T}", Magnification -> 24/12],
   MaTeX["R(\\theta_{1}),\\,\\Omega", Magnification -> 24/12]}]

Not sure why ticks don't appear, but you can add them manually with FrameTicks -> {{Range[0, 1000, 200], None}, {Automatic, None}} — MelaGo, Oct 16 '23 at 21:33

score 2 · Answer 1 · answered Oct 17 '23 at 02:17

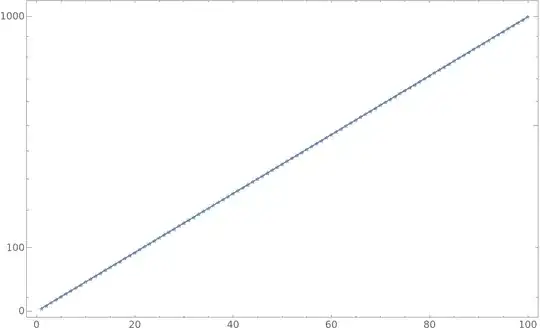

This looks like a bug.

A work-around: Add the frame ticks using Show and the ticks functions Charting`ScaledTicks and Charting`ScaledFrameTicks:

scalingfunctions = {#^(2/3) &, #^(3/2) &};
Show[ListPlot[Table[{x, x^(3/2)}, {x, 100}],
  Joined -> True,
  PlotRange -> All,
  Frame -> True,
  BaseStyle -> {FontSize -> 18},
  ImageSize -> 1000,
  PlotMarkers -> {"*"},
  ScalingFunctions -> scalingfunctions],
 FrameTicks ->
   {{ChartingScaledTicks[scalingfunctions][0, 100^(3/2)], ChartingScaledFrameTicks[scalingfunctions][1, 100^(3/2)]},
   {Automatic, Automatic}}]
