Is there a faster way to compose a large number of random Gaussians?

Question

I'm looking for a more efficient way to generate an image with a large number of randomly coloured Gaussians. Here's the code I'm using:

Remove["Global`*"]
(* Don't care about underflow of Exp *)
SetSystemOptions["CheckMachineUnderflow" -> False];
(* The minimum allowable determinant of the covariance matrix *)
detminscale = 0.1;
(* Make an association with the gaussian parameters. Reject with a
   gaussian with alpha value zero if det constraint is violated *)
MakeGaussian[c_, a_, μ, Σ] :=
 If[Det[Σ] < detminscale || !
    PositiveDefiniteMatrixQ[Σ],
  <|"c" -> {0, 0, 0}, "a" -> 0.0, "μ" -> μ,
   "Σi" -> IdentityMatrix[2]|>,
  <|"c" -> Clip[c, {0, 1}], "a" -> Clip[a, {0, 1}], "μ" -> μ,
   "Σi" -> Inverse[Σ]|>
  ]
(* Evaluates the gaussian on the WxH grid, returning a 2D grid of RGBA tuples )
cfEvalGaussian =
  Compile[{{c, _Real, 1}, {a, _Real}, {m, _Real, 1}, {s, _Real, 2}, {w, _Integer}, {h, _Integer}},
   Table[
    Append[c,
     aClip[With[{X = ({i, j} - m)}, Exp[-X.s.X]], {0, 1}]], {i, 1, h}, {j, 1, w}
    ], CompilationTarget -> "C"];
(* Evaluates the gaussian and converts to an RGBA image *)
EvalGaussian[g_, w_, h_] :=
 Image[cfEvalGaussian[g["c"], g["a"], g["μ"],
   g["Σi"], w, h], ColorSpace -> "RGB"]
(* We evaluate all gaussians in parallel, the quiet is to silence underflow warnings.
   TODO: other kernels don't respect the CheckMachineUnderflow !? *)
EvaluateAllGaussians[gs_, w_, h_] :=
 ParallelTable[Quiet@EvalGaussian[g, w, h], {g, gs}]
ComposeRGBA[i1_, i2_] := ImageCompose[Image[i1], Image[i2]]
(* Starting from black, compose all the gaussian images over each other *)
ComposeGaussians[gres_, w_, h_] :=
 Fold[ComposeRGBA, ConstantArray[{0, 0, 0, 1}, {w, h}], gres]

And this is how I'm testing it:

(* Generates a random positive semi-definite matrix, rejects bad det scales *)
randomGOMtx[scaler_] := Module[{M},
  Until[detminscale < Det[M],
   M = RandomVariate[
     GaussianOrthogonalMatrixDistribution[RandomReal[scaler], 2]]
   ];
  Return[M]
  ]
(* Test 500 random colour gaussians at 1024x1024 resolution )
With[{dmax = 1024, n = 500},
 colours = RandomReal[1, {n, 3}];
 alphas = RandomReal[{0.2, 1}, n];
 means = RandomReal[{1, dmax}, {n, 2}];
 matrices = Table[randomGOMtx[dmax1.0], n];
 gaussians =
  MapThread[MakeGaussian, {colours, alphas, means, matrices}];
 evals = EvaluateAllGaussians[gaussians, dmax, dmax];
 ComposeGaussians[evals, dmax, dmax]
 ]

I am also looking to try out the 3D case too (with Image3D), but the 2D case takes 2 minutes to produce an image, and 3d is likely to be much slower.

---

Update: This is the 3D case and it's painfully slow. I've also improved the matrix generation by using rotation matrices.

MakeGaussian[c_, a_, μ_, Σi_] :=
 <|"c" -> Clip[c, {0, 1}], "a" -> Clip[a, {0, 1}], "μ" -> μ,
  "Σi" -> Σi|>
cfEvalGaussian =
  Compile[{{c, _Real, 1}, {a, _Real}, {m, _Real, 1}, {s, _Real,
     2}, {w, _Integer}, {h, _Integer}, {d, _Integer}},
   Table[
    Append[c,
     a*Clip[With[{X = ({i, j, k} - m)}, Exp[-X . s . X]], {0,
        1}]], {i, 1, h}, {j, 1, w}, {k, 1, d}
    ], CompilationTarget -> "C"];
EvalGaussian[g_, w_, h_, d_] :=
 cfEvalGaussian[g["c"], g["a"], g["μ"], g["Σi"], w,
  h, d]
EvaluateAllGaussians[gs_, w_, h_, d_] :=
 ParallelTable[Quiet@EvalGaussian[g, w, h, d], {g, gs}]
cfComposeRGBA = Compile[{{i1, _Real, 4}, {i2, _Real, 4}},
   With[{w = Length[i1], h = Length[i1[[1]]],
     d = Length[i1[[1, 1]]]},
    Table[
     With[{c1 = i1[[i, j, k]], c2 = i2[[i, j, k]],
       a = i2[[i, j, k, 4]]},
      c2a + c1(1 - a)
      ], {i, w}, {j, h}, {k, d}]
    ], CompilationTarget -> "C"];
randomGOMtx[scaler_] :=
 With[{P = RotationMatrix[{{1, 0, 0}, RandomPoint[Sphere[]]}]},
  Inverse[P] . DiagonalMatrix[1/RandomReal[{.1, scaler}, 3]] . P]
With[{dmax = 256, n = 50},
 colours = RandomReal[1, {n, 3}];
 alphas = RandomReal[{0.2, 1}, n];
 means = RandomReal[{1, dmax}, {n, 3}];
 matrices = Table[randomGOMtx[dmax*2], n];
 gaussians =
  MapThread[MakeGaussian, {colours, alphas, means, matrices}];
 evals = EvaluateAllGaussians[gaussians, dmax, dmax, dmax];
 Image3D[ComposeGaussians[evals, dmax, dmax, dmax],
  ColorSpace -> "RGB"]
 ]

Answer 1

You use MapThread with a CompiledFunction. But CompiledFunctions have their own threading mechanism, that may also exploit parallel threads. Here is my proposition for you:

cfEvalGaussianThread =
  Compile[{{c, _Real, 1}, {a, _Real}, {m, _Real, 1}, {s, _Real, 2}, {w, _Real}, {h, _Real}},
   Block[{cnew, s11, s12, s22, r2, val},
    s11 = Compile`GetElement[s, 1, 1];
    s12 = Compile`GetElement[s, 1, 2];
    s22 = Compile`GetElement[s, 2, 2];
    Table[
     r2 = -(x s11 x + 2. x s12 y + y s22 y);
     val = Max[0., Min[a, a Exp[r2]]];
     {Compile`GetElement[c, 1], Compile`GetElement[c, 2], Compile`GetElement[c, 3], val}
     , {x, 1. - m[[1]], h - m[[1]], 1.}, {y, 1. - m[[2]], w - m[[2]], 1.}
     ]
    ],
   CompilationTarget -> "C",
   RuntimeAttributes -> {Listable},
   Parallelization -> True,
   RuntimeOptions -> "Speed"
   ];

On my machine

dataThread = cfEvalGaussianThread[
   gaussians[[All, "c"]],
   gaussians[[All, "a"]],
   gaussians[[All, "\[Mu]"]],
   gaussians[[All, "\[CapitalSigma]i"]],
   w, h
   ];

is 10 faster than

data = ParallelTable[ cfEvalGaussian[g["c"], g["a"], g["\[Mu]"], g["\[CapitalSigma]i"], w, h], {g, gaussians}];

It does not convert to Image, though. And that is the new bottleneck.

The parallelization in Compile is suboptimal, and single precision would suffice for you purpose. So a C++ implementation might be a good any idear. It is quite easy to create a function callable from Mathematica by using LibraryLink.

Answer 2

Basically the idea is to draw in vector form, then exploit FrontEnd's ability to Rasterize the result.

First we make the base primitive corresponding to a "standard Gaussian" shape.

Note 1: To reduce visual artifect, the mesh needs to be based on concentric circles.

Note 2: For as many as 500 Gaussian primitives, we probably don't need such a fine detailed mesh, so if we reduce the number of r here, we should see an extra performance boost at the final rasterization step.

basePts = Module[{r = N@Subdivide[5], Δr, Δl, n, θ0, θmin = 20 °}
            , Δr = Differences@r
            ; Δl = 2 Δr Tan[θmin]
            ; n = Ceiling[(2 π Rest[r])/Δl]
            ; θ0 = π/Most[n] // Prepend[0] // N // Accumulate
            ; MapThread[CirclePoints[{#1, #2}, #3] &, {Rest[r], θ0, n}] // Prepend[{{0., 0.}}]
            ];
baseMesh = Join @@ basePts // DelaunayMesh

Then we give each vertices correct intensity, which will later be used to color them:

baseVtx = MeshCoordinates[baseMesh];
basePoly = Polygon[MeshCells[baseMesh, 2][[;; , 1]]];
baseIntense = basePts[[;; , 1]]^2 . {1, 1} //
     Thread[Rule[#, Rescale[Exp[-5 #]]]] & //
    Nearest[#, baseVtx^2 . {1, 1}][[;; , 1]] & //
   Developer`ToPackedArray;

Now we have the primitive, which can be shown like this:

GraphicsComplex[baseVtx, basePoly,
      VertexColors -> Map[GrayLevel[1, #] &, baseIntense]
      ] //
     Graphics[#, ImageSize -> 40, Background -> Black] &

The rest work is just to geometrically transform and colorize it. For that we define two helper functions:

ClearAll[genTF, genCF]
genTF[regionsize_, scale_] := RightComposition[
        ScalingTransform@RandomPoint@Cuboid[{.1, .1}, scale {1, 1}]
        , RotationTransform@RandomReal[2 π]
        , TranslationTransform@RandomPoint@Cuboid[regionsize {-1, -1}, regionsize {1, 1}]
        ]
genCF[] :=RandomColor[RGBColor[,,_]] // Inactive[Function][
                    Append[#, RandomReal[{.1^(1/2), 1}]^2 Inactive[Slot][1]]
                    ] & // Activate

Do the plot, 50 Gaussian primitives take a bit more than 1 second:

Graphics[{
     Function[{cf, tf}
       , GraphicsComplex[tf@baseVtx, {EdgeForm[], basePoly}, VertexColors -> Map[cf, baseIntense]]
       ] // MapThread[#
        , Table[{genCF[](*GrayLevel[1,#]&*), genTF[5, 4]}, 50]//Transpose
        , 1] &
     }, Background -> Black] //
   Rasterize[#, RasterSize -> 300, Background -> Black] & //
   AbsoluteTiming

The result should look better (and probably more correct) if we consider gamma correction (for example, consider the sRGBGamma function from this answer):

---

And generating 500 Gaussian on 1024 size canvas takes only 8 seconds:

Answer 3

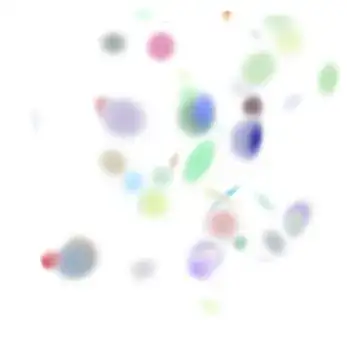

The 3D Case takes just a few seconds using OpenCL. It was a real pain getting OpenCLLink to work. I also improved the alpha blending.

Remove["Global`*"]
Needs["OpenCLLink`"];
Assert[OpenCLQ[]];
SetSystemOptions["CheckMachineUnderflow" -> False];
kernelGaussian3D = "__kernel void gaussian3D(
__global float4 * out,
__constant float4 * colour,
__constant float4 * mu,
__constant float4 * mtx,
int dim)
{
int index = get_global_id(0);
{
    int z = index % dim;
    int y = ((index - z)/dim)%dim;
    int x = (index - z - dimy)/(dimdim);
    float3 p = (float3)(x,y,z) - mu[0].xyz;
float3 r;
r.x = dot(mtx[0].xyz, p);
r.y = dot(mtx[1].xyz, p);
r.z = dot(mtx[2].xyz, p);

float a = colour[0].w * exp(-dot(p, r));

float3 c1 = out[index].xyz;
float3 c0 = colour[0].xyz;
float a1 = out[index].w;
float a0 = a * colour[0].w;

float aM = (1.f - a0)*a1+a0 + 0.00000001f;
float4 result;
result.xyz = ((1.f-a0)*a1*c1+a0*c0)/aM;
result.w = aM;
out[index] = result;

}
}";
clGaussian3D =
  OpenCLFunctionLoad[kernelGaussian3D,
   "gaussian3D", {{"Float[4]", 1, "InputOutput"}, {"Float[4]", 1,
     "Input"}, {"Float[4]", 1, "Input"}, {"Float[4]", 1, "Input"},
    "Integer32"},
   {8, 8}];
randomGOMtx[scaler_] :=
 With[{P = RotationMatrix[{{1, 0, 0}, RandomPoint[Sphere[]]}]},
  Inverse[P] . DiagonalMatrix[1/RandomReal[{.1, scaler}, 3]] . P]
MakeGaussian[c_, μ, Σi] := <|"c" -> c, "μ" -> μ, "Σi" -> Σi|>
With[{dmax = 128, n = 50},
 colours =
  RandomVariate[
   UniformDistribution[{{0, 1}, {0, 1}, {0, 1}, {0.5, 1}}], n];
 means = RandomReal[{1., dmax}, {n, 3}];
 matrices = Table[randomGOMtx[dmax*1], n];
 gaussians = MapThread[MakeGaussian, {colours, means, matrices}];
 mem = OpenCLMemoryLoad[
   Flatten@ConstantArray[{1., 1., 1., 0.}, dmax^3], "Float"];
 Do[
  clGaussian3D[mem,
    g["c"],
    Append[g["μ"], 0],
    Flatten[Append[#, 0] & /@ g["Σi"]],
    dmax, {dmax^3}];
  , {g, gaussians}];
 im3d = Image3D[
   ArrayReshape[
    OpenCLMemoryGet[mem]
    , {dmax, dmax, dmax, 4}], "Float", ColorSpace -> "RGB",
   Axes -> True];
 OpenCLMemoryUnload[mem];
 im3d
 ]

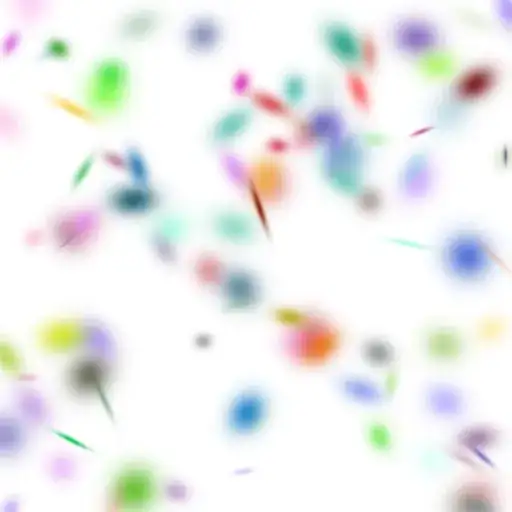

The 2D case is below. Virtually instantaneous!

kernelGaussian2D = "__kernel void gaussian2D(
__global float4 * out,
__constant float4 * colour,
__constant float2 * mu,
__constant float2 * mtx,
int dim)
{
int index = get_global_id(0);
{
    int x = index % dim;
    int y = ((index - x)/dim);
    float2 p = (float2)(x,y) - mu[0].xy;
float2 r;
r.x = dot(mtx[0].xy, p);
r.y = dot(mtx[1].xy, p);

float a = colour[0].w * exp(-dot(p, r));


float3 c1 = out[index].xyz;
float3 c0 = colour[0].xyz;
float a1 = out[index].w;
float a0 = a * colour[0].w;

float aM = (1.f - a0)*a1+a0 + 0.00000001f;
float4 result;
result.xyz = ((1.f-a0)*a1*c1+a0*c0)/aM;
result.w = aM;
out[index] = result;

}
}";
clGaussian2D =
  OpenCLFunctionLoad[kernelGaussian2D,
   "gaussian2D", {{"Float[4]", 1, "InputOutput"}, {"Float[4]", 1,
     "Input"}, {"Float[2]", 1, "Input"}, {"Float[2]", 1, "Input"},
    "Integer32"},
   {8, 8}];
MakeGaussian[c_, μ, Σi] :=
 <|"c" -> Clip[c, {0, 1}], "μ" -> μ,
  "Σi" -> Σi|>
randomGOMtx[scaler_] :=
 With[{P = RotationMatrix[{{1, 0}, RandomPoint[Circle[]]}]},
  Inverse[P] . DiagonalMatrix[1/RandomReal[{.1, scaler}, 2]] . P]
With[{dmax = 512, n = 100},
 colours =
  RandomVariate[
   UniformDistribution[{{0, 1}, {0, 1}, {0, 1}, {0.5, 1}}], n];
 means = RandomReal[{1., dmax}, {n, 2}];
 matrices = Table[randomGOMtx[dmax*1], n];
 gaussians = MapThread[MakeGaussian, {colours, means, matrices}];
 mem = OpenCLMemoryLoad[
   Flatten@ConstantArray[{1., 1., 1., 0.}, dmax^2], "Float"];
 Do[
  clGaussian2D[mem,
    g["c"],
    g["μ"],
    Flatten@g["Σi"],
    dmax, {dmax^2}];
  , {g, gaussians}];
 im = Image[
   ArrayReshape[
    OpenCLMemoryGet[mem]
    , {dmax, dmax, 4}], "Float", ColorSpace -> "RGB"];
 OpenCLMemoryUnload[mem];
 im
 ]
