How can I set default size for some characters

Question

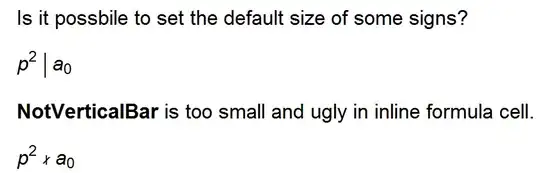

Mathematica graphics

Alt++ could adjust the size, but how to store the satisfactory size?

For example: Each time I type |, its size is (I assume) 12.

How to make its effect like adding StyleBox["|", FontSize->18]?

I don´t get the downvotes, too... seems somewhat undeserved, especially since no one commented. — Yves Klett, Jul 29 '13 at 07:23
@YvesKlett Agree, +1 to counter them :) Maybe they do not like the font size? — Kuba, Jul 29 '13 at 07:24
@YvesKlett I like typography with mathematica, and I wish more effort of wolfram in typography... — HyperGroups, Jul 29 '13 at 08:43
I don't have a font file in mind so I cannot post an answer with an example, but if you can find this glyph in a different font in an inherently larger size you could edit UnicodeFontMapping.tr as discussed here to use your new glyph automatically. — Mr.Wizard, Jul 29 '13 at 08:52

panda-34 · Answer 1 · 2013-07-29T07:52:31.193

5

SetOptions[InputNotebook[],
 InputAutoReplacements -> {"!!" -> StyleBox["\[NotVerticalBar]", 25]}]

Then just type !!

or use

SetOptions[InputNotebook[],InputAliases -> {"!!" -> StyleBox["\[NotVerticalBar]", 25]}]

to type Esc!!Esc

edited Jul 29 '13 at 07:52

answered Jul 29 '13 at 07:46

panda-34

1,268
7
8

2

There is one imperfect thing: First input !! and then add xx!! yy,xx,yy will inherit the FontSize->25. – HyperGroups Jul 29 '13 at 08:36
@HyperGroups, increasing font size through front end menu exhibits the same behavior, it's a feature of the frond end. – panda-34 Jul 29 '13 at 09:17

score 3 · Answer 2 · answered Jul 29 '13 at 07:28

3

This could be a comment but it is wrong habbit to put the answers there, if it is not what you like I will delete it:

newNV[x__] := Row[{x}, Style["\[NotVerticalBar]", 25]]

newNV[1, 2, 3, 4]

enter image description here

answered Jul 29 '13 at 07:28

Kuba

136,707
13
279
740

This is good for some programming generated formulas. Now I'm typing formulas by hand and Ctrl+9 this way. But this is also useful, so just leave it as one answer. – HyperGroups Jul 29 '13 at 08:40
@HyperGroups I agree that @panda-34 's answer is closer to your needs so I've +1ed it. :) Bun none of this two is ideal. panda-34's solution do not affect NotVerticalBar[] for example. – Kuba Jul 29 '13 at 08:48

score 2 · Answer 3 · answered Jul 29 '13 at 23:23

By forcing the character to have a certain font size you run into the problem that its relative size will be incorrect if the entire expression is subsequently styled to have a different font size.

Therefore, it would be better to scale the character with a Magnification factor instead of an absolute font size. If you're interested in typesetting, I would assume that the relevant formatting is really only needed for TraditionalForm output, so I would use the following:

Format[
  NotVerticalBar[x___], TraditionalForm] :=
 DisplayForm[
  RowBox[Riffle[ToBoxes /@ Flatten[{x}],
    StyleBox["\[NotVerticalBar]", Magnification -> 2.5]]]]

TraditionalForm[Style[a^2 \[NotVerticalBar] b, FontSize -> 18]]

small

TraditionalForm[Style[a^2 \[NotVerticalBar] b, FontSize -> 24]]

big

If you want this to be in StandardForm, you'd have to replace TraditionalForm by StandardForm everywhere above, and the result would look like this:

Style[a^2 \[NotVerticalBar] b, FontSize -> 24]

standard

This is not suitable for direct manual entry in WYSIWYG style, it's more like Kuba's approach... — Jens, Jul 29 '13 at 23:32
