Envelopment of space curves

Question

In their answers to

The respondents showed how to envelop space curves with a net-like structure. I used kglr's answer to create the following function:

Envelopment[fn_, pr_, le_, tr_, me_] :=
Show[
   ParametricPlot3D[fn[pr Pi t], {t, 0, 1},
   Axes -> False,
   Background -> Black,
   Boxed -> False,
   ImageSize -> Large,
   Lighting -> "ThreePoint",
   PlotRange -> All,
   PlotStyle -> Directive[{MaterialShading[{"Glazed", Red}], Tube[tr]}]],
ParametricPlot3D[
   v fn[pr Pi t] + (1 - v) fn[pr Pi (t + le)], {t, 0, 1}, {v, 0, 1},
   BoundaryStyle -> Directive[White, Thin],
   Mesh -> {me},
   MeshFunctions -> {#4&},
   MeshStyle -> Directive[White, Thin],
   PlotStyle -> FaceForm[]],
SphericalRegion -> True]

We use KnotData to create an anonymous function:

knot = KnotData[{3, 1}, "SpaceCurve"]

{Sin[#1] + 2 Sin[2 #1], Cos[#1] - 2 Cos[2 #1], -Sin[3 #1]} &

Envelopment[knot, 4, 0.06, 0.05, 300]

For testing purposes, I included two more curves.

noeud = {2 Cos[#] - 2 Cos[3 #], 2 Sin[#] + 2 Sin[3 #], Sin[4 #]} &;
Envelopment[noeud, 4, 0.05, 0.08, 250]

conical = {# Cos[3 #] - 1, # Sin[3 #], #} &;

Envelopment[conical, 3, 0.06, 0.2, 300]

My question

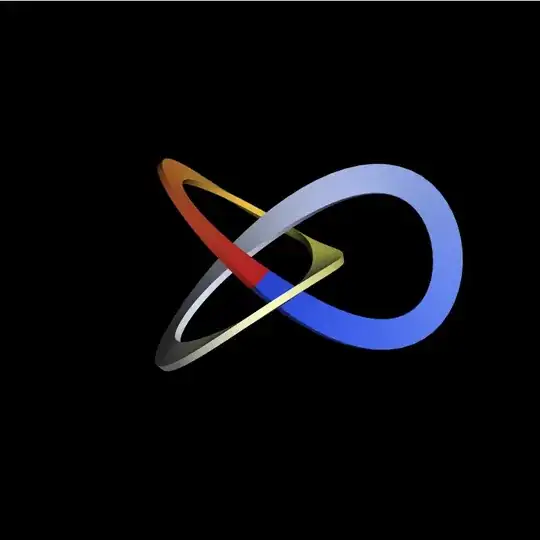

I want to replace the mesh lines with a semi-transparent coloured band following the curve path. Approximately like in this image, which I found by chance on the internet:

How can we achieve this - optionally with or without the tube?

1

Thanks for editing, @user84456 – eldo Jan 14 '24 at 17:18

kglr · Accepted Answer · 2024-01-15T08:29:33.040

ClearAll[curveToStrip, parametricStrip]

curveToStrip[f_, sw_ : 1] := f[#] +
  sw  ( 1 - #2)/ 2  (FrenetSerretSystem[f[$u], $u][[2, 2]] /. $u -> #) &

parametricStrip[opts : OptionsPattern[]][f_, sw_: 1, sc_: 2 Pi, tr_ : .05] :=
 ParametricPlot3D[
  Evaluate[curveToStrip[f, sw][sc  t, v]],
  {t, 0, 1}, {v, 0, 1},
  opts,
  BoundaryStyle -> None,
  MeshFunctions -> {#5 &} ,
  Mesh -> {{0, 1}},
  Method -> {"BoundaryOffset" -> False},
  MeshStyle -> {MaterialShading[{"Glazed", LightBlue}], Tube[tr]},
  Lighting -> "ThreePoint",
  PlotPoints -> 120,
  PlotStyle -> MaterialShading[{"Glazed", Red}],
  Axes -> False,
  Boxed -> False,
  ImageSize -> Large,
  Background -> Black,
  SphericalRegion -> True]

Examples:

knot = KnotData[{3, 1}, "SpaceCurve"];
parametricStrip[][knot]

Use the option Mesh to specify multiple mesh lines with different styles:

parametricStrip[Mesh ->
  {{{0, {MaterialShading[{"Glazed", Green}], Tube[.05]}},
   {1/2, {MaterialShading[{"Glazed", White}], Tube[.1]}},
   {1, {MaterialShading["Gold"], Tube[.05]}}}}][knot, 3/2]

parametricStrip[Mesh -> None,
  PlotStyle -> Automatic,
  ColorFunction -> (ColorData["TemperatureMap"][#4] &),
  "Extrusion" -> .5 ][knot]

Replace "Extrusion" -> .5 with PlotTheme -> "ThickSurface" to get

noeud = {2 Cos[#] - 2 Cos[3 #], 2 Sin[#] + 2 Sin[3 #], Sin[4 #]} &;
parametricStrip[PlotStyle -> MaterialShading["Gold"]][noeud]

conical = {# Cos[3 #] - 1, # Sin[3 #], #} &;
parametricStrip[ViewPoint -> {-3, -1, 1}][conical, #/2]

Thank you, kglr, a wonderful solution. Please add for future reference: Eliminate MeshStyle->..., Lighting->... and PlotStyle->... and add ColorFunction -> "TemperatureMap" and PlotTheme -> "ThickSurface" — eldo, Jan 15 '24 at 08:17

score 2 · Answer 2 · answered Jan 14 '24 at 23:49

Try:

Envelopment[fn_, pr_, le_, tr_, me_] :=
 Show[ParametricPlot3D[fn[pr Pi t], {t, 0, 1}, Axes -> False,
   Background -> Black, Boxed -> False, ImageSize -> Large,
   Lighting -> "ThreePoint", PlotRange -> All],
  ParametricPlot3D[
   v fn[pr Pi t] + (1 - v) fn[pr Pi (t + le)], {t, 0, 1}, {v, 0, 1},
   BoundaryStyle -> Directive[White, Thin],
   PlotStyle -> {Opacity[0.2], Red}], SphericalRegion -> True]
