ExpressionTree issues

Question

I can't see what I'm doing wrong in the following - I'd like to import some XML as a Tree (for structure visualisation) and convert it to an Association for querying content:

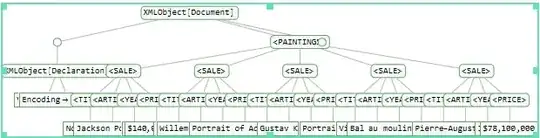

xtree = ExpressionTree[Import["ExampleData/paintings.xml"], "XML"]

Which appears to work as it should.

I then use TreeExpression to obtain an Association but I get a nested list:

TreeExpression[xtree, "Association"]

Which returns this nested list and not an Association:

    {{{"Version" -> "1.0",
   "Encoding" -> "ISO8859-1"}}, {{{"No.5, 1948"}, {"Jackson Pollock"}, {"1948"}, \
{"$140,000,000"}}, {{"Woman III"}, {"Willem de Kooning"}, {"1953"}, \
{"$137,500,000"}}, {{"Portrait of Adele Block-Bauer I"}, {"Gustav \
Klimt"}, {"1907"}, {"$135,000,000"}}, {{"Portrait of Dr. Gachet"}, \
{"Vincent van Gogh"}, {"1890"}, {"$82,500,000"}}, {{"Bal au moulin de \
la Galette, Montmartre"}, {"Pierre-Auguste Renoir"}, {"1876"}, \
{"$78,100,000"}}}, {}}

I've tried various options (e.g. Heads-> True makes no difference). Any suggestions?

$VersionNumber
14.

Answer 1

TreeExpression[ExpressionTree[expr, struct1], struct2] does not semantically transform an expression from structure struct1 to struct2, it converts expr to a Tree assuming the expression has structure struct1 and then converts that Tree to an expression assuming it has structure struct2. These assumptions don't hold generally. In particular, TreeExpression[tree, "Association"] is equivalent to TreeFold[tree, {data, children} |-> children].

TreeFold is what you want for querying a tree in a single depth-first traversal. For example:

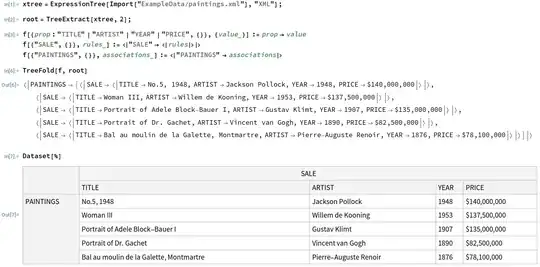

In[1]:= xtree =
  ExpressionTree[Import["ExampleData/paintings.xml"], "XML"];
In[2]:= root = TreeExtract[xtree, 2];
In[3]:= f[{prop : "TITLE" | "ARTIST" | "YEAR" | "PRICE", {}}, {value_}] := prop -> value
f[{"SALE", {}}, rules_] := <|"SALE" -> <|rules|>|>
f[{"PAINTINGS", {}}, associations_] := <|"PAINTINGS" -> associations|>
In[6]:= TreeFold[f, root]
Out[6]= <|"PAINTINGS" -> {<|"SALE" -> <|"TITLE" -> "No.5, 1948",
      "ARTIST" -> "Jackson Pollock", "YEAR" -> "1948",
      "PRICE" -> "$140,000,000"|>|>, <|"SALE" -> <|"TITLE" ->
   "Woman III", "ARTIST" -> "Willem de Kooning", "YEAR" -> "1953",
   "PRICE" -> "$137,500,000"|>|>, <|"SALE" -> <|"TITLE" ->
       "Portrait of Adele Block-Bauer I", "ARTIST" -> "Gustav Klimt",
      "YEAR" -> "1907",
      "PRICE" -> "$135,000,000"|>|>, <|"SALE" -> <|"TITLE" ->
   "Portrait of Dr. Gachet", "ARTIST" -> "Vincent van Gogh",
  "YEAR" -> "1890",
  "PRICE" -> "$82,500,000"|>|>, <|"SALE" -> <|"TITLE" ->
       "Bal au moulin de la Galette, Montmartre",
      "ARTIST" -> "Pierre-Auguste Renoir", "YEAR" -> "1876",
      "PRICE" -> "$78,100,000"|>|>}|>
In[7]:= Dataset[%]

You can likely modify this example and use other Trees functionality to query the content of the Tree directly without first converting to a Dataset, but this example shows how to convert the paintings example into associations. Note that the PAINTINGS key has a list value, since the SALE key is repeated.
