I see these around the web and would like to make them in Mathematica.
Combining them in an array is actually quite mesmerizing!

Moving Illusion

J. M.'s missing motivation
  • 124,525
  • 11
  • 401
  • 574
Nothingtoseehere
  • 4,518
  • 2
  • 30
  • 58
  • 1
    is it my eyes or do I see it spinning? This only happens when I am not looking at it directly. I bet that either The Mathematica Guidebook: Graphics or Graphica: The World Of Mathematica Graphics both by Graphics Michael Trott will have something like this ! – Nasser Aug 14 '13 at 23:21
  • @Nasser You would think so, but I did check my copy and nothing like this is posted. Weird spinning effect is due to something called simultaneous contrast. Very cool! – Nothingtoseehere Aug 14 '13 at 23:37
  • 2
    Related: http://mathematica.stackexchange.com/questions/24148/how-can-this-image-optical-illusion-be-created-with-mathematica – Michael E2 Aug 14 '13 at 23:41
  • @MichaelE2 Notice I left out the pink floyd logo? ;) Actually not related other than title. Very different problem and solution. – Nothingtoseehere Aug 14 '13 at 23:47
  • Is this image supposed to look as if it were spinning? Doesn't work for me. Must be because of vision impairment. – m_goldberg Aug 14 '13 at 23:49
  • 1
    As usual: what have you tried? What Mathematica related difficulty are you having in producing this image? – Jens Aug 14 '13 at 23:56
  • @Jens Just a question like the one Michael E2 mentions above. Tried researching it like I mentioned above and also checked demonstrations projects. Why -2 on the question but +4 on the answer? Seems odd and unfair. Please go to chat if you have more questions. – Nothingtoseehere Aug 15 '13 at 00:33
  • 2
    I didn't downvote and instead upvoted now... since apparently someone had fun wit this after all. But I also agree with @MichaelE2. – Jens Aug 15 '13 at 00:47
  • RHall, I too agree with @Michael. Please see this meta discussion for why you got a -3 on the question. This question clearly falls in point 1 and 2 of nikie's answer... – rm -rf Aug 15 '13 at 01:03
  • @rm-rf added my comments to that thanks for the link. – Nothingtoseehere Aug 15 '13 at 01:28
  • 2
    You might be interested in this blog which also animates such optical illusions. – Michael E2 Aug 15 '13 at 01:40
  • 1

3 Answers3

34

Forward Mapping

One way to do it is to create the texture for one tile and then transform repeated copies of it in a way that resembles the original illusion.

First we create the tile:

tile = Module[{KeyHole},
    KeyHole[base_] := Sequence[
      Disk[{0, 1/3} + base, 1/10], Rectangle[{-1/30, 1/15} + base, {1/30, 1/3} + base]
    ];
    Image@Rasterize@Graphics[
      {Orange, Rectangle[{0, 0}, {1, 1}],
       Blue,   Rectangle[{0, 0}, {1/2, 1/2}], Rectangle[{1/2, 1/2}, {1, 1}],
       Black, KeyHole[{0,   0}], KeyHole[{1/2, 1/2}], KeyHole[{1,   0}],
       White, KeyHole[{0, 1/2}], KeyHole[{1/2,   0}], KeyHole[{1, 1/2}]
      },
      PlotRange -> {{0, 1}, {0, 1}}
    ]
  ]

tile texture

Then we make repeated copies of it:

floortex = ImagePad[
    ImageRotate[#, Right],
    5 First@ImageDimensions[#], "Periodic"
  ] &[tile]

floor texture

For the transformation we can use an exponential mapping, which will turn the $y$-coordinate into an angle and the $x$-coordinate into an exponent for radial distance. Since the mapping is most elegantly described with complex numbers but we need to work with cartesian coordinates we can use ComplexExpand to do the work for us (which is not very hard in this case, but could be useful for trying out other mappings):

ComplexExpand[Through[{Re, Im}[ Exp[x + I y] ]]]
(* {E^x Cos[y], E^x Sin[y]} *)

Since this is so useful we wrap it in a procedure for easy reuse:

CartesianMappingFromComplexFunction[f_] := Function[{x, y},
    Evaluate@ComplexExpand@Through[{Re, Im}[f[x + I y]]]
  ]

Now we just need a way to transform our checkerboard image according to our mapping, which is exactly what ImageForwardTransformation does:

ImageForwardTransformation[
  floortex,
  {Exp[#[[1]]] Cos[#[[2]]], Exp[#[[1]]] Sin[#[[2]]]} &,
  PlotRange -> {{-1, 1}, {-1, 1}},
  DataRange -> {{-2 \[Pi], 0}, {0, 2 \[Pi]}},
  Background -> White
]

finished optical illusion

Inverse Mapping

Michael E2 pointed out another possible way, namely using the inverse mapping, so let's try that! Up to now we basically let Mathematica do a forward transform of our checkerboard into the disk shape and let it fill the holes via interpolation and throw away the points that got mapped outside of our PlotRange which is kind of wasteful.

Instead we can go the reverse route and start with the destination pixel locations and ask where they came from before undergoing that exponential mapping. Since we made the effort to generalize the procedure of getting a cartesian mapping from any complex function we now can just plug in the inverse complex function, which is the (or rather a branch of) the complex Log, and get

CartesianMappingFromComplexFunction[Log]
(* Function[{x, y}, {Log[x^2 + y^2]/2, Arg[x + I*y]}] *)

Great! Now we can use ImageTransformation with our inverse mapping

ImageTransformation[
  floortex,
  {Log[#[[1]]^2 + #[[2]]^2]/2, Arg[#[[1]] + I*#[[2]]]} &,
  PlotRange -> {{-1, 1}, {-1, 1}},
  DataRange -> {{-2 \[Pi], 0}, {-\[Pi], \[Pi]}}, Padding -> White
]

where we had to adjust the DataRange in order to coincide with the target set of Arg. Because we evenly sample the target image instead of the original checkerboard, we get much better image quality with less computation (14s vs. 19s on my machine).

To see the difference here are images from both approaches, but generated from a tile with RasterSize -> 128 and ImageResolution -> 128 given as options to Rasterize:

coarse illusion from forward transform approach

ImageForwardTransformation

coarse illusion from inverse transform approach

ImageTransformation

With ImageTransformation, we basically get antialiasing for free, which can be further customized via the Resampling option.

Thies Heidecke
  • 8,814
  • 34
  • 44
  • Very cool solution thanks! How does ComplexExpand function apply to this? I don't see it used. – Nothingtoseehere Aug 15 '13 at 00:10
  • 2
    @RHall He used ComplexExpand to simply justify to the formula he is using inside the ImageForwardTransformation. – PlatoManiac Aug 15 '13 at 00:12
  • @PlatoManiac Thanks very much! – Nothingtoseehere Aug 15 '13 at 00:14
  • 1
    @RHall This is very similar to the method of this answer to the question I said above was related, which uses a log-polar transformation to convert a regular pattern in the plane to circular pattern. – Michael E2 Aug 15 '13 at 00:15
  • @MichaelE2 Seems like it would be and I did review your solution, but it crashes MMA 9 on my Mac, and I can not test it or modify it. This one worked, and I can modify it without crashing. Thanks. – Nothingtoseehere Aug 15 '13 at 00:37
  • @RHall Thies' floortex is rather large and perhaps that's why Sum it's solution crashes. I'm not sure why. ImageTransformation (Sum it's) and ImageForwardTransformation (Thies') are basically inverse operations. I would think that if one works, so would the other. Both work in V9/Mac/16GB for me. – Michael E2 Aug 15 '13 at 01:26
  • @Thies Sorry for the chatter on your answer - I should have said, nice answer, as usual. – Michael E2 Aug 15 '13 at 11:46
  • @MichaelE2 Actually i liked that you pointed out the related question, had forgotten about that one and it was nice to compare with the inverse approach, so more chatter please :D – Thies Heidecke Aug 15 '13 at 13:50
  • 1
    @Thies @RHall Ok, then one more thing I would add is that the ImageTransformation method runs 9X faster on my machine, 6 vs. 54-55 sec. Code: LogPolar[{x_, y_}] := { Log[Sqrt[x^2 + y^2]], ArcTan[x, y]}; ImageTransformation[floortex, LogPolar, PlotRange -> {{-1, 1}, {-1, 1}}, DataRange -> {{-2 π, 0}, {-π, π}}, Padding -> White]. Cheers! :) – Michael E2 Aug 15 '13 at 17:17
  • @MichaelE2 Thanks for trying that out and some code to test right away! Gave me the motivation to add another section to show both approaches. – Thies Heidecke Aug 15 '13 at 20:39
  • Cool! Too bad I can't upvote again. – Michael E2 Aug 16 '13 at 04:00
15

I decided to take a slightly different approach. Instead of transforming an image, I thought of constructing a function that will look like the illusory figure in the OP after performing the log-polar transform. Here's what I came up with:

checkerboard[x_, y_] := Boole[EvenQ[Floor[x] - Floor[y]]]
keyholes[x_, y_] := Boole[(Mod[x - 1/2, 1] - 1/2)^2 + (Mod[y, 1] - 2/3)^2 < 1/25 ||
                          (13/30 < Mod[x - 1/2, 1] < 17/30 && 1/8 < Mod[y, 1] < 1/2)]

DensityPlot[With[{u = 32 ArcTan[x, y]/π, v = 4 Log[x^2 + y^2]},
                 (1 - keyholes[u, v]) (2 checkerboard[u, v] - 1) +
                 keyholes[u, v] (2 checkerboard[u - 1/2, v] - 1)/3],
            {x, -1, 1}, {y, -1, 1},
            ColorFunction -> (Blend[{Orange, Black, White, Blue}, #] &),
            Exclusions -> None, Frame -> False, PlotPoints -> 405,
            RegionFunction -> (#1^2 + #2^2 < 1 &)]

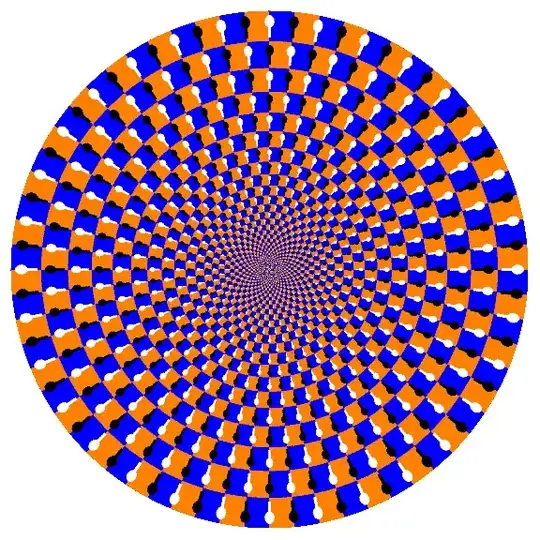

dizzy keyholes


Here is a ContourPlot[] version of a slightly less "busy-looking", but still sufficiently eye-popping illusion:

ContourPlot[With[{u = 12 ArcTan[x, y]/π, v = 2 Log[x^2 + y^2]},
                 (1 - keyholes[u, v]) (2 checkerboard[u, v] - 1) +
                 keyholes[u, v] (2 checkerboard[u - 1/2, v] - 1)/3],
            {x, -1, 1}, {y, -1, 1},
            ColorFunction -> (Blend[{Orange, Black, White, Blue}, #] &),
            ContourStyle -> None, Exclusions -> None, Frame -> False,
            PlotPoints -> 405, RegionFunction -> (#1^2 + #2^2 < 1 &)]

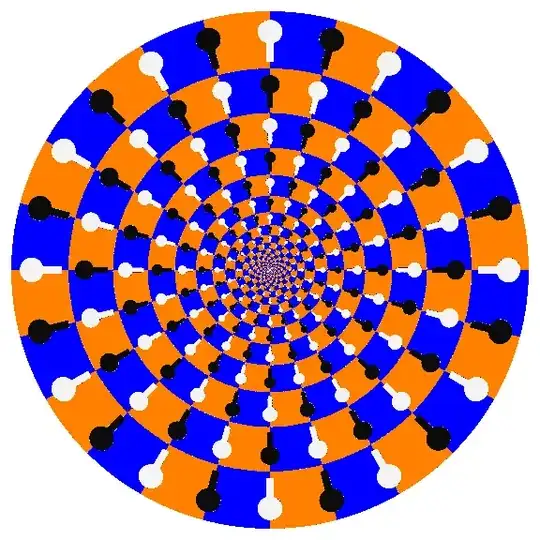

ooh, twisty...

J. M.'s missing motivation
  • 124,525
  • 11
  • 401
  • 574
4

The illusion can be created completely in vector form without using any plotting function. I'll start from the wonderfully elegant solution by Thies Heidecke.

The key change is that instead of Circle and Rectangle I use Polygon-based approximations for them:

Clear[squarePoints, KeyHole, tile]
squarePoints[{xmin_, ymin_}, {xmax_, ymax_}, n_: 6] :=
  Join[Array[{#, ymin} &, n, {xmin, xmax}], Array[{#, ymax} &, n, {xmax, xmin}]];
KeyHole[base_] :=
  Sequence[Polygon[CirclePoints[{0, 1/3} + base, 1/10, 24]],
   Polygon[base + # & /@ {{-1/30, 1/15}, {1/30, 1/15}, {1/30, 1/3}, {-1/30, 1/3}}]];
tile[base_] := {
   Orange, Polygon[{squarePoints[{0, 1/2} + base, {1/2, 1} + base],
     squarePoints[{1/2, 0} + base, {1, 1/2} + base]}],
   Blue, Polygon[{squarePoints[{0, 0} + base, {1/2, 1/2} + base],
     squarePoints[{1/2, 1/2} + base, {1, 1} + base]}],
   Black, KeyHole[{0, 0} + base], KeyHole[{1/2, 1/2} + base], KeyHole[{1, 0} + base],
   White, KeyHole[{0, 1/2} + base], KeyHole[{1/2, 0} + base], KeyHole[{1, 1/2} + base]};

Now the illusion can be generated as follows:

nCircle = 10; levels = 10;
gr = Graphics[N@Table[tile[{x, y}], {x, nCircle}, {y, levels}],
   ImageSize -> 600] /. {y_Real, x_Real} :> {E^(2 Pi x/nCircle) Cos[2 Pi y/nCircle],
    E^(2 Pi x/nCircle) Sin[2 Pi y/nCircle]}

graphics

We can turn on antialiasing using Style:

Style[%, Antialiasing -> True]

graphics
