Extract function parameters from "unevaluated" FormBox

Question

I want to get the abbreviation for a Unit from its full name eg. "Newtons" => "N".

Using TraditionalForm on Quantity will show the abbreviation and doing the following will show the code returned by TraditionalForm:

Quantity["Newtons"] // TraditionalForm // InputForm
(* =>
FormBox[TemplateBox[{1}, QuantityUnit,
   DisplayFunction ->
    (TooltipBox[StyleBox[RowBox[{#1,  ,  N}],
        ShowStringCharacters -> False], Unit: newtons] & ),
   InterpretationFunction ->
    (RowBox[{Quantity, [, RowBox[{#1, ,, "Newtons"}], ]}] & ),
   SyntaxForm -> Mod], TraditionalForm]
*)

How can I extract the N from the above without parsing the string generated by using ToString on it?

The boxes didn't copy completely; this is not valid input. Since I don't have Quantity in version 7 I cannot build your output for myself. Could you try copying again with a different method? Try copying as Input Text if you didn't use that already. — Mr.Wizard, Aug 16 '13 at 00:33

score 2 · Accepted Answer · edited Apr 13 '17 at 12:55

This answer was made possible by rm-rf's help.

This may do what you want. I shall use ToBoxes to get valid box data to work with:

boxes = ToBoxes[ Quantity["Newtons"] ];

Cases[
  boxes,
  StyleBox[RowBox[{__, label_}], "QuantityUnitTraditionalLabel"] :> label,
  -1
] // First

"\"N\""

You can use ToExpression or (for simple abbreviations) StringTake["\"N\"", {2, -2}] to strip the embedded quotation marks yielding "N".

Using the answer of this question allows you to quickly create a browser for all possible units:

Quantity["Newtons"];
units = StringReplace[Names["CalculateUnits`UnitCommonSymbols`*"],
   "CalculateUnits`UnitCommonSymbols`" ~~ r_ :> r];

Manipulate[
 ToExpression @@
  Cases[MakeBoxes[#, TraditionalForm] &@Quantity[u],
   StyleBox[RowBox[{__, label_}], "QuantityUnitTraditionalLabel"] :>
    label, -1], {{u, "Newtons"}, units}]

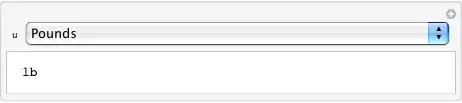

Mathematica graphics
