SparseArray row operations

Question

Given a large (very) sparse matrix, A, how can I efficiently "operate" on only the nonzeros in a given row? For example: For each row in A, generate a list of column indices that have a magnitude (absolute value) greater than a threshold, r.

My current approach is similar in spirit to a previous answer by Leonid (Efficient way to combine SparseArray objects?). I shamelessly steal his implementation of spart.

My current approach

First, let's build a random SparseArray for testing purposes.

randomSparseArray[n_Integer, r_Integer] := SparseArray[
  Table[{Random[Integer, {1, n}], Random[Integer, {1, n}]} ->RandomReal[],{r}]
,{n, n}];

A = randomSparseArray[10, 20]; (*10x10 matrix with 20 nonzeros*)

When Part is used to grab a row of A, a SparseArray representation is returned. Okay so let's rip this representation apart into its raw form using spart. For example the 3rd row of A

HoldPattern[spart[SparseArray[s___], p_]] := {s}[[p]];
raw = spart[A[[3]], 4];
(*{1, {{0, 2}, {{10}, {5}}}, {0.534313, 0.981372}}*)

And then use a combination of Part and Position to extract the column indices from raw . (here I use a threshold of 0.5)

ind = Flatten@Position[Flatten@raw[[3]],x_/;Abs[x]>0.5];
Flatten[raw[[2, 2]]][[ind]]

Wrapping this all up into a function:

thresholdIndex[A_SparseArray, r_] := Module[{raw, ind},
raw = spart[A, 4];
ind = Flatten@Position[Flatten@raw[[3]], x_ /; Abs[x] > r];
Flatten[raw[[2, 2]]][[ind]]
]

We can now use Map to hit each row of A and search for column indices for elements with magnitudes greater than say, 0.5

Map[thresholdIndex[#, .5] &, A]

This whole process feels a little roundabout. First Mathematica has to extract a new SparseArray representation of a row (is this expensive?), we then chop it into pieces in order to work on it. Is there an easier way to do this while still maintaining performance?

My other idea is to apply spart to the original matrix and work with the CSR (compressed-sparse-row) representation. But this seems to defeat the purpose of even using a SparseArray from the get go.

Sidebar

I've been starting to implement an efficient algebraic multigrid (AMG) package in Mathematica. AMG is a fast iterative method traditionally used to solve large sparse matrix equations produced from the discretization of elliptic PDEs. One of the steps in the algorithm is very similar in flavor to thresholdIndex. As a sidebar, does anyone know if a nice AMG has been implemented in Mathematica? I would like to build a tool similar to PyAMG (http://code.google.com/p/pyamg/).

Answer 1

When working with SparseArray objects you should generally try to use functions that operate on SparseArray objects without converting to normal form.

You can use UnitStep for threshold operations:

row = Range[-5, 5];
r = 2;
1 - UnitStep[r - Abs@row]

{1, 1, 1, 0, 0, 0, 0, 0, 1, 1, 1}

For position you can use reconversion with SparseArray and sparse array Properties:

SparseArray[{1, 1, 1, 0, 0, 0, 0, 0, 1, 1, 1}]["AdjacencyLists"]

{1, 2, 3, 9, 10, 11}

Though not necessary in this case (as I will show) you can Map functions directly onto a SparseArray and the rows will be converted to individual SparseArray objects for the function.

Our function:

threshPos[t_] := SparseArray[1 - UnitStep[t - Abs@#]]["AdjacencyLists"] &;

A sample array:

SeedRandom[1]
sa = RandomInteger[12, {10, 10}] /. x_ /; x > 5 -> 0 // SparseArray;

sa // MatrixForm

Map our function:

threshPos[2] /@ sa

{{2,10}, {4,8}, {7,9,10}, {1,4,5,6,8}, {1,4,6,9}, {3,4,6}, {9}, {3}, {6}, {3,4,8,9}}

In this case however we can operate on the entire array at once for increased performance, as "AdjacencyLists" conveniently returns exactly what you want:

threshPos[2] @ sa

{{2,10}, {4,8}, {7,9,10}, {1,4,5,6,8}, {1,4,6,9}, {3,4,6}, {9}, {3}, {6}, {3,4,8,9}}

Timings on a larger array:

SetAttributes[timeAvg, HoldFirst]
timeAvg[func_] := Do[If[# > 0.3, Return[#/5^i]] & @@ Timing@Do[func, {5^i}], {i, 0, 15}]

sa = RandomInteger[25, {500, 500}] /. x_ /; x > 5 -> 0 // SparseArray;

threshPos[2] /@ sa // timeAvg
threshPos[2] @ sa  // timeAvg

0.010112

0.0009232

Answer 2

I think that you on the right way, but you can do some improvements.

First of all, this matrix generation is much more efficient:

randomSparseArray[n_Integer, m_Integer] :=
 SparseArray[RandomInteger[{1, n}, {m, 2}] -> RandomReal[{0, 1}, m]];

A = randomSparseArray[10, 20];

You can extract nonzero values and their positions by

A["NonzeroValues"]
A["NonzeroPositions"]

{0.169243, 0.397281, 0.907845, 0.572137, 0.0948881, 0.603708, 0.6843, 0.375677, 0.548642, 0.896008, 0.654598, 0.59134, 0.991824, 0.37921, 0.944823, 0.431562, 0.0285837, 0.330543, 0.82086}

{{1, 1}, {1, 9}, {1, 5}, {1, 10}, {2, 1}, {2, 5}, {5, 10}, {5, 2}, {6, 10}, {6, 6}, {6, 5}, {6, 2}, {7, 10}, {7, 6}, {7, 7}, {8, 4}, {9, 5}, {9, 4}, {10, 9}}

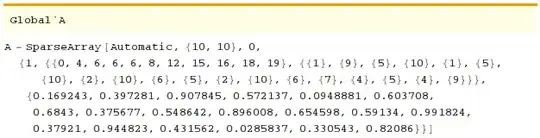

Or you can see how Mathematica stores SparseArray

?A

and use Leonid Shifrin's spart to extract this information

HoldPattern[spart[SparseArray[s___], p_]] := {s}[[p]];
spart[A, 4]

{1, {{0, 4, 6, 6, 6, 8, 12, 15, 16, 18, 19}, {{1}, {9}, {5}, {10}, {1}, {5}, {10}, {2}, {10}, {6}, {5}, \ {2}, {10}, {6}, {7}, {4}, {5}, {4}, {9}}}, {0.169243, 0.397281, 0.907845, 0.572137, 0.0948881, 0.603708, 0.6843, 0.375677, 0.548642, 0.896008, 0.654598, 0.59134, 0.991824, 0.37921, 0.944823, 0.431562, 0.0285837, 0.330543, 0.82086}}

If you want just to pick elements with large magnitudes you can simply run

B = Chop[A, 0.5];

Extracting of row can be done as follows

pos = spart[A, 4][[2, 1]];
val = spart[A, 4][[3]];
col = spart[A, 4][[2, 2, All, 1]];

rowval = val[[1 + pos[[#]] ;; pos[[# + 1]]]] &[100]; (* nonzero values in row 100 *)
rowpos = col[[1 + pos[[#]] ;; pos[[# + 1]]]] &[100]; (* nonzero positions in row 100 *)

Note, that it is much faster, then A[[100]]['NonzeroPosition'] and spart[A[[100]],4] because computation of A[[100]] takes a lot of time.

Answer 3

Perhaps defeating the point of SparseArray:

threshold[A_,u_]:=Position[Normal@A,_?(#>u&)]

will return position from SparseArray A of entries > u.
