Long text inside a grid does not word wrap

Question

If I create a simple grid with Ctrl+, and paste a long piece of text outside the boxes (I'm sure you can find some yourself), then that text does not break at the width of the window in Mathematica. Instead, you have to scroll through it with a newly appeared scroll bar at the bottom.

How can this be fixed?

As an example, you can see bellow here how the word 'also' is getting cut off. I am typing this in, it is not the output of a cell:

try1

Really, my goal is to put text besides a picture.

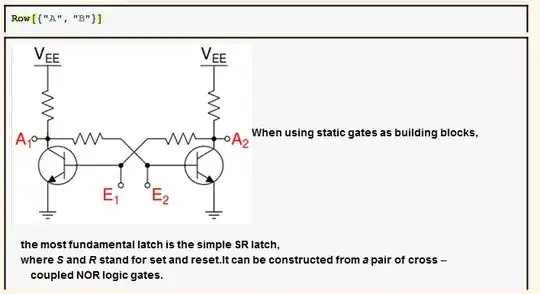

So thanks to Kuba, here is an attempt to first create a Row which should WordWrap, and then turn that output cell into a text and TraditionalForm cell, and fill it in with my content: try2 However, you can see that this breaks the text indeed, but on a new line bellow the picture, I would like to get it alongside the picture.

Something like Grid[{{"kkkkkkkk"}, {"mmmmmm"}}, Frame -> All, ItemSize -> 10]? — Dr. belisarius, Sep 19 '13 at 22:20
I just updated the question. what you say works for a grid, but this thing I think is a GridBox and it doesnt have ItemSize — Zlatko-Minev, Sep 19 '13 at 22:35
2D input is handy but you have less control, please take a look at links in this Q&A — Kuba, Sep 19 '13 at 22:38
Create Input cell and execute it, you can hide/close it just after. — Kuba, Sep 19 '13 at 22:41
@Kuba Ah, so reading that Q&A it seems that Grid does not wrap for some reason, but Row would. Now how can I get A Row, Column expression like that into my text cell? Do i have to define a new shortcut? — Zlatko-Minev, Sep 19 '13 at 22:43
@Kuba, So I tried that but it breaks the text onto a new line bellow the other cell, Ill attach a screenshot above. This is really not what I want. — Zlatko-Minev, Sep 19 '13 at 22:55

m_goldberg · Answer 1 · 2013-09-20T00:18:07.283

I don't know any easy way to do what ask for, but a not-so-easy way is to edit to open the raw cell with Ctrl+Shift+E and, in the GridBox expression you find there, add the option GridBoxItemSize.

Cell[BoxData[
  GridBox[{
    {
     RowBox[{
     "The", " ", "quick", " ", "brown", " ", "fox", " ", "jumped", " ", "over", " ", "the",
      " ", "lazy", " ", "dog"}],
     RowBox[{
     "The", " ", "quick", " ", "brown", " ", "fox", " ", "jumped", " ", "over", " ", "the",
      " ", "lazy", " ", "dog"}]},
    {
     RowBox[{
     "The", " ", "quick", " ", "brown", " ", "fox", " ", "jumped", " ", "over", " ", "the",
      " ", "lazy", " ", "dog"}],
     RowBox[{
     "The", " ", "quick", " ", "brown", " ", "fox", " ", "jumped", " ", "over", " ", "the",
     " ", "lazy", " ",  "dog"}]}
   },
     GridBoxDividers->{"Rows"->{{True}},"Columns"->{{True}}},
     GridBoxItemSize->{"Columns"->{{15}}}]],
  "Text"]//DisplayForm

Note 1: the postfix // DisplayForm is only there because I found it convenient to work this out in an input cell. Don't use it when you editing the raw cell.

Note 2: In your case, you probably want GridBoxItemSize -> {"Columns" -> {Automatic, 15}}. At least, that is the setting I would try as a first approximation.

score 2 · Accepted Answer · answered Sep 20 '13 at 00:06

2

I don't understand exactly what you want, but Grid does wrap. Here is an example:

longtext = StringJoin@RandomChoice[CharacterRange[" ", "z"], 500];
img = ImageResize[ExampleData[{"TestImage", "Lena"}], 200];
Grid[
 {{Image[img, ImageSize -> All], longtext}},
 Alignment -> {Center, Top}
]

The ImageSize->All ensures that the image doesn't get resized.

output

answered Sep 20 '13 at 00:06

ssch

16,590
2
53
88

OP is not using Grid, but grid with Ctrl+Enter/Ctrl+, then it just an array formated to GridBox. – Kuba Sep 20 '13 at 01:15
