I have an old notebook that uses the now obsolete Arrow package. For example, I have an expression containing

Arrow[{1,2}, {6,7}, HeadLength -> 0.005, HeadCenter -> 0.5]

I suppose I know how to translate this in absence of options. I should have

Arrow[{{1,2}, {6,7}}]

but how can I obtain the same arrow shape as given by the old-style options using Arrowheads?

J. M.'s missing motivation
  • 124,525
  • 11
  • 401
  • 574
enzotib
  • 1,094
  • 7
  • 20

1 Answers1

9

You can replace old arrows to new with the following pattern

arw = Arrow[pt__List, opts : OptionsPattern[]] :>
  {Arrowheads[HeadLength] /. {opts, HeadLength -> Automatic}, Arrow[{pt}]};

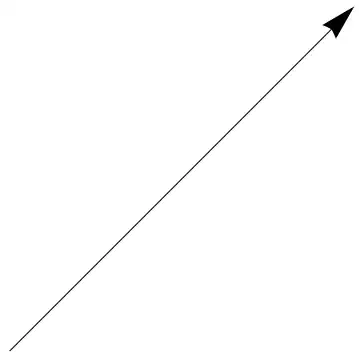

Graphics[Arrow[{1, 2}, {6, 7}, HeadLength -> 0.1]] /. arw

Graphics[{Arrowheads[0.1], Arrow[{{1, 2}, {6, 7}}]}]

enter image description here

Arrowheads specifies the length of arrowheads as a fraction of the total width of the graphic. If you need another behavior see this question.

To take into account HeadCenter and HeadWidth you can specify your own graphics for the arrowheads

arw2 = Arrow[pt__List, opts : OptionsPattern[]] :>
 {Arrowheads[{{HeadLength, Automatic,
    Graphics@{EdgeForm[Black], Polygon@{{-1, HeadWidth/2}, {0, 0},
        {-1, -HeadWidth/2}, {-HeadCenter, 0}}}}}] /.
    {opts, HeadLength -> Automatic, HeadCenter -> 1, HeadWidth -> 0.5},
  Arrow[{pt}]};

Show[Graphics[Table[Arrow[{0, 0}, {Sin[x], Cos[x]},
     HeadCenter -> x, HeadLength -> 0.1] /. arw2,
   {x, 0, 1.6, 0.2}],
  PlotRange -> {{-0.1, 1}, {-0.2, 1.1}}]]

enter image description here

It is very close to the original behavior

enter image description here
