LinkError of OpenGL

My enviroment is windows 8.1 x64, Mathematica 9.0.1, opengl 1.1

targetDirectory = "E:\\Users\\Hyper\\Documents\\OpenGL";
sourceDirectory = "E:\\Users\\Hyper\\Documents\\OpenGL\\SourceFile";
includeDirectory = {"E:\\Program Files (x86)\\Microsoft Visual Studio 10.0\\VC\\include",
"E:\\Program Files (x86)\\Microsoft Visual Studio 10.0\\VC\\include\\GL"};
libraryDirectory = {"E:\\Program Files (x86)\\Microsoft Visual Studio 10.0\\VC\\lib"};
LinkerOptions = {"opengl32.lib", "glaux.lib", "glu.lib", "glu32.lib",    "glut.lib", "glut32.lib", "opengl.lib"};

mainFile = Import[sourceDirectory <> "\opengl-test1.txt"]


(*
    #include <windows.h>

   //#include <gl/glaux.h>
   //#include <gl/gl.h>
   //#include <gl/glu.h>
  //#include <gl/glut.h>
  #include <glaux.h>
  #include <gl.h>
  #include <glu.h>
  #include <glut.h>
  #pragma comment(lib, "opengl32.lib")
  #pragma comment(lib, "glaux.lib")#pragma comment(lib, "glu.lib")
  #pragma comment(lib, "glu32.lib")
  #pragma comment(lib, "glut.lib")
  #pragma comment(lib, "glut32.lib")
  #pragma comment(lib, "opengl.lib")
  int main(int argc, char* * argv)
{auxInitDisplayMode(AUX_SINGLE|AUX_RGBA);
auxInitPosition(0,0,500,500);
auxInitWindow(argv[0]);
glClearColor(0.0,0.0,0.0,0.0);
glClear(GL_COLOR_BUFFER_BIT);
glColor3f(1.0,1.0,1.0);
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
glOrtho(-1.0,1.0,-1.0,1.0,-1.0,1.0);
glBegin(GL_POLYGON); glVertex2f(-0.5,-0.5);
glVertex2f(-0.5,0.5);
glVertex2f(0.5,0.5);
glVertex2f(0.5,-0.5);
glEnd();
glFlush();
}
*)

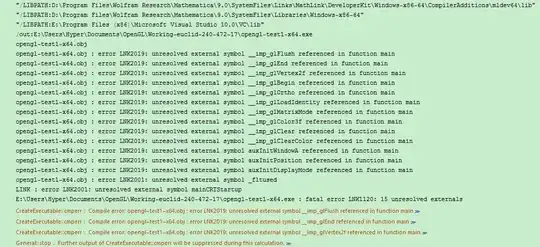

exe = CreateExecutable[mainFile, "opengl-test1-x64",   "IncludeDirectories" -> includeDirectory, "Language" -> "C++",   "LibraryDirectories" -> libraryDirectory,   "TargetDirectory" -> targetDirectory, "Debug" -> True,   "LinkerOptions" -> LinkerOptions]

enter image description here

I can build and run this little example, in VC2010-IDE enviroment, so I'm not sure where goes wrong.

Community
  • 1
HyperGroups
  • 8,619
  • 1
  • 26
  • 63
  • It looks like several include statements in your mainfile are commented out (using //). That may be the problem. – Sjoerd C. de Vries Jan 19 '14 at 16:12
  • @SjoerdC.deVries Hi, the commented out include statements are used for include dir=VC\\include, I've also include the dir=VC\\include\\GL that is "E:\\Program Files (x86)\\Microsoft Visual Studio 10.0\\VC\\include\\GL"}. Include errors maybe this :Cannot open include file: 'glaux.h': No such file or directory `; – HyperGroups Jan 20 '14 at 02:33
  • I'm sorry, but I don't understand what you're saying. Why didn't you include those header files? – Sjoerd C. de Vries Jan 20 '14 at 06:43
  • @SjoerdC.deVries Sorry, I've reformatted the code, I think now you can understand better. – HyperGroups Jan 20 '14 at 11:03
  • Did you take a look at what commands CreateExecutable is running? ("ShellCommandFunction"). I would take a look at that, figure out what's wrong with them, and start from there. – Szabolcs Jan 20 '14 at 22:25

0 Answers0
