How do I convert imported STL files to 3D images?

Question

After importing a 3D image in STL format, my possibilities in regard to "3D Volumetric Image Processing" seem rather limited. All examples are given with TIFF files. Is there a way to convert from STL to TIFF or work with an STL image in some other way?

Answer 1

Here is something quick and dirty to convert from a Graphics3D to Image3D (the second argument is sort of a quality knob, the higher the number the more slices are taken):

img3Dify[gr3d_Graphics3D, qu_] := Module[{pr, br, slices},
  pr = PlotRange /. AbsoluteOptions[gr3d, PlotRange];
  br = Map[Norm@Differences[#] &, pr];
  slices = ParallelMap[
    Image[Show[gr3d, ViewPoint -> Top,
       Lighting -> {{"Ambient", White}}, Background -> None,
       PlotRange -> {pr[[1]], pr[[2]], #}]] &,
    Partition[FindDivisions[pr[[3]], qu*2], 2, 1]];
  Image3D[slices, BoxRatios -> br, ColorFunction -> Hue]]

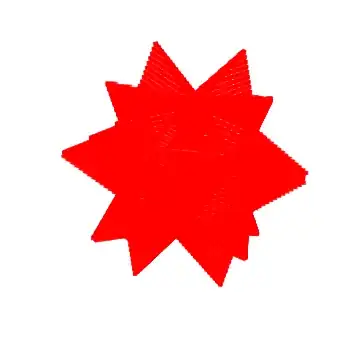

on an example image

spikey = Import["ExampleData/spikey.stl", "Graphics3D"]

img3Dify[spikey, 40]

Answer 2

I found that with Mathematica 10 one can use the region functions/distance+watershed to achieve something similar but much faster. Something along these lines can generate ~1 million voxels in a couple of seconds in my machine:

voxelify[region_?RegionQ, res_?NumericQ] :=
 Module[{f, bounds, boxsize, voxsize, data, d2},
  f = RegionDistance[region];
  bounds = RegionBounds[region];
  boxsize = -Subtract @@ # & /@ bounds;
  voxsize = Max[boxsize]/res;
  data = ParallelArray[f[{##}] &, Round[boxsize/voxsize], bounds];
  d2 = HeavisideTheta[data - voxsize];
  2 - ReplaceAll[WatershedComponents[Image3D[1 - d2]], {0 -> 2}]
  ]

And then

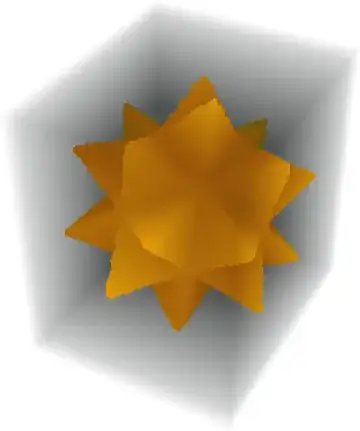

spikey = Import["ExampleData/spikey.stl", "MeshRegion"];
Image3D[voxelify[spikey, 100]]
