Inconsistency of output format in `Eigenvalue`

Question

I am bothered by the output format of the last two elements of efre. Is there a way to make these two look like the same format as the first two in efre?

Remove["Global`*"]

coe = k/m SparseArray[{{i_, i_} -> -2, {i_, j_} /; Abs[i - j] == 1 ->
      1} , {4, 4}];
efre = Sqrt[-coe // Eigenvalues] // Simplify
evec = coe // Eigenvectors // Simplify;
Column[Subscript[ω, #] & /@ Range@4 == efre // Thread,
 Spacings -> 2]

enter image description here

Replace // Simplify with //N// Simplify and they look the same. — bill s, Jul 27 '14 at 01:09
@bills Your way somehow works, but what I want is a symbolic expression not the numerical one. — Lawerance, Jul 27 '14 at 01:12

score 4 · Answer 1 · edited Apr 13 '17 at 12:55

As Bob Hanlon comments the original output without Simplify is already in the form you want:

efre = Sqrt[-coe // Eigenvalues]

{Sqrt[1/2 (5 + Sqrt[5])] Sqrt[k/m],
 Sqrt[1/2 (3 + Sqrt[5])] Sqrt[k/m],
 Sqrt[1/2 (5 - Sqrt[5])] Sqrt[k/m],
 Sqrt[1/2 (3 - Sqrt[5])] Sqrt[k/m]}

However, it may help to understand how to work with Simplify and FullSimplify.
As elsewhere^(1),(2) you need to specify a ComplexityFunction that is closer to the way you see expressions rather than Mathematica's internal one, which is roughly approximated by LeafCount.

For the sake of an example let's transform our output into a different form so that we can see that Simplify has an effect:

e2 = ExpandAll //@ efre

{Sqrt[5/2 + Sqrt[5]/2] Sqrt[k/m],
 Sqrt[3/2 + Sqrt[5]/2] Sqrt[k/m],
 Sqrt[(5 k)/m - (Sqrt[5] k)/m]/Sqrt[2],
 Sqrt[(3 k)/m - (Sqrt[5] k)/m]/Sqrt[2]}

Now we Simplify with a ComplexityFunction that is based on visual output size:

Simplify[e2, ComplexityFunction -> Composition[StringLength, ToString]]

{Sqrt[1/2 (5 + Sqrt[5])] Sqrt[k/m],
 Sqrt[1/2 (3 + Sqrt[5])] Sqrt[k/m],
 Sqrt[1/2 (5 - Sqrt[5])] Sqrt[k/m],
 Sqrt[1/2 (3 - Sqrt[5])] Sqrt[k/m]}

Since you love terse code how about the infix form of Composition (@*) introduced in V10 — RunnyKine, Jul 27 '14 at 11:38
@RunnyKine I almost used that but out of sympathy for users of old versions I did not. Good note however. — Mr.Wizard, Jul 27 '14 at 12:13
@Mr.Wizard Great illustrations, thanks! (still reading the document to fully understand these applicaitons) — Lawerance, Jul 27 '14 at 20:45

score 2 · Accepted Answer · answered Jul 27 '14 at 02:54

2

Remove["Global`*"]

coe = k/m SparseArray[{{i_, i_} -> -2, {i_, j_} /; Abs[i - j] == 1 ->
      1}, {4, 4}];
efre = Sqrt[k/m] *Simplify[Sqrt[-coe // Eigenvalues]/Sqrt[k/m]];
evec = coe // Eigenvectors // Simplify;
Column[Subscript[\[Omega], #] & /@ Range@4 == efre // Thread,
 Spacings -> 2]

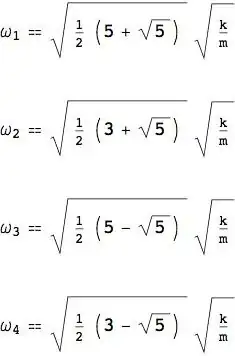

enter image description here

answered Jul 27 '14 at 02:54

Bob Hanlon

157,611
7
77
198

I guess this is the only way, although it looks a little bit weird. – Lawerance Jul 27 '14 at 02:58
1

@Lawrence - You can also just leave off the Simplify when defining efre: efre = Sqrt[-coe // Eigenvalues] – Bob Hanlon Jul 27 '14 at 03:13
Thanks a lot! That's what I was looking for! – Lawerance Jul 27 '14 at 03:15
