How to smoothly change the radius of a circle by dragging its circumference?

Question

I am attempting to set an EventHandler to change the radius of a circle by dragging on its circumference. But the response to the dragging is terribly slow. What is wrong with the code?

cnt[p_] := Return[Round /@ p];
grids[min_, max_] :=
  Join[Range[Ceiling[min], Floor[max]],
   Table[{j + 1, Lighter@Lighter@Lighter@Lighter@Blue}, {j,
     Round[min], Round[max - 1], 1}]];

DynamicModule[{pnt = {1, 1}, VPOS = {1, 1}, rad = 1},
  Dynamic@Graphics[
   {Thick,
    EventHandler[
     Circle[ cnt[pnt] , rad],
     {
      "MouseDragged" :> (
        VPOS = MousePosition["Graphics"];
          rad = EuclideanDistance[pnt, VPOS];
        )
      },
     PassEventsDown -> True
     ],
    Locator[Dynamic[pnt], None]
    },
   Axes -> True,
   GridLines -> grids,
   PlotRange -> {{-10, 10}, {-10, 10}}]
 ]

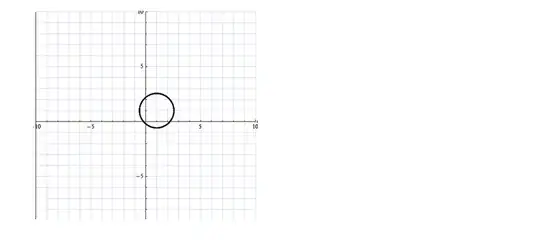

enter image description here

Yes, I am trying to test how to correctly set an EventHandler. — Putterboy, Aug 01 '14 at 10:50
Is it again the problem of out of focus? Seems it only response when the mouse is right on the top of the circumference. Is there a way of work-around? — Putterboy, Aug 01 '14 at 11:06
Can you clarify what you are trying to do? I can move the circle when I click the mouse on its center, and when I mouseclick on the circumference, the size changes. Are you interested in being able to both move the circle and change its size with the mouse? — bobthechemist, Aug 01 '14 at 11:38
@bobthechemist I think the problem is that the circle doesn't move when you move your mouth, it just moves a few milliseconds after. — Öskå, Aug 01 '14 at 11:47
@bobthechemist Yes, exactly. It is no problem to move the circle, but it is hardly to change its size. — Putterboy, Aug 01 '14 at 12:10

m_goldberg · Accepted Answer · 2014-08-03T15:01:53.900

The front end's event handling mechanism seems to have a hard time deciding which event should be passed to the locator. Therefore, I think it's best to dispense with the locator. This seems to work fairly well:

cnt[p_] := Return[Round /@ p];

grids[min_, max_] :=
  Join[
    Range[Ceiling[min], Floor[max]],
    Table[{j + 1, Lighter @ Lighter @ Lighter @ Lighter @ Blue},
      {j, Round[min], Round[max - 1], 1}]];

DynamicModule[{pnt = {1, 1}, VPOS = {1, 1}, rad = 1, d},
 EventHandler[
   Dynamic @
     Graphics[{{PointSize[Medium], Point[cnt[pnt]]}, {Thick, Circle[cnt[pnt], rad]}},
       Axes -> True,
       GridLines -> grids,
      PlotRange -> {{-10, 10}, {-10, 10}}],
  {"MouseDragged" :> (
     VPOS = MousePosition["Graphics"];
     d = EuclideanDistance[pnt, VPOS];
     If[d < 1, pnt = VPOS, rad = d])}]]

graphics

I made the center point visible as an aid to dragging the circle from grid point to grid point. I also need to point out that, when adjusting the radius, it is best to drag from just outside the circle.

It's much better than the OP's answer indeed, but moving the centre too fast catches the circle sometimes.. — Öskå, Aug 01 '14 at 14:22
@Öskå. Yeah, that's why I wrote "This seems to work fairly well" rather than "This seems to work well". It does meet the requirement of moving the circumference smoothly. — m_goldberg, Aug 01 '14 at 14:26
