Image compose coordinate problem

Question

Am I missing something or this is a bug? Why I get different results by just adding a bracket?

g1 = Graphics[{}, ImageSize -> {200, Automatic}, AspectRatio -> 2];
g2 = Graphics[Rectangle[], ImageSize -> {200, Automatic}, AspectRatio -> 1];
g3 = Graphics[Rectangle[], {ImageSize -> {200, Automatic}, AspectRatio -> 1}];

Row[{
ImageCompose[g1, g2, {0, 0}, {0, 0}],
ImageCompose[g1, g3, {0, 0}, {0, 0}],
ImageCompose[g1, Show[g2], {0, 0}, {0, 0}]}]

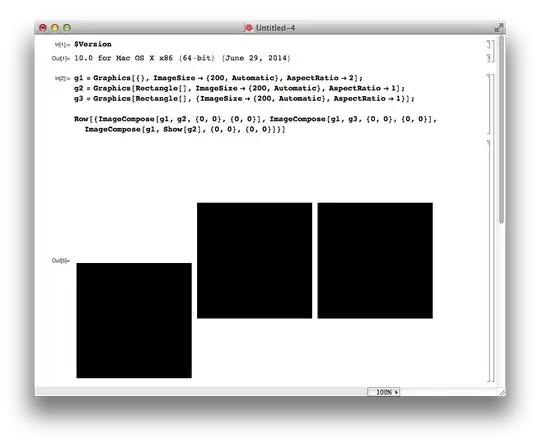

enter image description here

score 3 · Accepted Answer · answered Sep 07 '14 at 10:19

3

The discrepancy arises inside the function Image`CompositionOperationsDump`imvQ in which the ImageSize option value for the graphics is extracted using:

rdims = Cases[i, rul_Rule /; First[rul] === ImageSize];

Since there is no explicit level specification in the Cases it defaults to {1} and therefore when the ImageSize option is at a deeper level (as in your g3) it doesn't get picked up.

It's not clear to me why the code uses Cases here, rather than Options, so I am not sure if this is a bug or a deliberate choice.

answered Sep 07 '14 at 10:19

Simon Woods

84,945
8
175
324

Thanks! Could you explain a little more about how you dig it out? – xslittlegrass Sep 08 '14 at 00:41
@xslittlegrass, I used my spelunking tool from this question. – Simon Woods Sep 08 '14 at 09:58
